RD24-100o.3

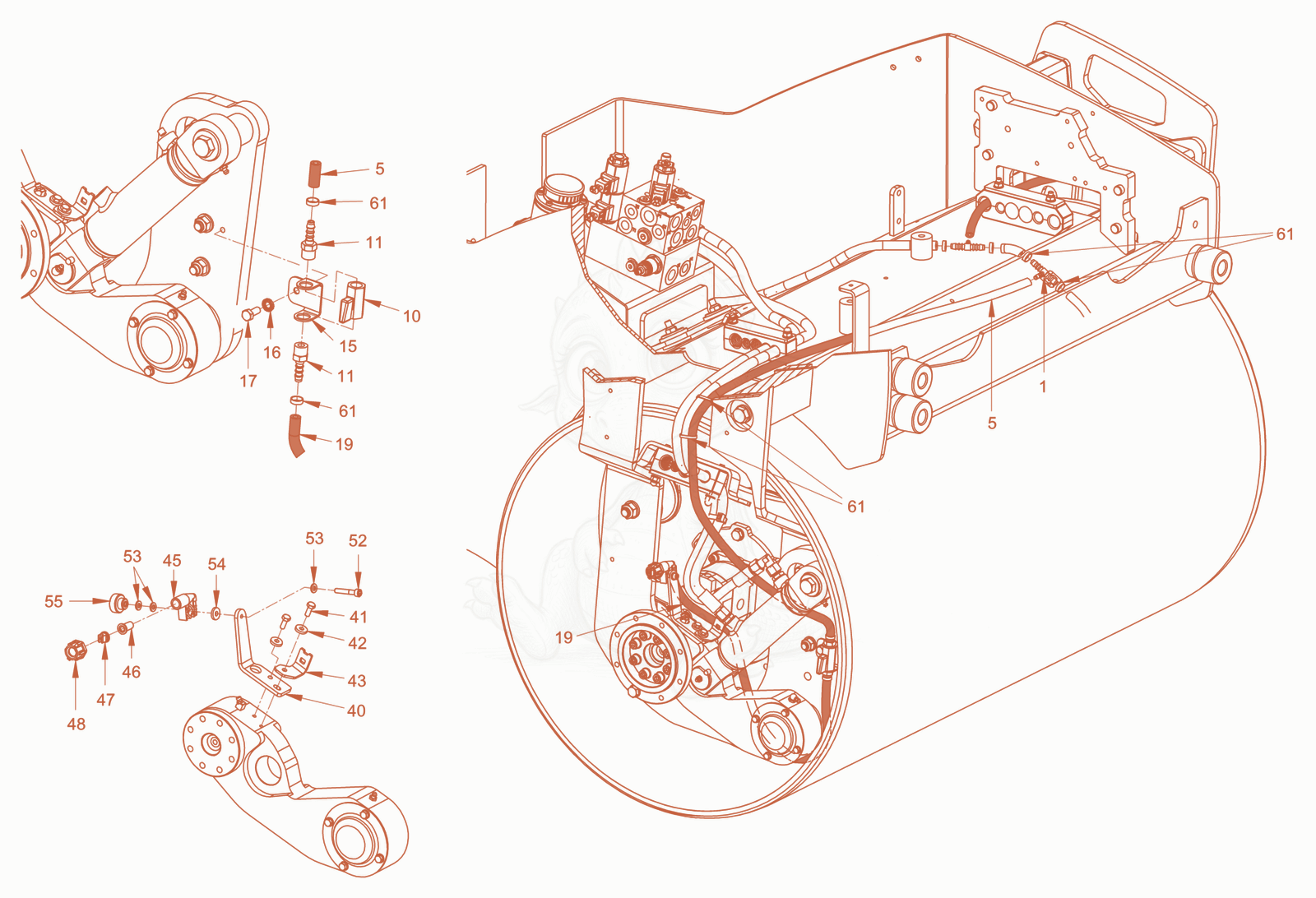

RD24-100O.3 sprinkling Diagram

Exploded parts diagram of the sprinkling of a Wacker Neuson RD24-100O.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100013422Not stocked
    T-reducing socket×1
  • 55100011832Not stocked
    Flexible tubing×2.43
  • 105100011472Not stocked
    Ball-closure cock×1
  • 115100011763Not stocked
    Straight screwed socket×2
  • 155100066904Not stocked
    holder×1
  • 165100012966
    $1.57
    Locking washer - 5100012966×1
  • 175100012517
    $1.57
    Hexagon screw - 5100012517×1
  • 195100011832Not stocked
    Flexible tubing×0.58
  • 405100016275Not stocked
    angle×1
  • 415100012600
    $1.57
    Hexagon screw - 5100012600×2
  • 425100011636
    $1.57
    Washer - 5100011636×2
  • 435100066905Not stocked
    holder×1
  • 455100011765Not stocked
    Nozzle holder×1
  • 465100011764Not stocked
    Filter×1
  • 475100011772Not stocked
    Sprinkler nozzle×1
  • 485100011766Not stocked
    Cap nut×1
  • 525100011481
    $1.49
    Cheese-head screw - 5100011481×1
  • 535100012965
    $3.01
    Locking washer - 5100012965×3
  • 545100011636
    $1.57
    Washer - 5100011636×1
  • 555100016276Not stocked
    knurled nut×1
  • 615100013573
    $1.49
    Wire fastener - 5100013573×8
