RD24-100o.3

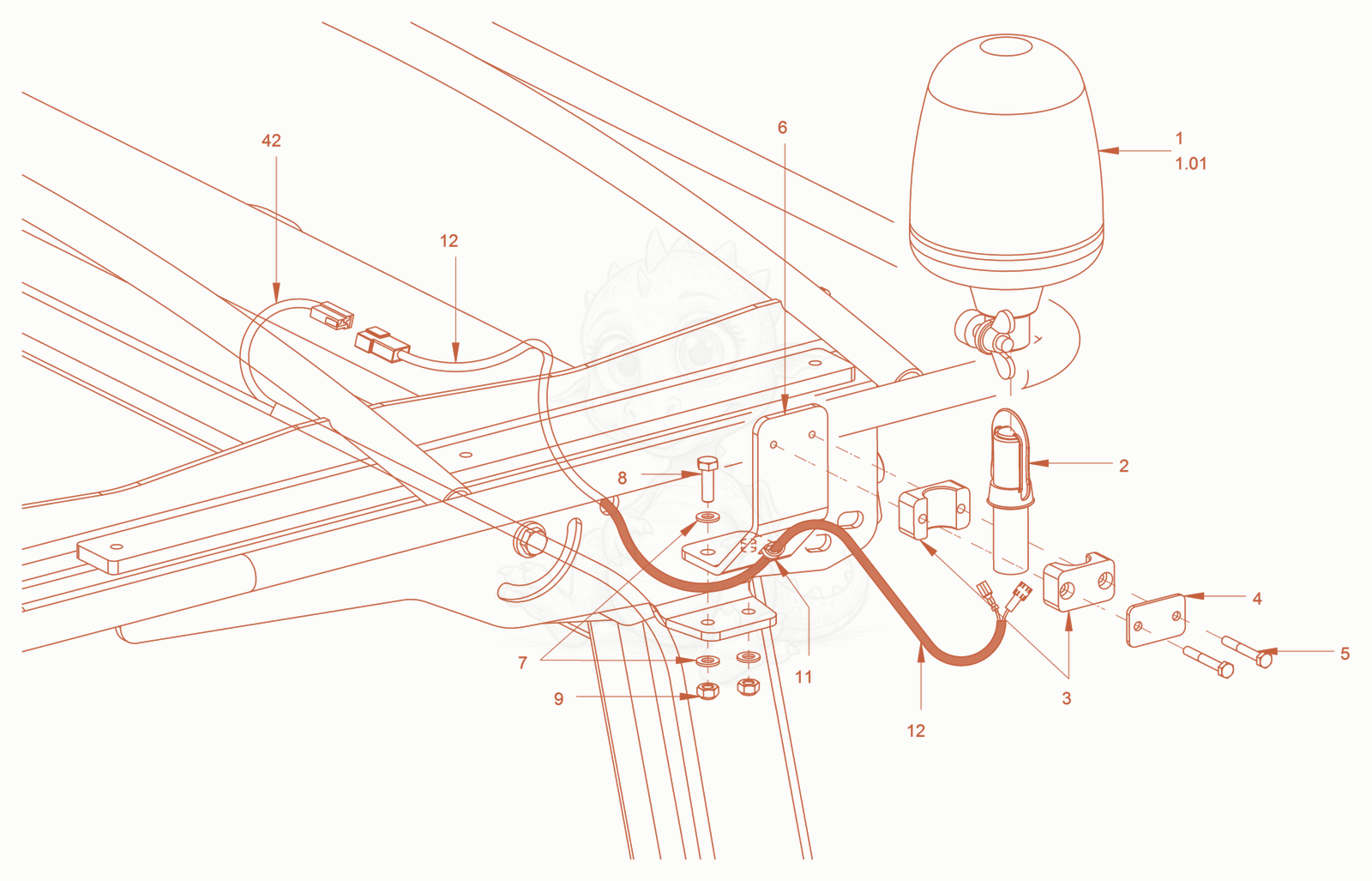

RD24-100O.3 warning light (sun roof) Diagram

Exploded parts diagram of the warning light (sun roof) of a Wacker Neuson RD24-100O.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100011941
    $243.30
    Rotary beacon - 5100011941×1
  • 15100013538
    $43.53
    Lamp - 5100013538×1
  • 25100013517
    $164.81
    Pipe - 5100013517×1
  • 35100013470
    $1.66
    Half-clip - 5100013470×2
  • 45100013465
    $1.93
    Cover plate - 5100013465×1
  • 55100013467
    $1.57
    Hexagon screw - 5100013467×2
  • 65100024896Not stocked
    holder×1
  • 75100012966
    $1.57
    Locking washer - 5100012966×4
  • 85100011613Not stocked
    Washer×2
  • 95100012546
    $1.57
    Hexagon nut - 5100012546×2
  • 115100013429
    $1.18
    Wire fastener - 5100013429×4
  • 125100024897Not stocked
    cable harness×1
  • 425100012802
    $197.47
    Wire harness (lighting) - 5100012802×1
