RD24-100o.3

RD24-100O.3 advance drive Diagram

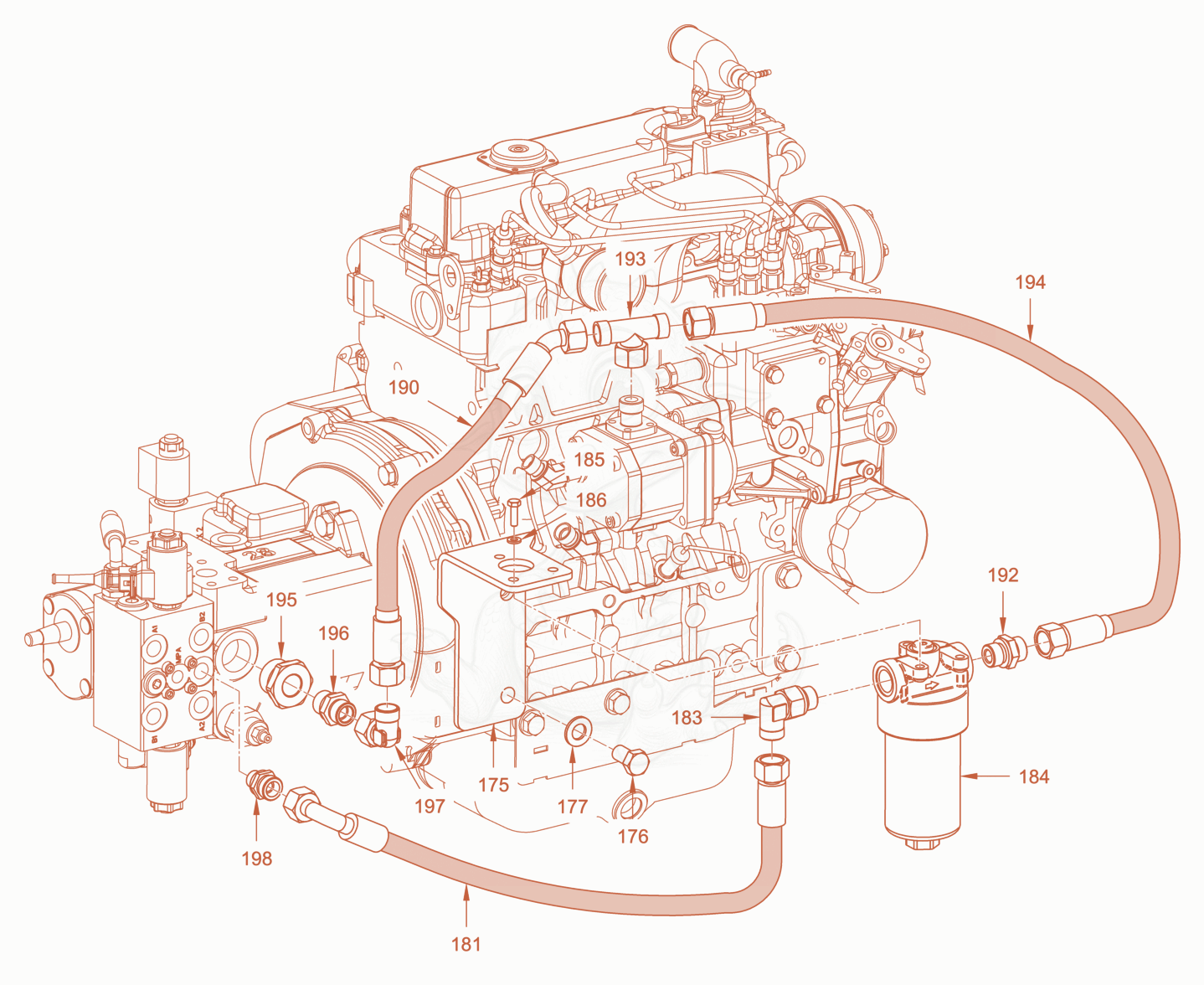

Exploded parts diagram of the advance drive of a Wacker Neuson RD24-100O.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1755100085852Not stocked
    holder×1
  • 1765100022864
    $4.10
    hexagon screw - 5100022864×2
  • 1775100012972
    $2.09
    Locking washer - 5100012972×2
  • 1815100077466Not stocked
    hose×1
  • 1835100012540
    $67.11
    Elbow adjustable - 5100012540×1
  • 1845100013361
    $78.40
    Filter - 5100013361×1
  • 1855100012517
    $1.57
    Hexagon screw - 5100012517×3
  • 1865100012966
    $1.57
    Locking washer - 5100012966×3
  • 1905100013595
    $67.00
    Flexible tubing - 5100013595×1
  • 1925100013476
    $13.09
    Straight screwed socket - 5100013476×1
  • 1935100013480
    $69.26
    T-piece adjustable - 5100013480×1
  • 1945100085853Not stocked
    hose×1
  • 1955100012091
    $98.09
    Reducing piece - 5100012091×1
  • 1965100012190
    $21.21
    Straight screwed socket - 5100012190×1
  • 1975100013483
    $43.21
    Elbow adjustable - 5100013483×1
  • 1985100013603
    $11.44
    Straight screwed socket - 5100013603×1
