RD24-100o

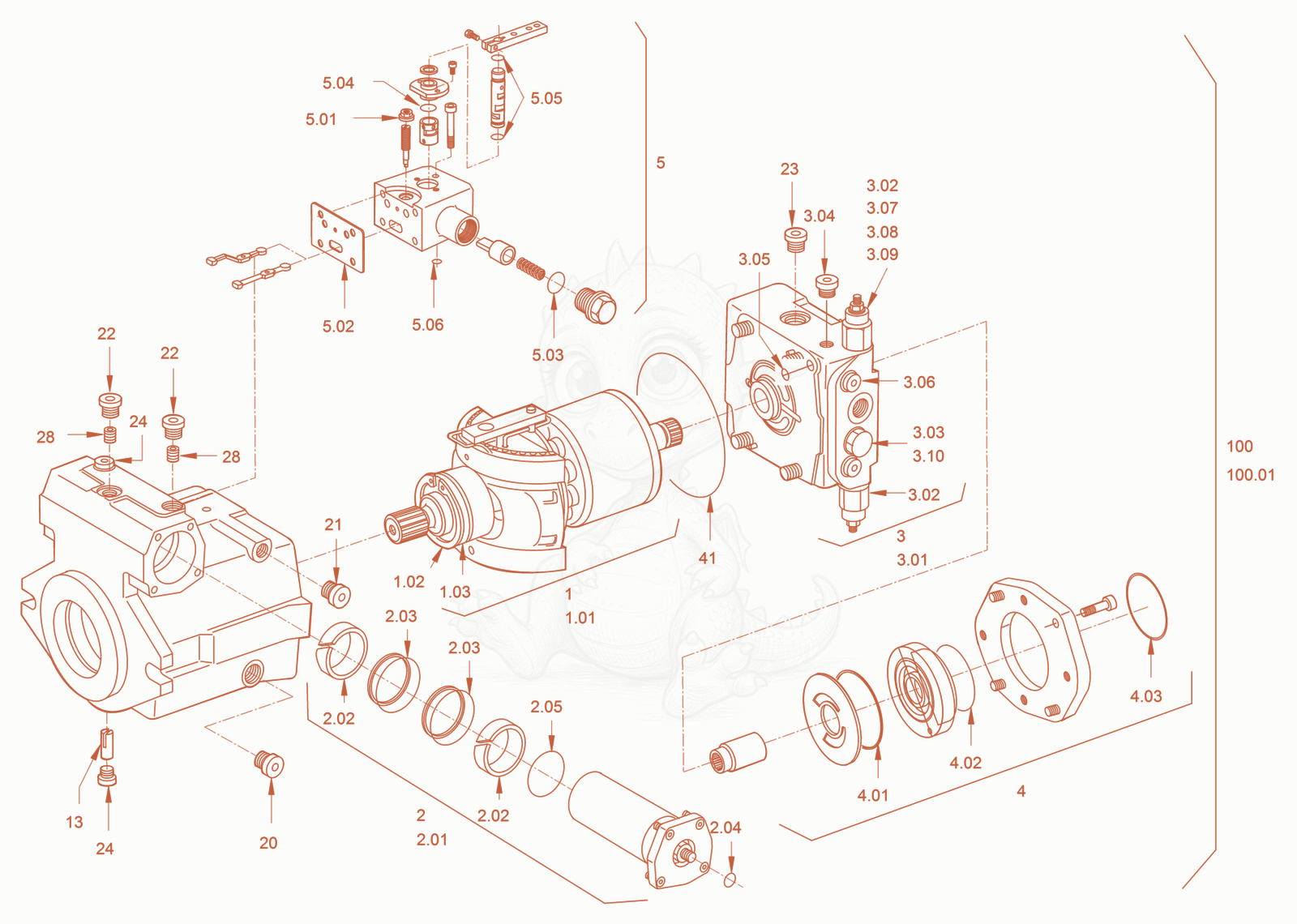

RD24-100O driving gear (var. displ. pump-drive) Diagram
- Driving gear - 5100011877×1
- Locking ring - 5100011617×2
- Shaft seal - 5100011878×1
- Set of seals - 5100012250×1
- Hydraulic regulation - 5100011568×1
- O-ring seal - 5100011447×1
- Piston ring - 5100011572×2
- Set of seals - 5100011573×2
- Set of seals - 5100012189×1
- O-ring seal - 5100013545×1
- 35100011569Not stockedConnection plate×1
- o-ring seal - 5100023228×2
- supporting ring - 5100023189×1
- O-ring seal - 5100013546×1
- Screw plug - 5100013543×2
- Set of seals - 5100012188×1
- Feeding pressure valve - 5100011614×1
- Pressure-relief valve - 5100011571×2
- Seal nut - 5100011511×1
- Screw plug - 5100011454×1
- O-ring seal - 5100011446×1
- Connection flange - 5100012394×1
- O-ring seal - 5100011745×1
- o-ring seal - 5100024320×1
- o-ring seal - 5100024321×1
- Control device - 5100011570×1
- o-ring seal - 5100023500×1
- o-ring seal - 5100023499×1
- Seal nut - 5100013547×1
- O-ring seal - 5100013544×2
- Seal - 5100012541×1
- O-ring seal - 5100011448×1
- 135100023206Not stockedPin×1
- Screw plug - 5100011452×1
- Screw plug - 5100011453×1
- Screw plug - 5100013543×3
- Screw plug - 5100011743×1
- Screw plug - 5100011454×3
- Valve - 5100011521×2
- O-ring seal - 5100013515×1
- variable displac. pump (drive) - 5100024301×1
- Set of seals - 5100012395×1
