RD24-100o

RD24-100O canopies and covers Diagram

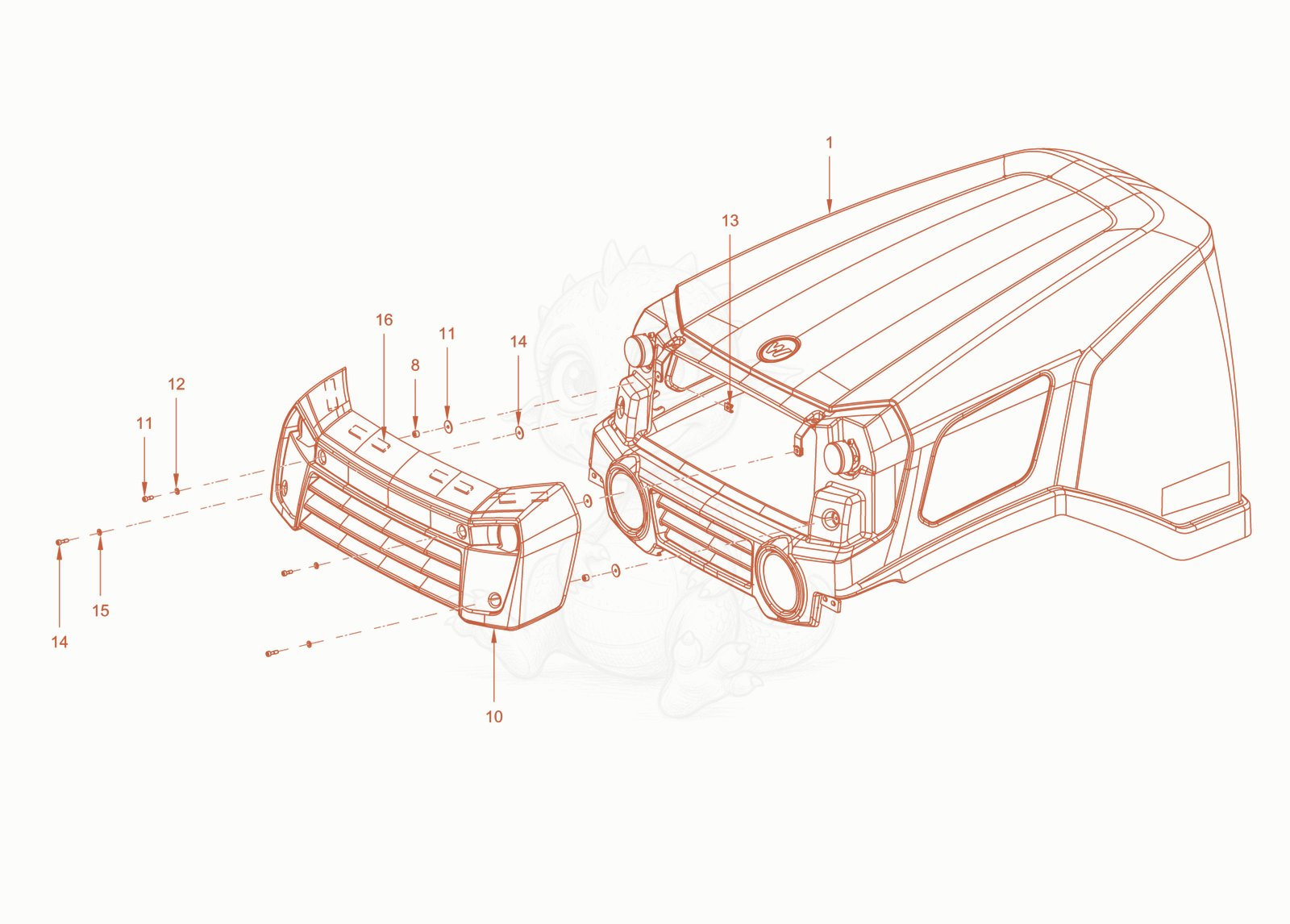

Exploded parts diagram of the canopies and covers of a Wacker Neuson RD24-100O, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100016197
    $9,942.94
    engine hood - 5100016197×1
  • 85100011652
    $3.88
    Bushing - 5100011652×2
  • 105100016198
    $625.50
    Covering Part 5100016198×1
  • 105100066862
    $522.59
    covering part - 5100066862×1
  • 115100016199
    $17.28
    cheese-head screw - 5100016199Unknown×2
  • 115100066865Not stocked
    cheese-head screw×2
  • 125100013523
    $1.57
    Washer - 5100013523×2
  • 135100011544
    $6.72
    Clip nut - 5100011544×2
  • 145100016199
    $17.28
    cheese-head screw - 5100016199×2
  • 155100013523
    $1.57
    Washer - 5100013523×2
  • 165100013644
    $5.90
    Rubber profile - 5100013644×0.5
