RD24-100o DPF

RD24-100ODPF scraper Diagram

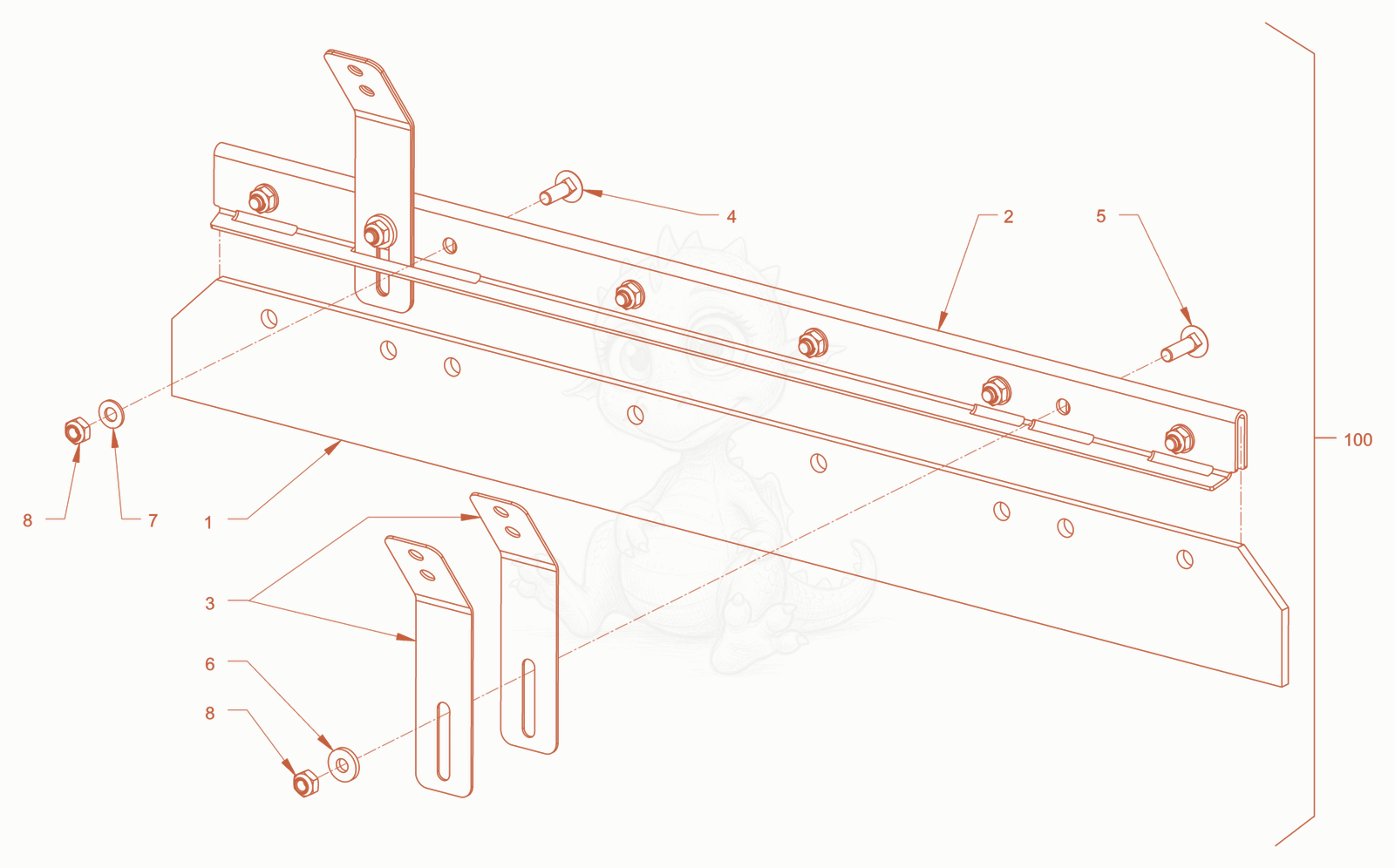

Exploded parts diagram of the scraper of a Wacker Neuson RD24-100ODPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100011805
    $155.62
    Plastic scraper - 5100011805×1
  • 25100012045
    $220.66
    Metal plate - 5100012045×1
  • 35100016513Not stocked
    bracket×4
  • 45100012085
    $3.15
    Mushroom head screw - 5100012085×6
  • 55100011584
    $2.88
    Mushroom head screw - 5100011584×2
  • 65100013521
    $1.49
    Washer - 5100013521×2
  • 75100013521
    $1.49
    Washer - 5100013521×6
  • 85100012547
    $1.49
    Hexagon nut - 5100012547×8
  • 1005100016511Not stocked
    Scraper×1
