RD27-120, ROLLER

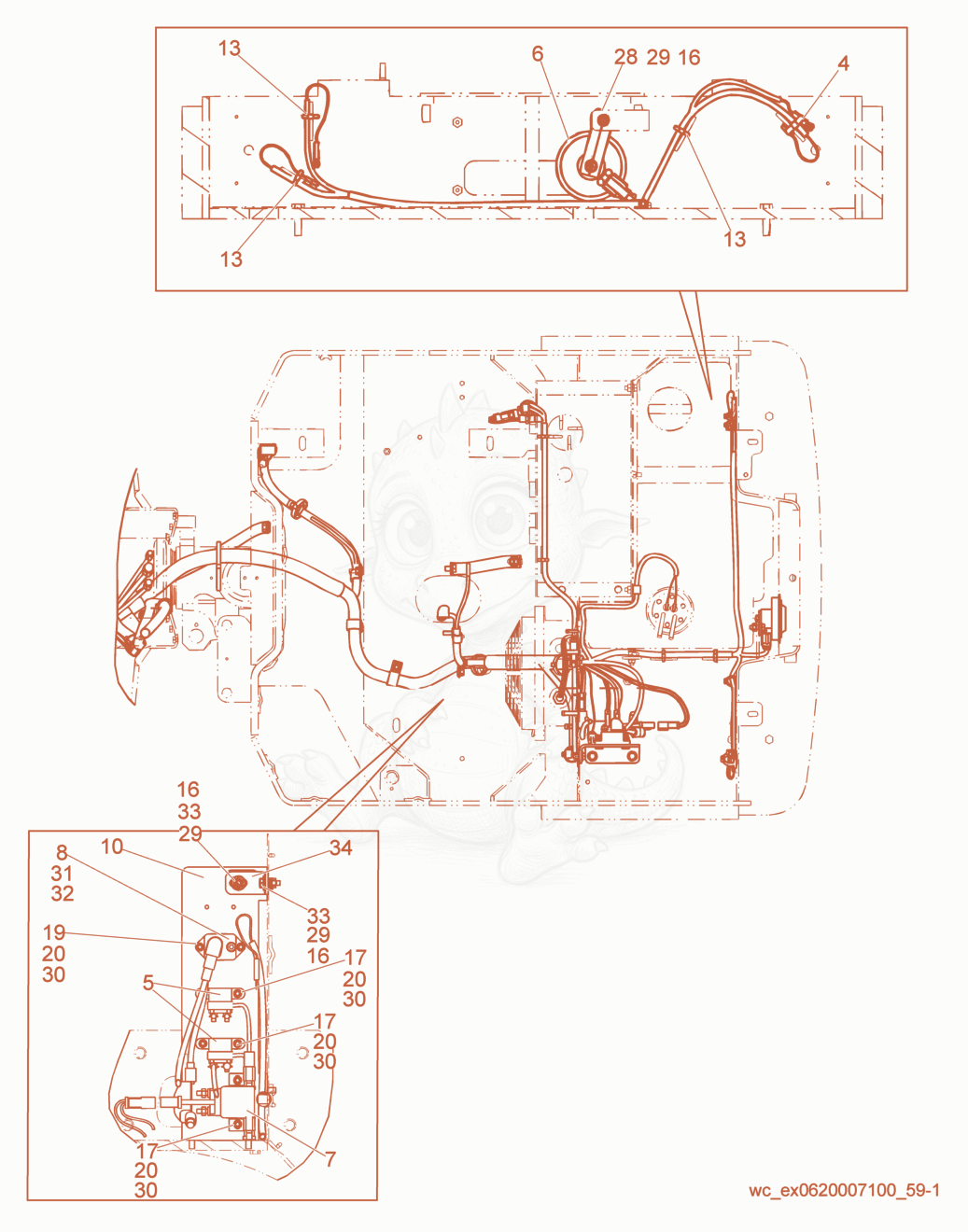

RD27-120 Wiring Diagram- Engine Start-Relay Diagram
- STRAP-MOUNTING - 5000161969×1
- SWITCH-STARTER RELAY - 5000161590×2
- HORN-12 VDC - 5000161720×1
- SWITCH-MAIN POWER - 5000161728×1
- Breaker - 5000161734×1
- X-5200020192 BRACKET-SWITCH,RELAY - 5000161782×1
- STRAP-MOUNTING - 5000161879×3
- NUT M8 X 1.25 - 5000161895×3
- BOLT M6 X 1 - 5000161896×4
- BOLT M6 X 1 - 5000161929×2
- LOCKNUT M6 X 1 - 5000161930×8
- washer - 5000162024×2
- BOLT M8 X 1.25 - 5000162029×3
- washer - 5000162058×8
- NUT 1/4-28 - 5000162388×2
- washer - 5000162022×2
- washer - 5000161907×2
- plate - 5000174236×1
