RD27 Tandem Roller

RD27-120 Steering Diagram

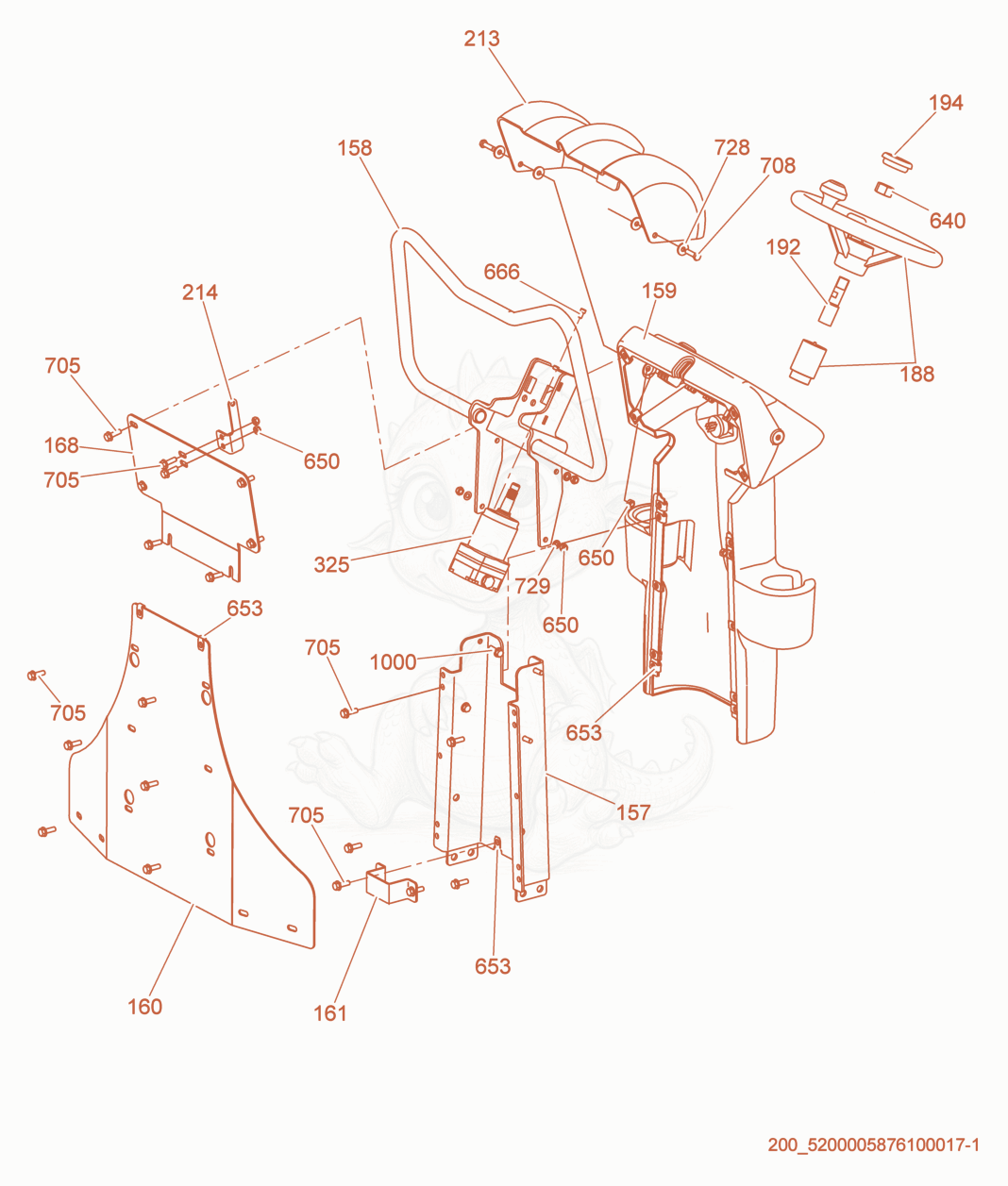

Exploded parts diagram of the Steering of a Wacker Neuson RD27-120, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1575200003041
    $96.98
    Bracket-Column P-5000112007 - 5200003041×1
  • 1585200003047
    $164.82
    STEERING WELDMENT P-5000112007 - 5200003047×1
  • 1595200003048
    $234.94
    COLUMN-DISPLAY,RD27 - 5200003048×1
  • 1605200002415
    $59.28
    PLATE-SHIELD COLUMN P-5000112006 - 5200002415×1
  • 1615200003061
    $15.07
    Clamp-Column,Lift P-5000176420 - 5200003061×1
  • 1685200003042
    $209.24
    Plate-Shield Column P-5000112006 - 5200003042×1
  • 1885000174977
    $109.78
    WHEEL-STEERING,ASSY - 5000174977×1
  • 1925200006131
    $26.28
    SHAFT-STEERING,M16 X M20 - 5200006131×1
  • 1945000165407
    $3.44
    CAP-STEERING WHEEL - 5000165407×1
  • 2135200003060
    $246.46
    Cover-Vandal - 5200003060×1
  • 2145200005870
    $10.20
    BRACKET-PAD LOCK P-5000112007 - 5200005870×1
  • 3255200002435
    $1,287.40
    Valve-Steering w/column - 5200002435×1
  • 6405000176303
    $0.75
    NUT M20,HEX,8.8,ZINC PLATED - 5000176303×1
  • 6505000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×8
  • 6535000110969
    $0.65
    NUT-LOCK,M8 CLIP - 5000110969×21
  • 7085000011456
    $0.29
    SCREW M8 X 30 HX.HD. - 5000011456×2
  • 7285000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×4
  • 7295000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×4
  • 10005000163947
    $0.26
    SCREW M8X25 HX FL HD,BL ZN 8.8 - 5000163947×4
