RD27 Tandem Roller

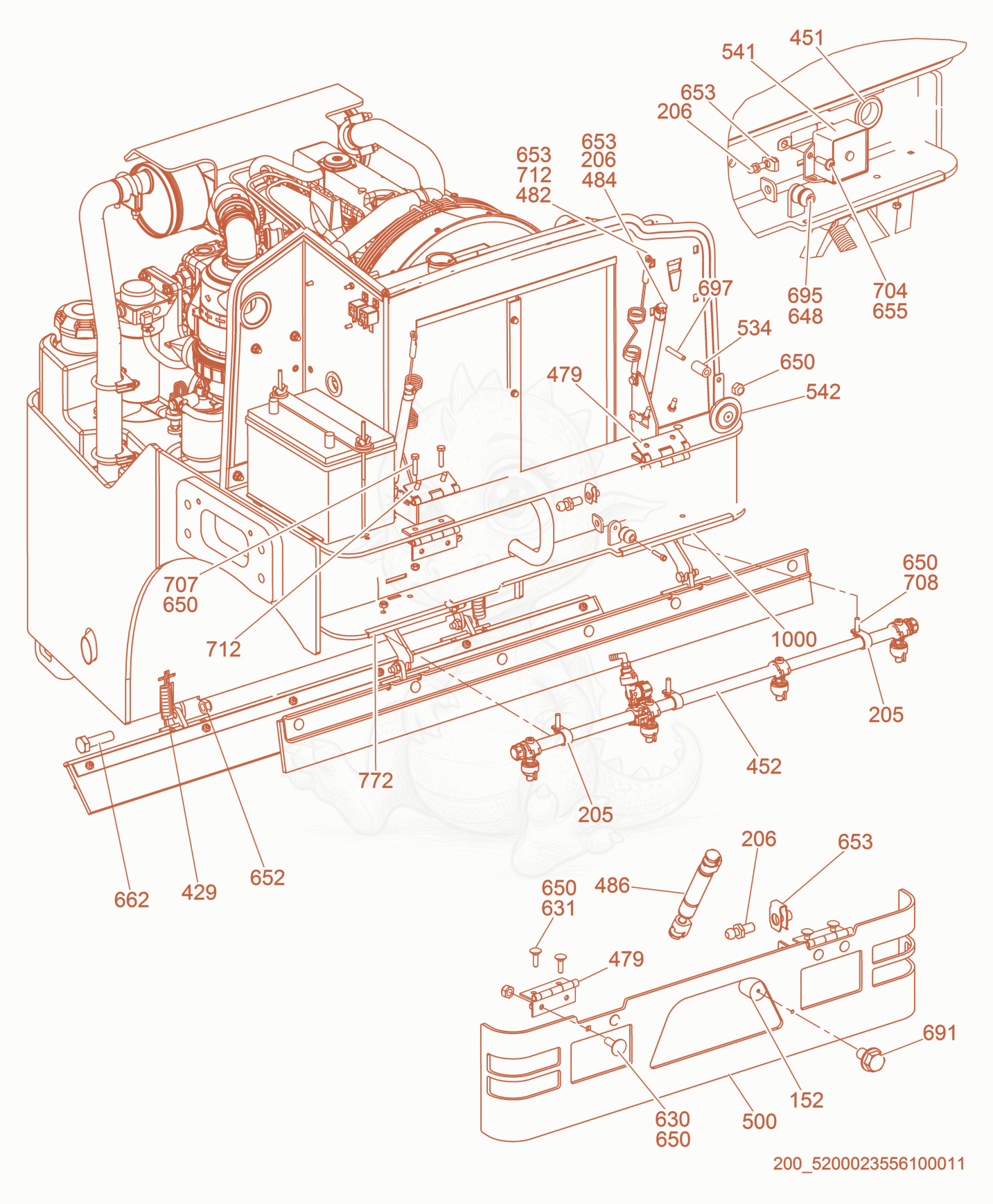

RD27-120 Front Frame Bumper Diagram

Exploded parts diagram of the Front Frame Bumper of a Wacker Neuson RD27-120, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1525000111536
    $13.04
    LATCH-DOOR - 5000111536×1
  • 2055000110458
    $0.65
    CLAMP-TUBE CLIP - 5000110458×3
  • 2065000155125
    $1.16
    STUD-BALL 10 x M8 - 5000155125×4
  • 4295000164491
    $15.61
    Spring - 5000164491×4
  • 4515200002715
    $2.63
    Grommet-1.25IDx1.937ODX.312GW - 5200002715×1
  • 4525200002401
    $37.04
    TUBE-SPRAYBAR, AL - 5200002401×1
  • 4795000163439
    $16.68
    HINGE-HOOD,GRAY RAL 7043 - 5000163439×2
  • 4825200007264
    $18.17
    CABLE-LANYARD - 5200007264×2
  • 4845200007261
    $50.46
    CYLINDER-GAS SPRING - 5200007261×2
  • 4865200002420
    $28.14
    CYLINDER-GAS SPRING - 5200002420×2
  • 5005200021398Not stocked
    Front frame bumper×1
  • 5345000164963
    $6.26
    SPACER-HORN MOUNT P-5000112007 - 5000164963×1
  • 5415000078352
    $106.85
    ALARM-BACK UP - 5000078352×1
  • 5425000164748
    $15.61
    HORN-VIBRATION,12V,340 HZ - 5000164748×1
  • 6265000118955
    $0.76
    Bolt-Carriage M6x20-4.6,Blk EP3 - 5000118955×4
  • 6305000163950
    $0.56
    Bolt-Carriage M8x25-8.8,Blk EP3 - 5000163950×4
  • 6315000160299
    $1.54
    BOLT-CARRIAGE,M8 X 30,8.8,ZINC - 5000160299×4
  • 6465000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×4
  • 6485000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×5
  • 6505000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×12
  • 6525000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×4
  • 6535000110969
    $0.65
    NUT-LOCK,M8 CLIP - 5000110969×6
  • 6555200002421
    $0.99
    NUT-CLIP,M8 X 1/4 THK - 5200002421×2
  • 6585000153421
    $0.07
    SCREW M4 X 14 HEX.HD. - 5000153421×4
  • 6625000011438
    $0.58
    SCREW M10 X 35 HX.HD. - 5000011438×4
  • 6915000073164
    $0.42
    SCREW M6 X 10,HX.HD,SER.FLG - 5000073164×1
  • 6955000011549
    $0.14
    SCREW M6 X 30 SOC.HD. - 5000011549×1
  • 6975000011344
    $0.48
    SCREW M8 X 55 HX.HD. - 5000011344×1
  • 7045000163946
    $0.33
    SCREW M8X25 BTN HD BL ZN 10.9 - 5000163946×2
  • 7075000011340
    $0.50
    SCREW M8 X 35 HX.HD. - 5000011340×4
  • 7085000011456
    $0.29
    SCREW M8 X 30 HX.HD. - 5000011456×3
  • 7125000119211
    $0.37
    SCREW M8X20 W/THDLK,202 - 5000119211×6
  • 7725200016030Not stocked
    Seal-trim×1
  • 10005200016030Not stocked
    Seal-trim×1
