RD27 Tandem Roller

RD27-120 Scraper/Spray Pump Diagram

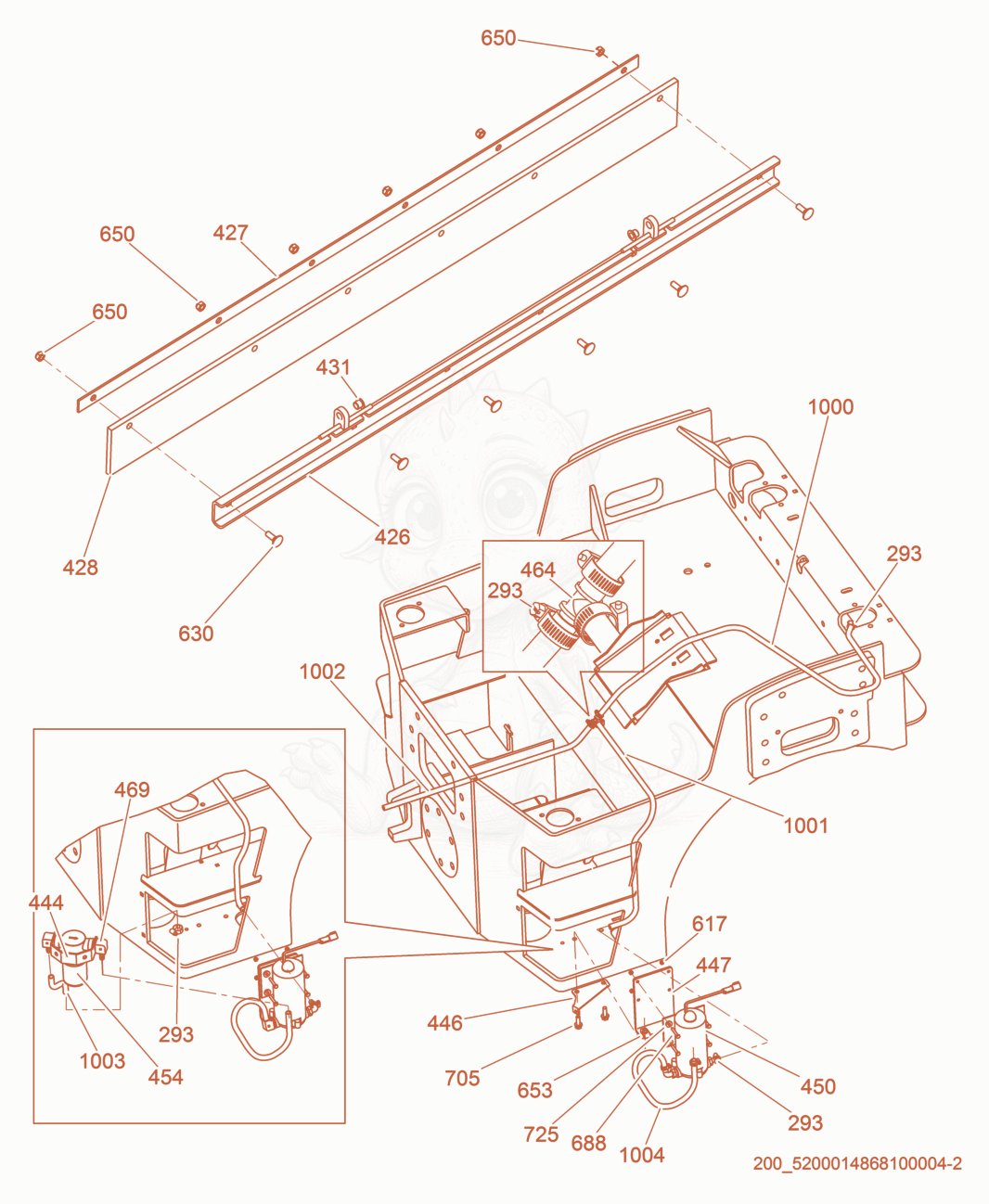

Exploded parts diagram of the Scraper/Spray Pump of a Wacker Neuson RD27-120, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2935000028707
    $0.67
    CLAMP-THREADED,.21-.63 - 5000028707×13
  • 4265200002072
    $977.20
    MOUNT-SCRAPER,WIDE,1200MM P-5000176420 - 5200002072×1
  • 4275200002065
    $17.49
    PLATE-STRIP,SCRAPER,1200MM P-5000176420 - 5200002065×1
  • 4285200002064
    $169.50
    SCRAPER-BLADE,1200MM - 5200002064×1
  • 4315000164538
    $0.90
    BUSHING-SCRAPER - 5000164538×2
  • 4445200006622
    $253.51
    Bracket-Strainer Mount P-5000176420 - 5200006622×1
  • 4465200011062Not stocked
    Cap×1
  • 4475200007317
    $317.61
    BRACKET-WATER PUMP P-5000176420 - 5200007317×1
  • 4505200010551Not stocked
    Water pump cpl.×1
  • 4545200006654
    $75.13
    Filter-Water Strainer - 5200006654×1
  • 4585200018331Not stocked
    Water hose×1
  • 4645000155331
    $3.77
    FITTING-TEE - 5000155331×1
  • 4695200006664
    $33.70
    Fitting-1/2 Male NPT to 3/8 Hose Barb - 5200006664×2
  • 6175000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×4
  • 6305000163950
    $0.56
    Bolt-Carriage M8x25-8.8,Blk EP3 - 5000163950×6
  • 6505000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×6
  • 6535000110969
    $0.65
    NUT-LOCK,M8 CLIP - 5000110969×2
  • 6595000153280
    $0.53
    SCREW M4 X 14,10.9,BK OX - 5000153280×2
  • 6885000154898
    $0.20
    SCREW M5 X 30 HX HD,BLK - 5000154898×4
  • 7055000163947
    $0.26
    SCREW M8X25 HX FL HD,BL ZN 8.8 - 5000163947×2
  • 7255000010372
    $0.03
    WASHER B5.3 FLAT - 5000010372×4
  • 10005200016022Not stocked
    Hose-blue PVC×1
  • 10015200016023Not stocked
    Hose-blue PVC×1
  • 10025200016021Not stocked
    Hose-blue PVC×1
  • 10035200016028Not stocked
    Hose-push on×1
  • 10045200016027Not stocked
    Hose-push on×1
