RD27-120o

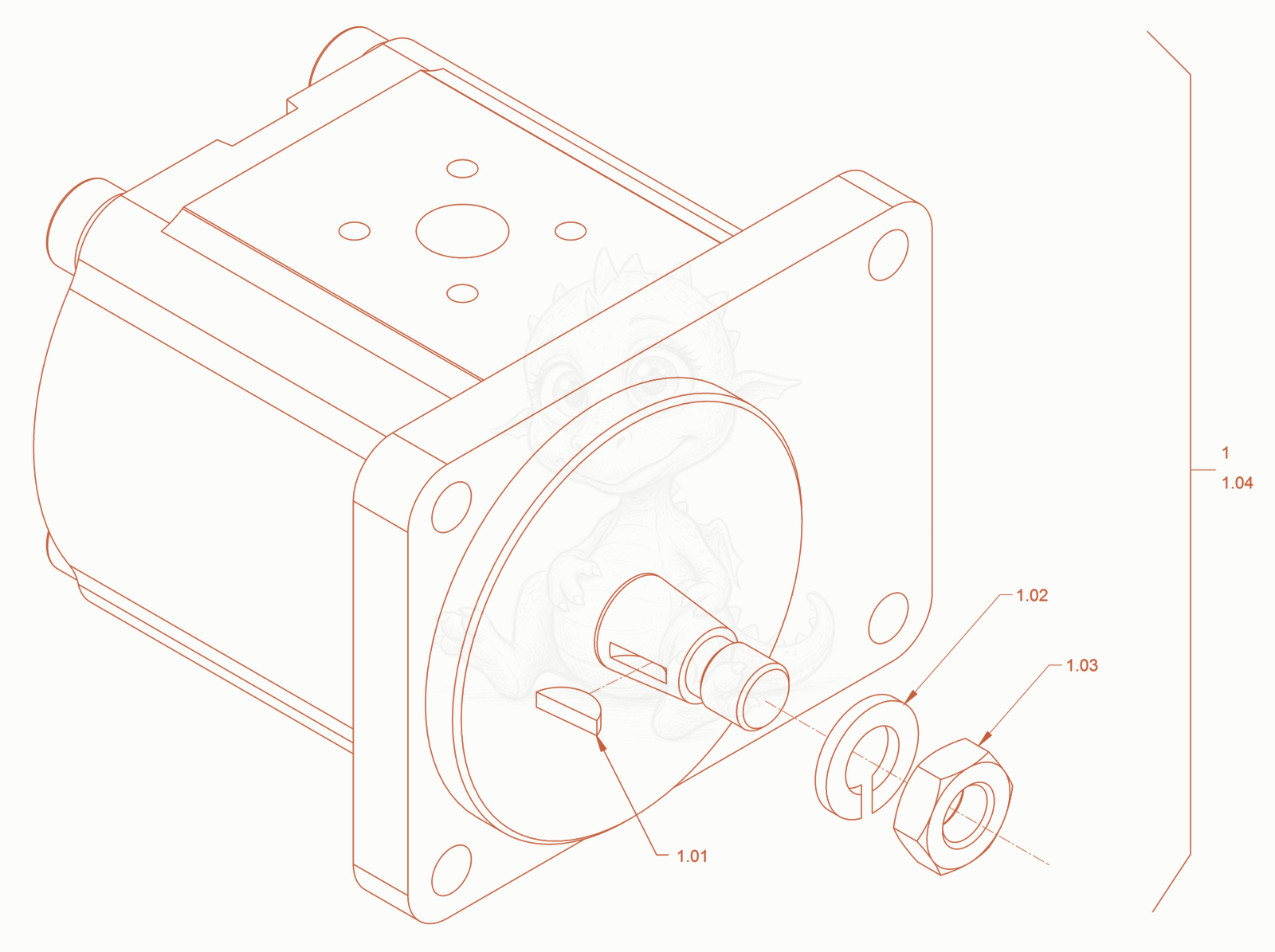

RD27-120O.3 constant motor (oscillation drive) Diagram

Exploded parts diagram of the constant motor (oscillation drive) of a Wacker Neuson RD27-120O.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100013446
    $22.11
    Disk spring - 5100013446Unknown×1
  • 15100065348Not stocked
    set of seals×1
  • 15100012944
    $2.23
    Spring ring - 5100012944Unknown×1
  • 15100013376
    $1,125.70
    Gear motor - 5100013376Unknown×1
  • 15100016272Not stocked
    hexagon nut×1
