RD27-120 O Tandem Roller

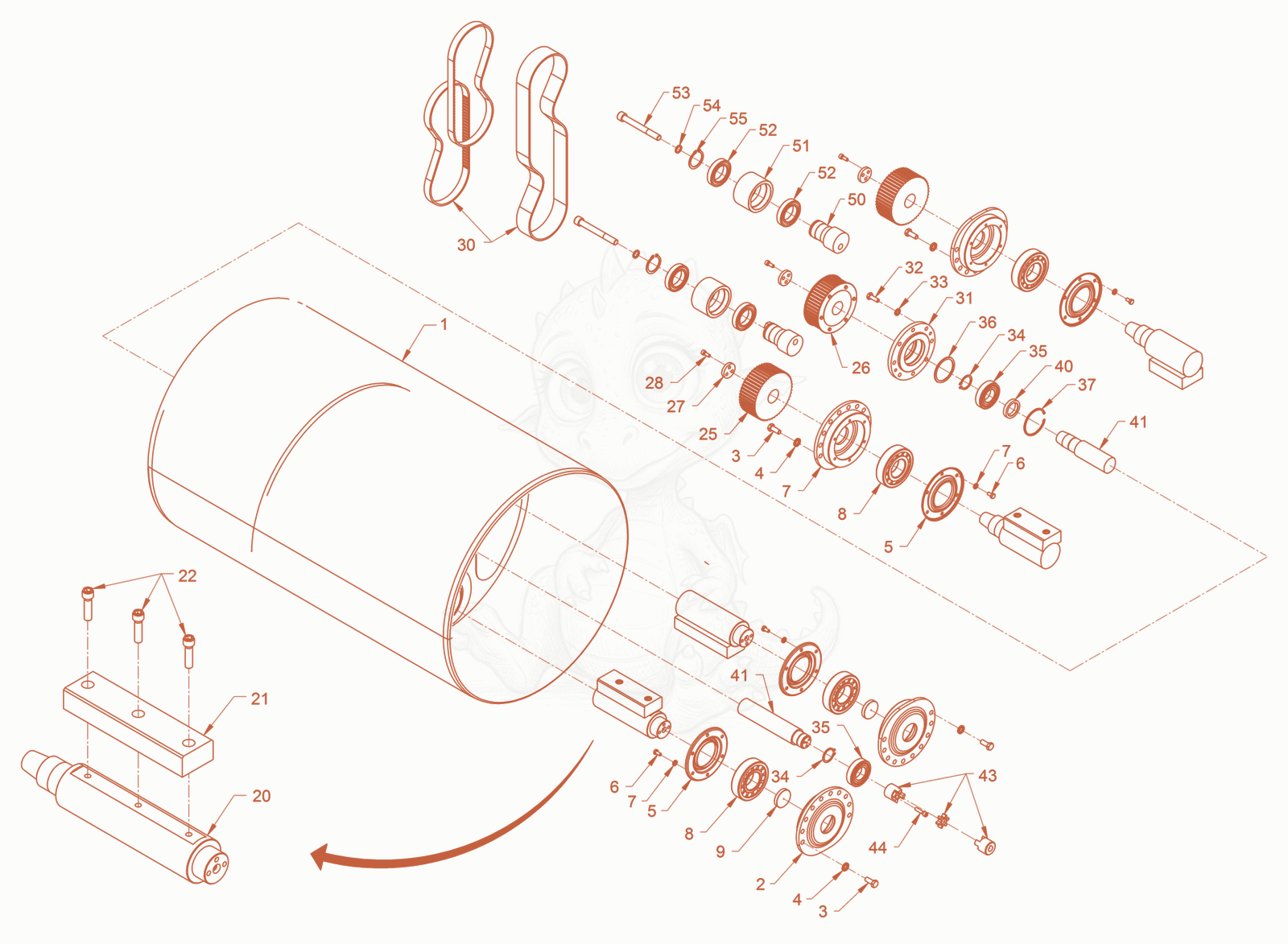

RD27-120O smooth roller drum with oscillator Diagram
- 15100013244Not stockedRoller drum×1
- Flange - 5100013238×4
- Hexagon screw - 5100012525×40
- Locking washer - 5100012968×40
- Cover - 5100012003×4
- Hexagon screw - 5100012516×24
- Locking washer - 5100012966×24
- Cylindrical roller bearing - 5100012226×4
- Cap - 5100011663×2
- Shaft - 5100013239×2
- Unbalance - 5100013242×2
- Cheese-head screw - 5100012785×6
- Toothed belt pulley - 5100011689×2
- Toothed belt pulley - 5100011690Unknown×1
- 265100033236Not stockedtoothed belt pulley×1
- Locking washer - 5100011688×3
- Cheese-head screw - 5100012724×9
- 305100033237Not stockedtoothed belt×2
- Toothed belt - 5100013190×1
- Flange - 5100012975×1
- Hexagon screw - 5100012522×8
- Locking washer - 5100012967×8
- Locking ring - 5100012949×2
- Grooved ball bearing - 5100011631×2
- Ring - 5100012974×1
- Locking ring - 5100012971×1
- Stop ring - 5100011687×1
- Shaft - 5100013247×1
- Coupling - 5100012088×1
- Cheese-head screw - 5100013511×3
- Shaft - 5100013381×2
- Ring - 5100013185×2
- ring - 5100023212×2
- Grooved ball bearing - 5100012952×4
- Cheese-head screw - 5100012823×2
- Locking washer - 5100011536×2
- Locking ring - 5100012950×2
