RD28e-120

RD28-120E roller drum with oscillator Diagram

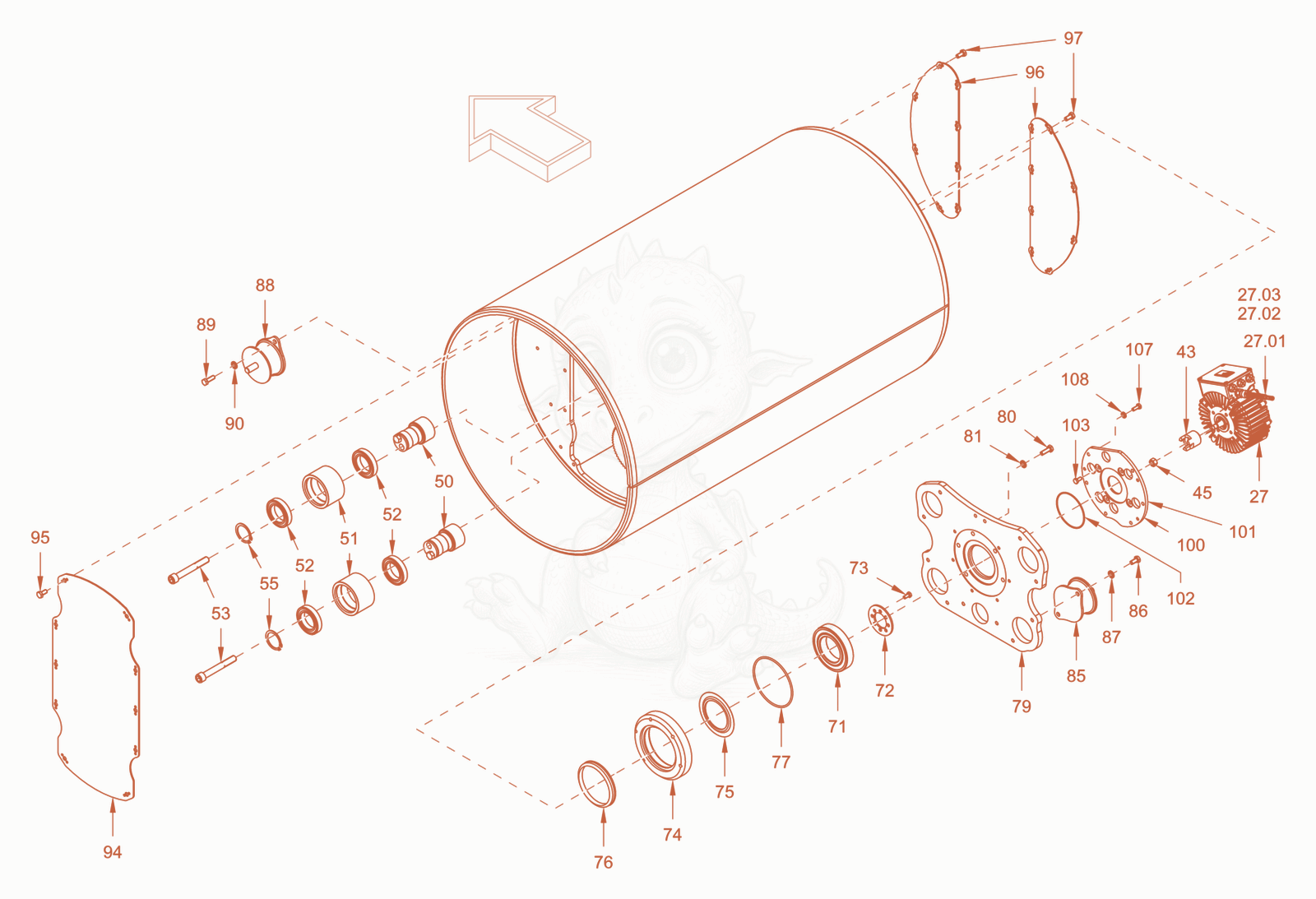

Exploded parts diagram of the roller drum with oscillator of a Wacker Neuson RD28-120E, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

275100073210Not stocked
straight coupling×1
275100073211Not stocked
electromotor×1
275100073212Not stocked
cable with plug×1
275100073519Not stocked
wire protecting sleeve×0.69
435100012088
$338.34
Coupling - 5100012088×1
455100011646
$4.72
Hexagon nut - 5100011646×1
505100066899Not stocked
shaft×2
515100013185
$203.23
Ring - 5100013185×2
525100073231Not stocked
grooved ball bearing×4
535100066900Not stocked
cheese-head screw×2
555100012950
$15.37
Locking ring - 5100012950×2
715100012423
$199.73
Grooved ball bearing - 5100012423×1
725100012318
$15.15
Cover - 5100012318×1
735100012516
$1.57
Hexagon screw - 5100012516×8
745100012004
$709.71
Flange - 5100012004×1
755100012246
$51.19
Nilos ring - 5100012246×1
765100012247
$14.58
Sealing ring - 5100012247×1
775100011675
$2.79
O-ring seal - 5100011675×1
795100073206Not stocked
driver×1
805100012522
$1.49
Hexagon screw - 5100012522×5
815100012967
$1.57
Locking washer - 5100012967×5
855100011787
$53.72
Rubber metal buffer - 5100011787×4
865100012521
$1.57
Hexagon screw - 5100012521×8
875100012967
$1.57
Locking washer - 5100012967×8
885100011787
$53.72
Rubber metal buffer - 5100011787×6
895100012522
$1.49
Hexagon screw - 5100012522×12
905100012967
$1.57
Locking washer - 5100012967×12
945100024325
$148.48
lid - 5100024325×1
955100012520
$1.57
Hexagon screw - 5100012520×10
965100024326
$85.38
lid - 5100024326×2
975100012520
$1.57
Hexagon screw - 5100012520×16
1005100073215Not stocked
connecting flange×1
1015100022874
$2.31
o-ring seal - 5100022874×1
1025100073217Not stocked
o-ring seal×1
1035100012515
$1.49
Hexagon screw - 5100012515×4
1075100012517
$1.57
Hexagon screw - 5100012517×6
1085100012966
$1.57
Locking washer - 5100012966×6
