RD40-130.3

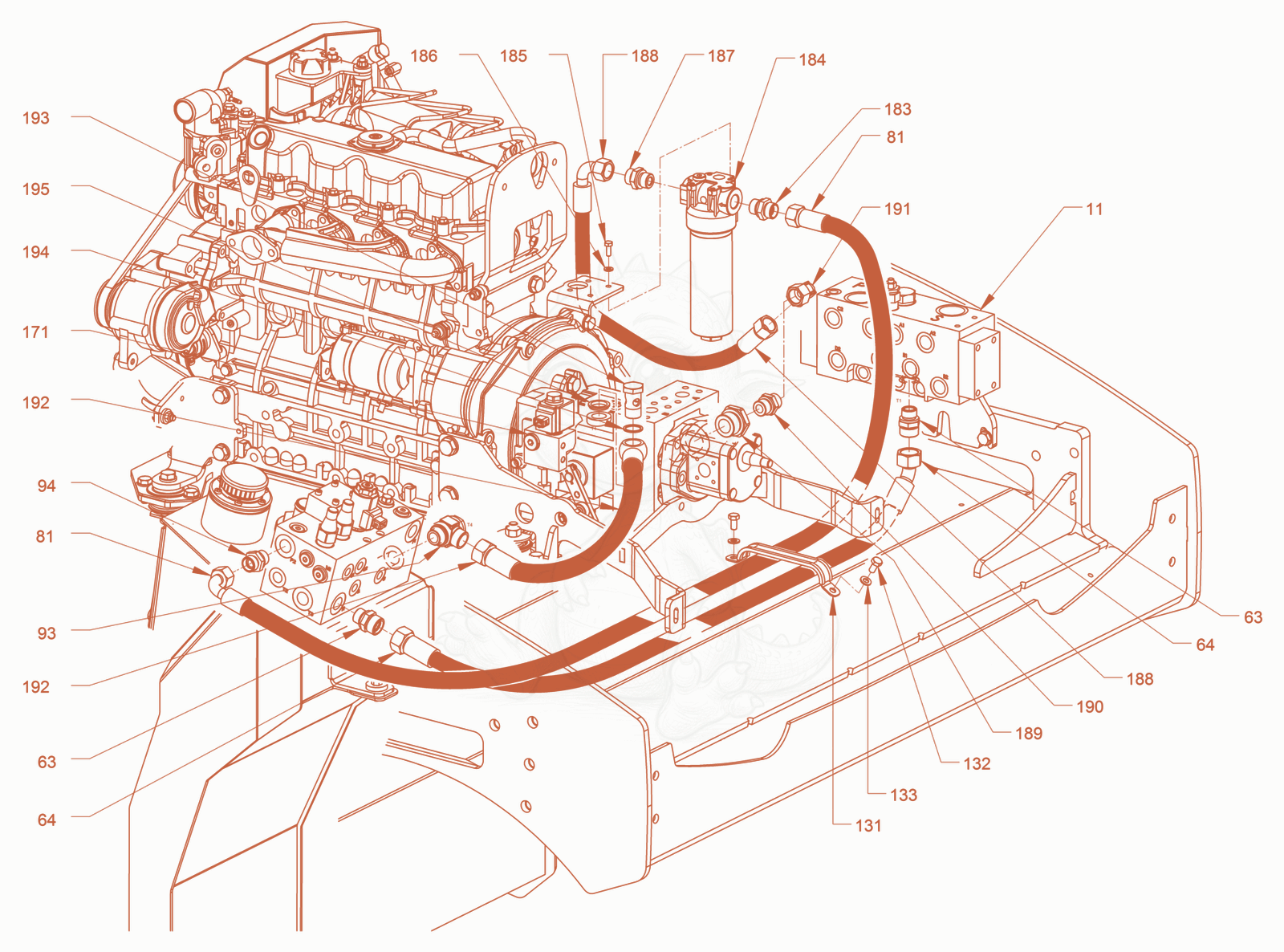

RD40-130.3 advance drive Diagram

Exploded parts diagram of the advance drive of a Wacker Neuson RD40-130.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 115100012463
    $5,345.15
    Valve block - 5100012463×1
  • 635100013477
    $14.10
    Straight screwed socket - 5100013477×2
  • 645100012064
    $150.83
    Flexible tubing - 5100012064×1
  • 815100011601Not stocked
    Flexible tubing×1
  • 935100013493
    $50.64
    Banjo - 5100013493×1
  • 945100013476
    $13.09
    Straight screwed socket - 5100013476×1
  • 1315100011532
    $3.53
    Pipe clip - 5100011532×1
  • 1325100012515
    $1.49
    Hexagon screw - 5100012515×2
  • 1335100012966
    $1.57
    Locking washer - 5100012966×2
  • 1715100012429
    $1,078.35
    Valve block - 5100012429×1
  • 1835100013476
    $13.09
    Straight screwed socket - 5100013476×1
  • 1845100013361
    $78.40
    Filter - 5100013361×1
  • 1855100012517
    $1.57
    Hexagon screw - 5100012517×3
  • 1865100012966
    $1.57
    Locking washer - 5100012966×4
  • 1875100013476
    $13.09
    Straight screwed socket - 5100013476×1
  • 1885100012606Not stocked
    Flexible tubing×1
  • 1895100012091
    $98.09
    Reducing piece - 5100012091×1
  • 1905100012190
    $21.21
    Straight screwed socket - 5100012190×1
  • 1915100013483
    $43.21
    Elbow adjustable - 5100013483×1
  • 1925100012585Not stocked
    Flexible tubing×1
  • 1935100013210
    $13.27
    Hollow-core screw - 5100013210×1
  • 1945100013004
    $3.15
    Sealing ring - 5100013004×1
  • 1955100011468
    $11.69
    Sealing ring - 5100011468×1
