RD40-130.3

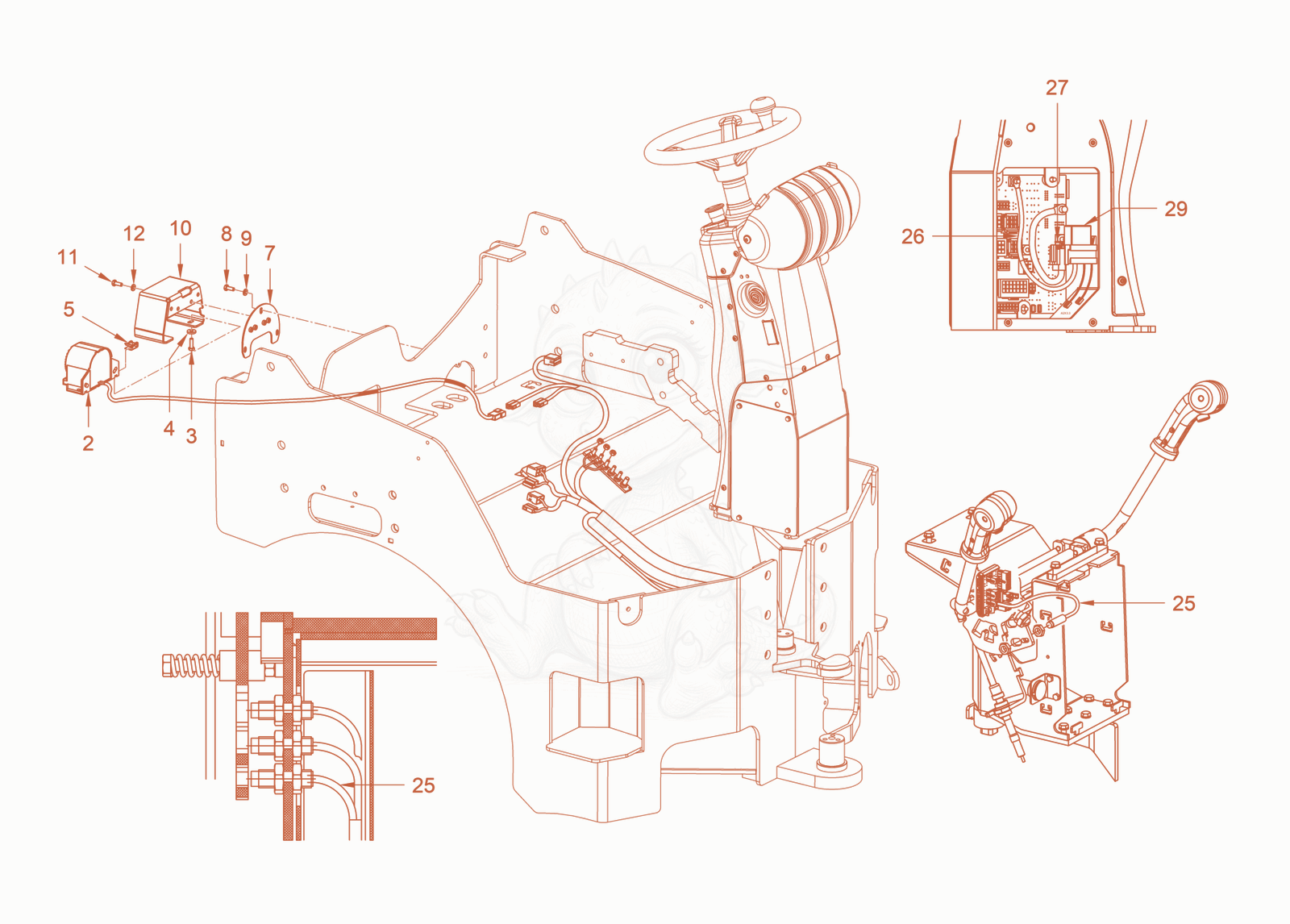

RD40-130.3 back-up alarm self adjusting Diagram

Exploded parts diagram of the back-up alarm self adjusting of a Wacker Neuson RD40-130.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100029555Not stocked
    back-up alarm×1
  • 35100012608
    $1.57
    Hexagon screw - 5100012608×2
  • 45100011636
    $1.57
    Washer - 5100011636×2
  • 55100013585
    $11.44
    Clip nut - 5100013585×2
  • 75100085854Not stocked
    holder×1
  • 85100012572
    $20.09
    Hexagon screw - 5100012572×3
  • 95100012965
    $3.01
    Locking washer - 5100012965×3
  • 105100085855Not stocked
    holder×1
  • 115100012600
    $1.57
    Hexagon screw - 5100012600×2
  • 125100012965
    $3.01
    Locking washer - 5100012965×2
  • 255100059504
    $370.34
    proximity switch - 5100059504×1
  • 265100029559Not stocked
    cable harness×1
  • 275100013580
    $1.83
    Blade fuse - 5100013580×1
  • 295100052959Not stocked
    relay×1
