RD40-130.3

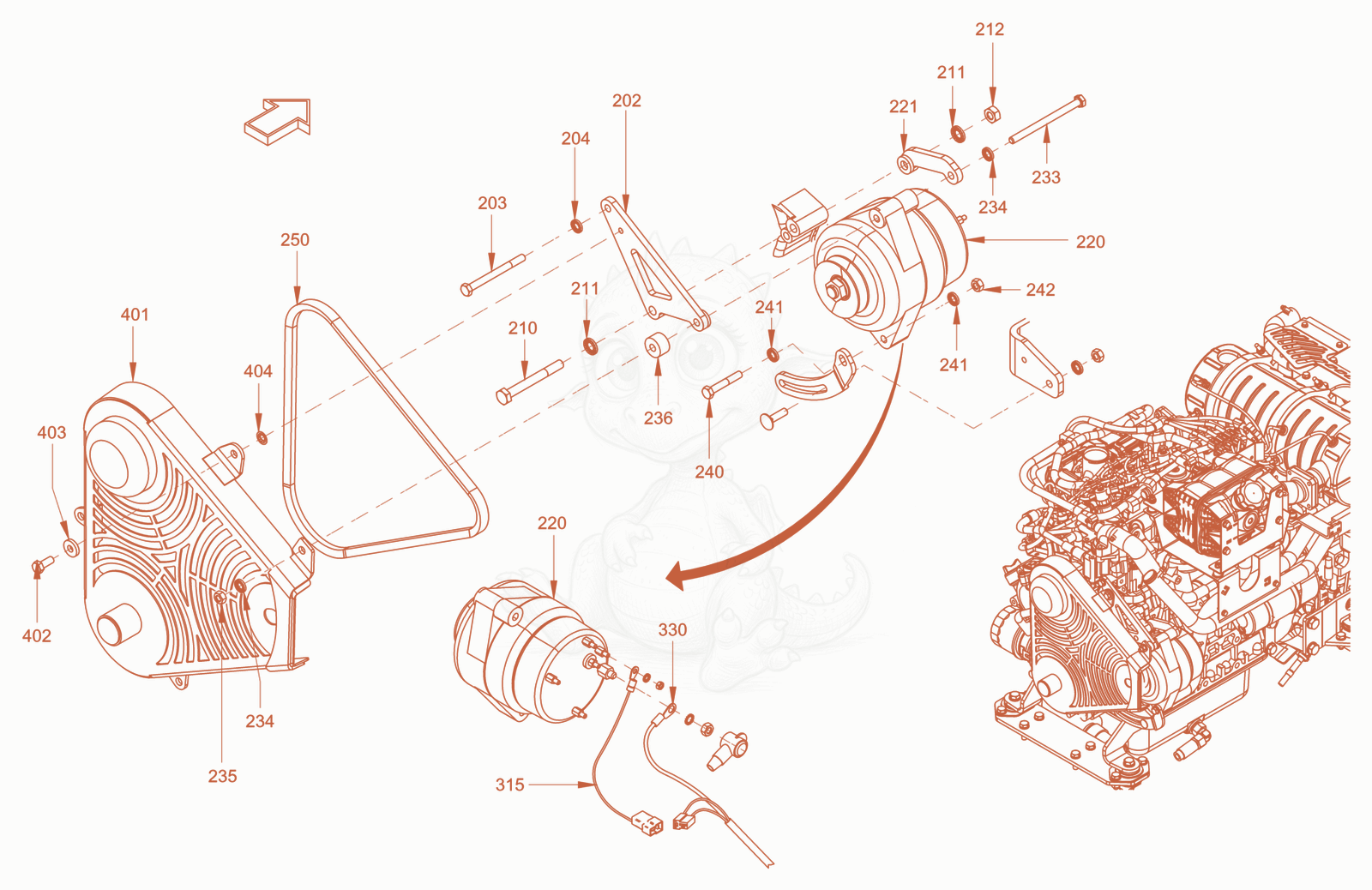

RD40-130.3 pump drive and engine assembly Diagram

Exploded parts diagram of the pump drive and engine assembly of a Wacker Neuson RD40-130.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2025100067852Not stocked
    holder×1
  • 2035100040596
    $1.28
    hexagon screw - 5100040596×1
  • 2045100013094
    $1.57
    Washer - 5100013094×1
  • 2105100050673
    $16.24
    HEX SCREW - 5100050673×1
  • 2115100012967
    $1.57
    Locking washer - 5100012967×2
  • 2125100012893
    $1.49
    Safety nut - 5100012893×1
  • 2205100011672
    $2,360.49
    Alternator - 5100011672×1
  • 2215100050674Not stocked
    holder×1
  • 2335100050675Not stocked
    hexagon screw×1
  • 2345100012966
    $1.57
    Locking washer - 5100012966×2
  • 2355100012546
    $1.57
    Hexagon nut - 5100012546×1
  • 2365100011701
    $12.13
    Distance bush - 5100011701×1
  • 2405100046800Not stocked
    hexagon screw×1
  • 2415100012966
    $1.57
    Locking washer - 5100012966×2
  • 2425100012546
    $1.57
    Hexagon nut - 5100012546×1
  • 2505100011505Not stocked
    V-belt×1
  • 3155100013144Not stocked
    Wire harness×1
  • 3305100013494Not stocked
    Cable bracket×1
  • 4015100013141
    $387.15
    V-belt protection - 5100013141×1
  • 4025100012515
    $1.49
    Hexagon screw - 5100012515×3
  • 4035100013094
    $1.57
    Washer - 5100013094×3
  • 4045100013230
    $1.57
    Locking washer - 5100013230×3
