RD40-130c DPF

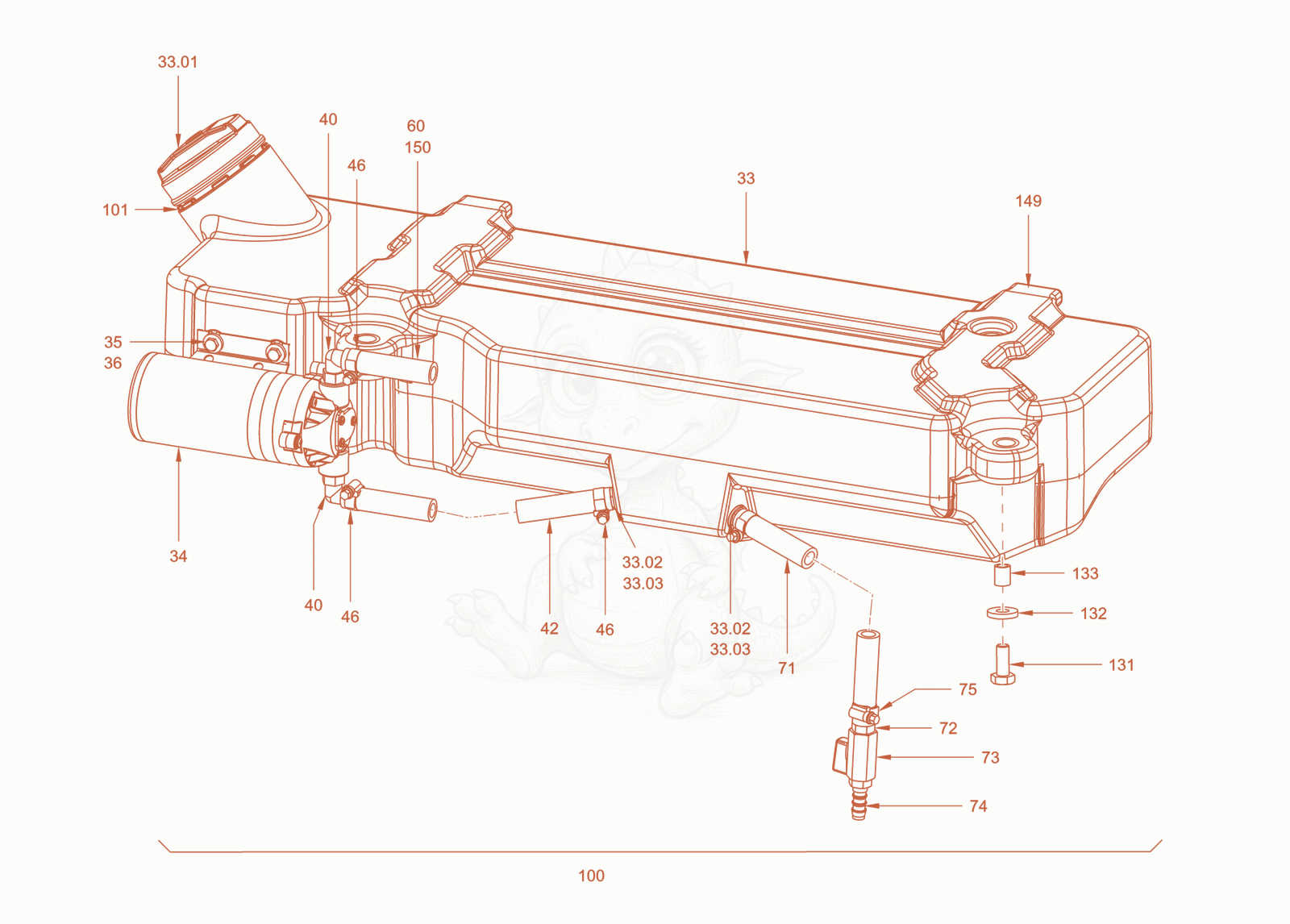

RD40-130CDPF additive sprinkling Diagram

Exploded parts diagram of the additive sprinkling of a Wacker Neuson RD40-130CDPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 335100059525Not stocked
    tank cap, with lock×1
  • 335100059531Not stocked
    additive tank×1
  • 335100065362Not stocked
    o-ring seal×2
  • 335100065363Not stocked
    straight screwed socket×2
  • 345100013374
    $635.14
    Water pump - 5100013374×1
  • 355100012571
    $1.57
    Hexagon screw - 5100012571×4
  • 365100011636
    $1.57
    Washer - 5100011636×4
  • 405100013437
    $8.25
    Angle screwed socket - 5100013437×2
  • 425100013223
    $119.26
    Flexible tubing - 5100013223×0.23
  • 465100013367
    $2.04
    Hose clip - 5100013367×4
  • 605100013223
    $119.26
    Flexible tubing - 5100013223×0.7
  • 715100013223
    $119.26
    Flexible tubing - 5100013223×0.55
  • 725100033219Not stocked
    straight screwed socket×1
  • 735100011472Not stocked
    Ball-closure cock×1
  • 745100029535Not stocked
    straight screwed socket×1
  • 755100013367
    $2.04
    Hose clip - 5100013367×2
  • 1005100059545Not stocked
    additive tank×1
  • 1015100066878Not stocked
    strainer×1
  • 1315100035553Not stocked
    hexagon screw×2
  • 1325100013128
    $1.09
    Washer - 5100013128×2
  • 1335100011717
    $26.54
    Spacer block - 5100011717×2
  • 1495100013644
    $5.90
    Rubber profile - 5100013644×0.2
  • 1505100013367
    $2.04
    Hose clip - 5100013367×1
