RD40-130c DPF

RD40-130CDPF electrical system Diagram

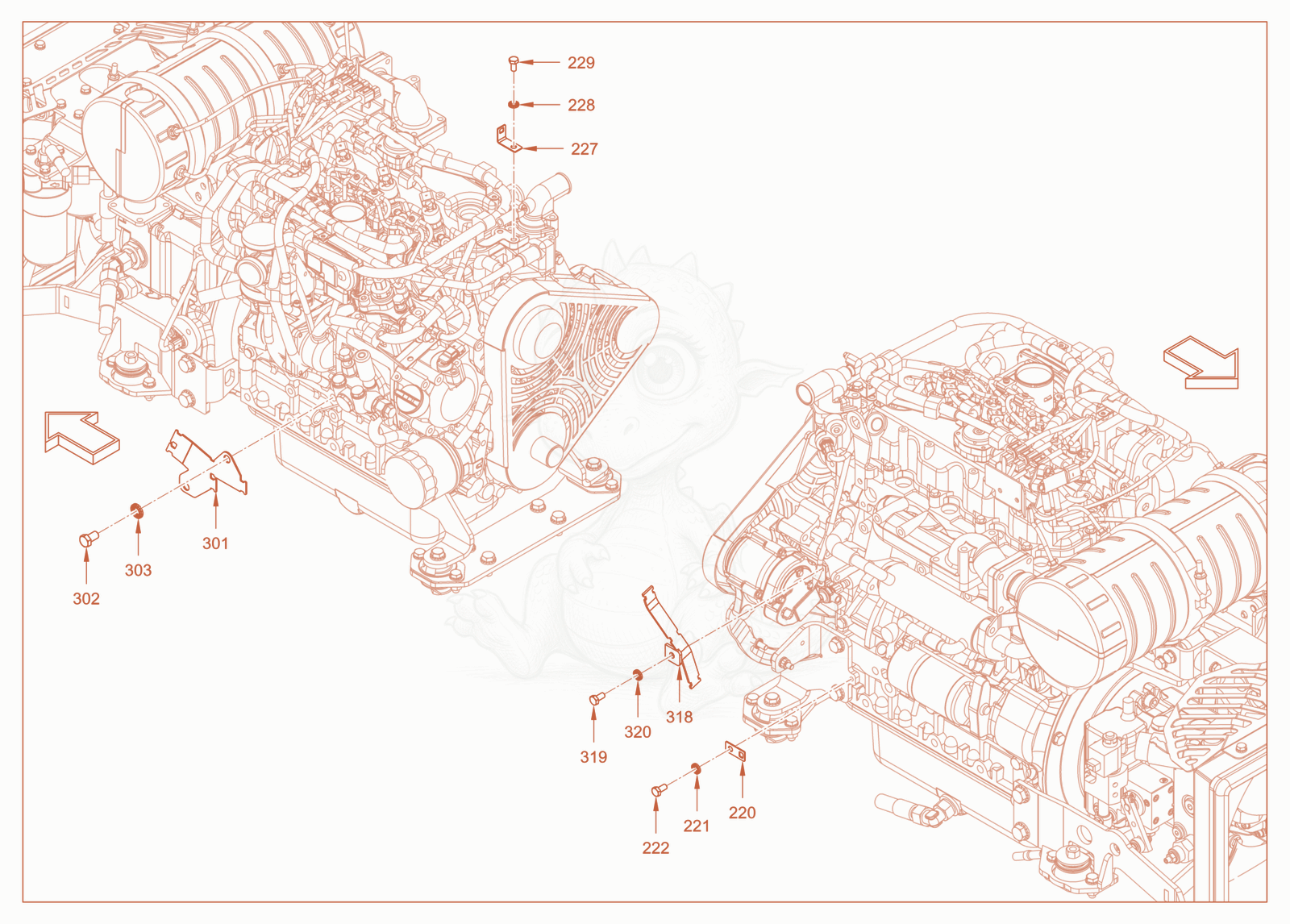

Exploded parts diagram of the electrical system of a Wacker Neuson RD40-130CDPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2205100080584Not stocked
    holder×1
  • 2215100012966
    $1.57
    Locking washer - 5100012966×1
  • 2225100012515
    $1.49
    Hexagon screw - 5100012515×1
  • 2275100080585Not stocked
    holder×1
  • 2285100012966
    $1.57
    Locking washer - 5100012966×1
  • 2295100012515
    $1.49
    Hexagon screw - 5100012515×1
  • 3015100080586Not stocked
    holder×1
  • 3025100012627
    $1.44
    Hexagon screw - 5100012627×2
  • 3035100012968
    $1.57
    Locking washer - 5100012968×2
  • 3185100052963Not stocked
    holder×1
  • 3195100012515
    $1.49
    Hexagon screw - 5100012515×1
  • 3205100012966
    $1.57
    Locking washer - 5100012966×1
