RD40-130c DPF

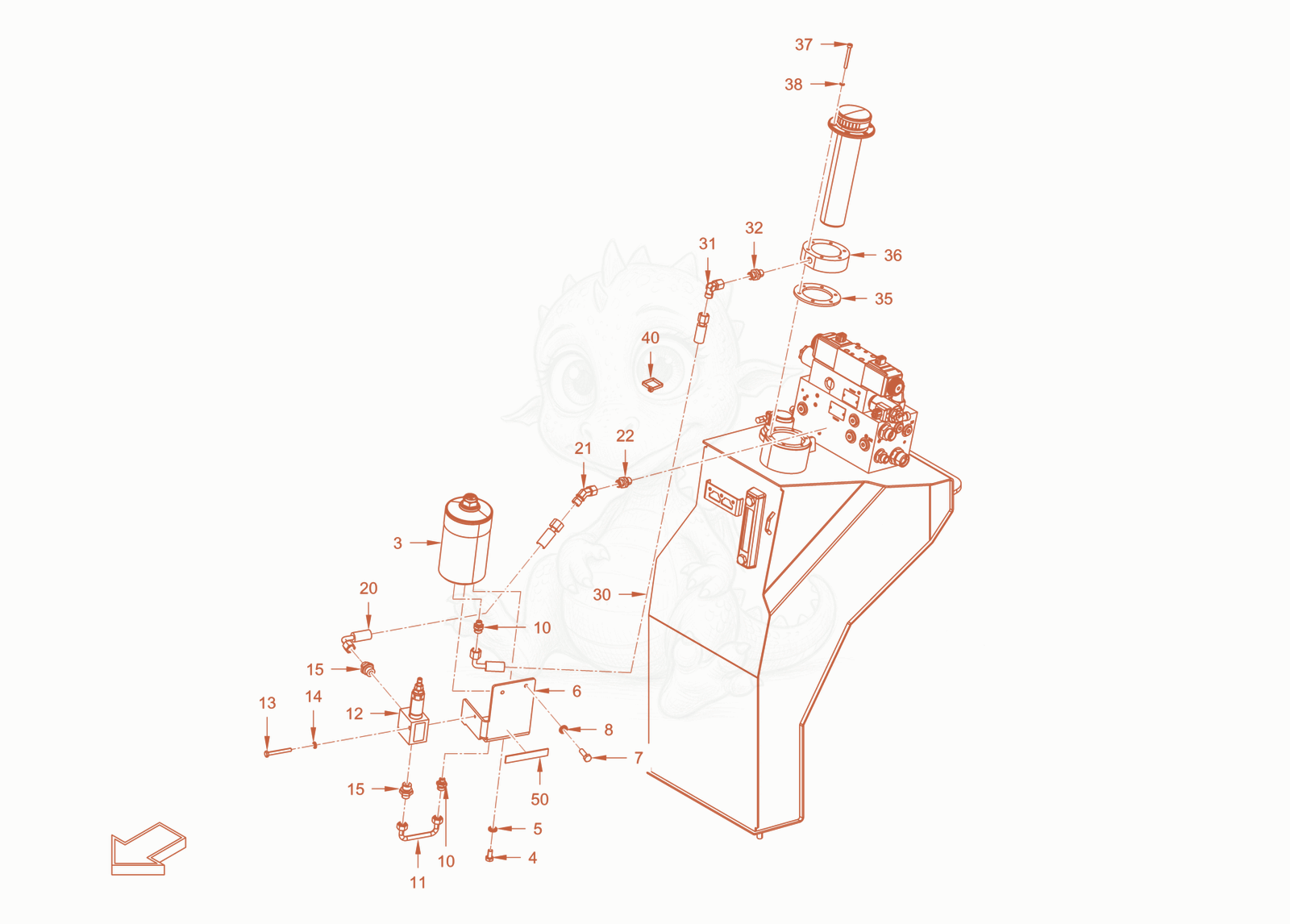

RD40-130CDPF bypass oil filter Diagram

Exploded parts diagram of the bypass oil filter of a Wacker Neuson RD40-130CDPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35100065307Not stocked
    filter×1
  • 45100012515
    $1.49
    Hexagon screw - 5100012515×2
  • 55100012966
    $1.57
    Locking washer - 5100012966×2
  • 65100065316Not stocked
    holder×1
  • 75100012613
    $1.57
    Hexagon screw - 5100012613×2
  • 85100012966
    $1.57
    Locking washer - 5100012966×2
  • 105100029551Not stocked
    straight screwed socket×2
  • 115100065322Not stocked
    pipe bend×1
  • 125100065308Not stocked
    pressure reducing valve×1
  • 135100034772
    $0.83
    hexagon screw - 5100034772×2
  • 145100012965
    $3.01
    Locking washer - 5100012965×2
  • 155100048634Not stocked
    straight screwed socket×2
  • 205100065317Not stocked
    hose×1
  • 215100065302Not stocked
    elbow adjustable×1
  • 225100013454
    $6.37
    Straight screwed socket - 5100013454×1
  • 305100065323Not stocked
    hose×1
  • 315100029538
    $22.40
    elbow adjustable - 5100029538×1
  • 325100013454
    $6.37
    Straight screwed socket - 5100013454×1
  • 355100065310
    $5.02
    sealing - 5100065310×1
  • 365100065311Not stocked
    distance ring×1
  • 375100012090
    $1.57
    Cheese-head screw - 5100012090×6
  • 385100013558
    $1.57
    Sealing ring - 5100013558×6
  • 405100013573
    $1.49
    Wire fastener - 5100013573×5
  • 505100046875Not stocked
    sealing tape×0.09
