RD40-130c DPF

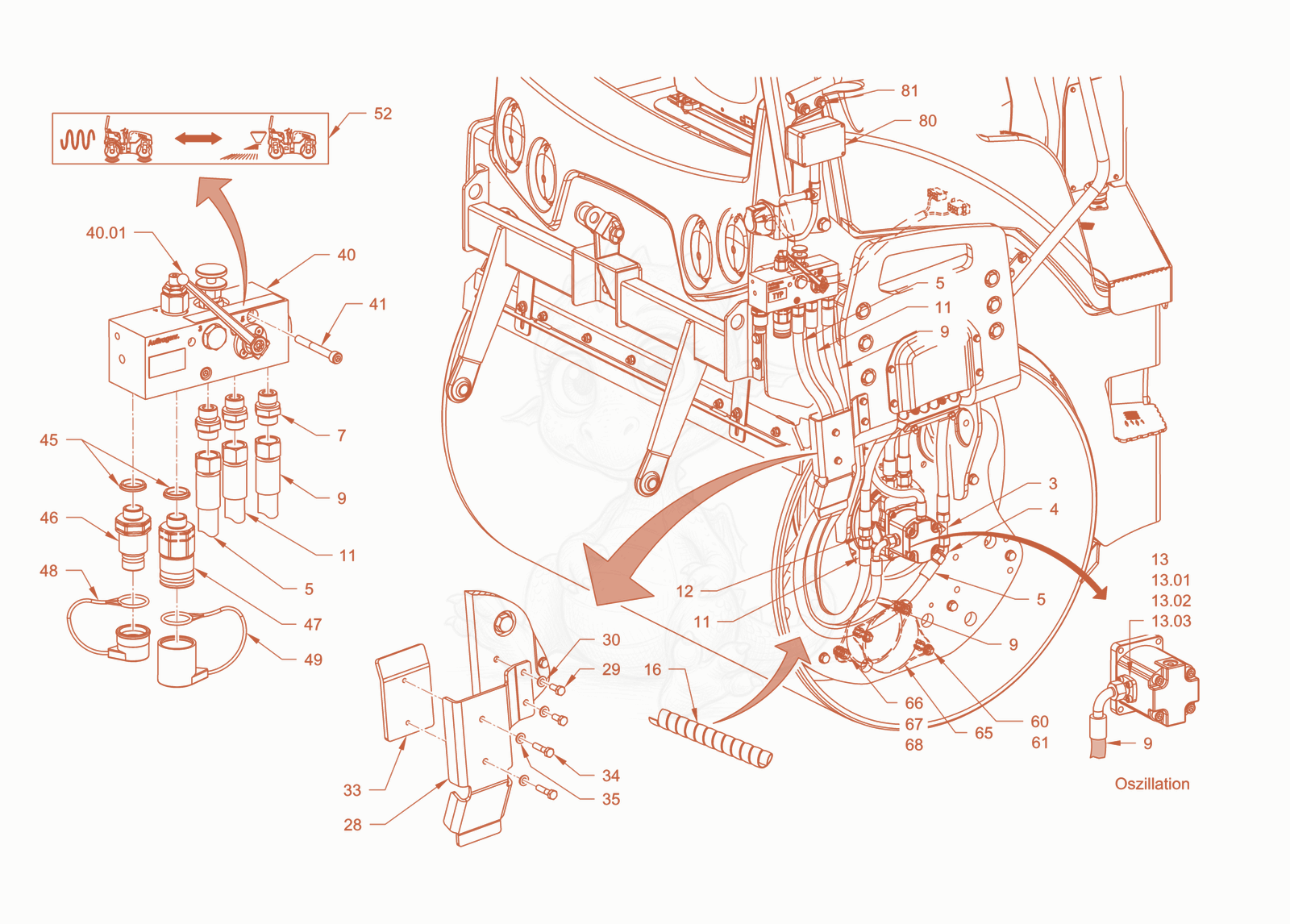

RD40-130CDPF cylinder spreader Diagram

Exploded parts diagram of the cylinder spreader of a Wacker Neuson RD40-130CDPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35100080597Not stocked
    t-piece adjustable×1
  • 45100012391
    $99.17
    Elbow adjustable - 5100012391×1
  • 55100011576Not stocked
    Flexible tubing×1
  • 75100013476
    $13.09
    Straight screwed socket - 5100013476×3
  • 95100011531
    $65.04
    Flexible tubing - 5100011531×1
  • 115100012094Not stocked
    Flexible tubing×1
  • 125100013479Not stocked
    Straight coupling×1
  • 135100012220
    $78.42
    Straight flange joint - 5100012220×1
  • 135100012723
    $1.57
    Cheese-head screw - 5100012723×4
  • 135100012942Not stocked
    Spring ring×4
  • 135100013612
    $1.49
    O-ring seal - 5100013612×1
  • 165100013092Not stocked
    Protective covering of cables×1
  • 285100013024Not stocked
    Bracket×1
  • 295100012517
    $1.57
    Hexagon screw - 5100012517×2
  • 305100012966
    $1.57
    Locking washer - 5100012966×2
  • 335100013025Not stocked
    Holder-up×1
  • 345100035087
    $1.57
    hexagon screw - 5100035087×2
  • 355100012966
    $1.57
    Locking washer - 5100012966×2
  • 405100011735Not stocked
    Hand lever×1
  • 405100012993Not stocked
    Valve block×1
  • 415100011480
    $2.22
    Cheese-head screw - 5100011480×2
  • 455100011468
    $11.69
    Sealing ring - 5100011468×2
  • 465100011771Not stocked
    Coupling plug×1
  • 475100011773Not stocked
    Coupling sleeve×1
  • 485100011774Not stocked
    Protecting cap×1
  • 495100011775Not stocked
    Protecting cap×1
  • 525100016502Not stocked
    Sticker×1
  • 605100012968
    $1.57
    Locking washer - 5100012968×4
  • 615100011612
    $3.23
    Hexagon screw - 5100011612×4
  • 655100011699
    $129.91
    Silentbloc - 5100011699×2
  • 665100012621
    $2.62
    Hexagon screw - 5100012621×4
  • 675100012968
    $1.57
    Locking washer - 5100012968×8
  • 685100012548
    $5.41
    Hexagon nut - 5100012548×4
  • 805100013015Not stocked
    Wire harness×1
  • 815100012977
    $4.15
    Stud bolt - 5100012977×2
