RD40-130c DPF

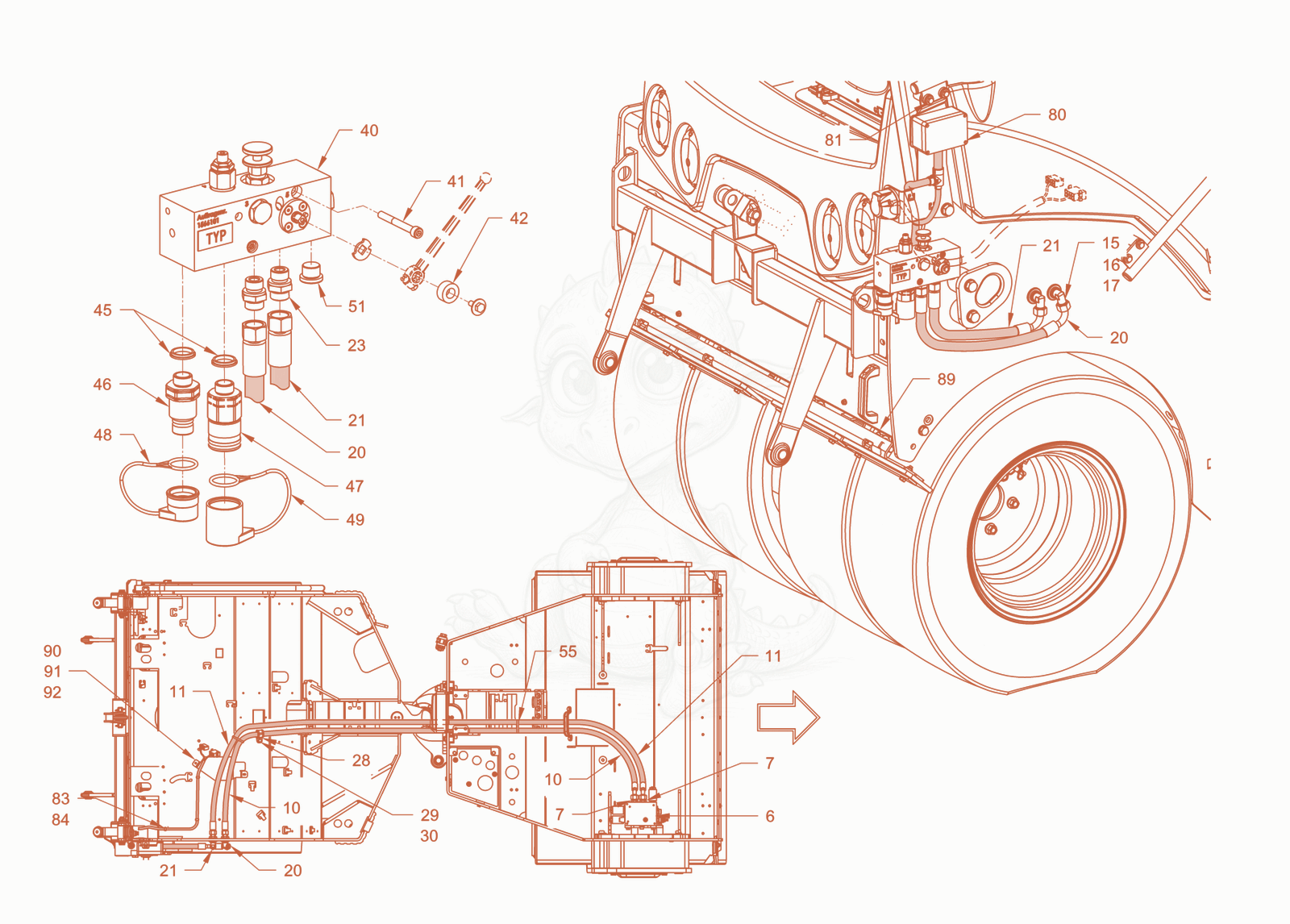

RD40-130CDPF cylinder spreader Diagram

Exploded parts diagram of the cylinder spreader of a Wacker Neuson RD40-130CDPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 65100065333
    $3,454.74
    control block - 5100065333×1
  • 75100013476
    $13.09
    Straight screwed socket - 5100013476×2
  • 105100013098
    $178.44
    Flexible tubing - 5100013098×1
  • 115100013099Not stocked
    Flexible tubing×1
  • 155100080574Not stocked
    bulkhead elbow×2
  • 165100013488
    $4.76
    Hexagon nut - 5100013488×2
  • 175100013191
    $1.49
    Washer - 5100013191×4
  • 205100059510Not stocked
    pipe×1
  • 215100059509Not stocked
    pipe×1
  • 235100013476
    $13.09
    Straight screwed socket - 5100013476×2
  • 285100011469
    $36.39
    Pipe clip - 5100011469×1
  • 295100012515
    $1.49
    Hexagon screw - 5100012515×1
  • 305100012966
    $1.57
    Locking washer - 5100012966×1
  • 405100012993Not stocked
    Valve block×1
  • 415100011480
    $2.22
    Cheese-head screw - 5100011480×2
  • 425100013100Not stocked
    Bushing×1
  • 455100011468
    $11.69
    Sealing ring - 5100011468×2
  • 465100011771Not stocked
    Coupling plug×1
  • 475100011773Not stocked
    Coupling sleeve×1
  • 485100011774Not stocked
    Protecting cap×1
  • 495100011775Not stocked
    Protecting cap×1
  • 515100011665
    $8.69
    Screw plug - 5100011665×1
  • 555100013429
    $1.18
    Wire fastener - 5100013429×30
  • 805100013015Not stocked
    Wire harness×1
  • 815100012977
    $4.15
    Stud bolt - 5100012977×2
  • 835100013093
    $145.96
    Clip - 5100013093×10
  • 845100013573
    $1.49
    Wire fastener - 5100013573×15
  • 895100013121Not stocked
    Cover×1
  • 905100012822
    $36.43
    Cover plate - 5100012822×1
  • 915100012572
    $20.09
    Hexagon screw - 5100012572×2
  • 925100012965
    $3.01
    Locking washer - 5100012965×2
