RD40-130c DPF

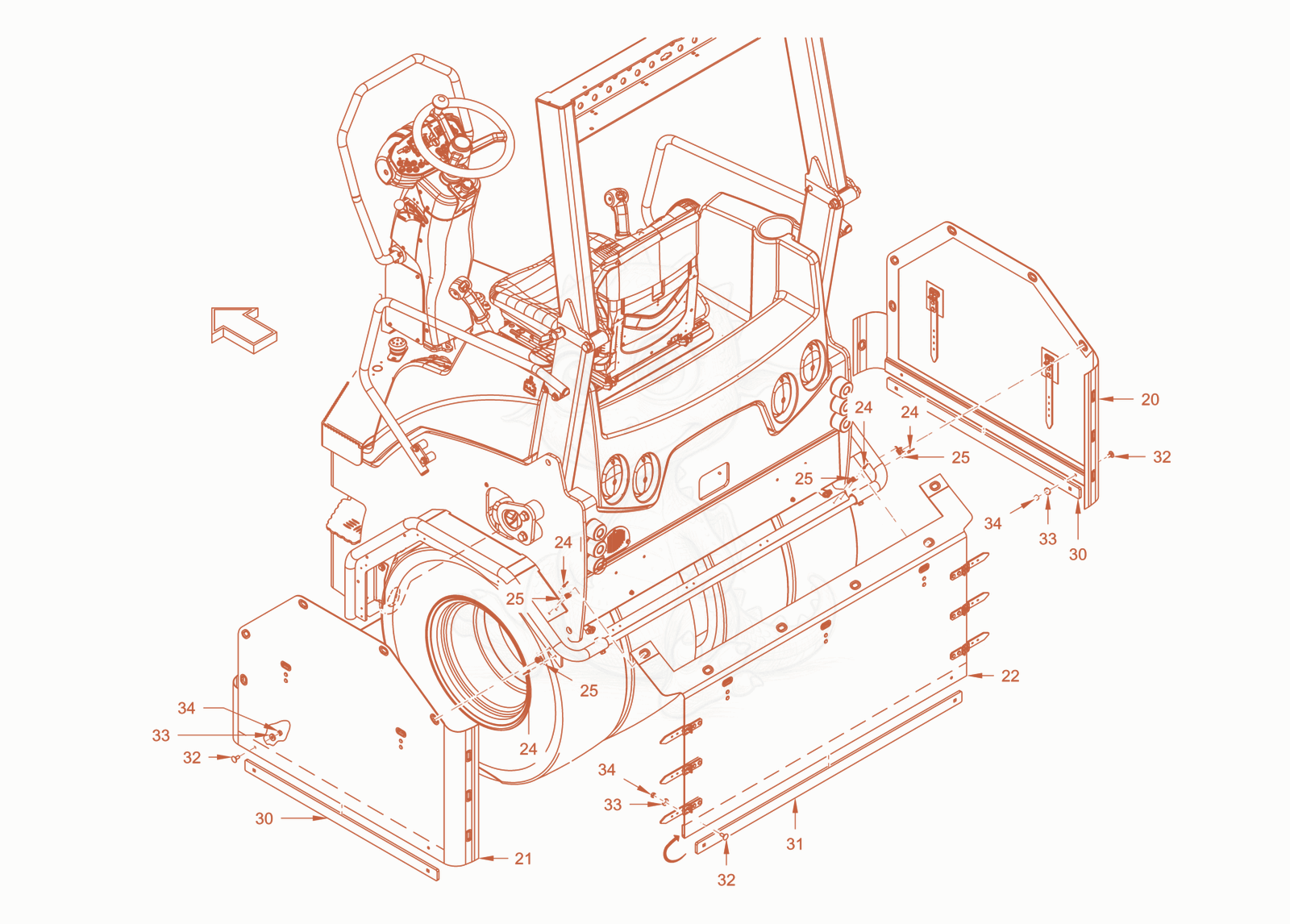

RD40-130CDPF thermal aprons Diagram

Exploded parts diagram of the thermal aprons of a Wacker Neuson RD40-130CDPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 205100059490Not stocked
    thermal aprons×1
  • 215100059488Not stocked
    thermal aprons×1
  • 225100059491Not stocked
    thermal aprons×1
  • 245100053030Not stocked
    bolt rivet×36
  • 255100053031Not stocked
    rotary lock×18
  • 305100059492Not stocked
    flat steel×2
  • 315100059493Not stocked
    flat steel×1
  • 325100053034Not stocked
    mushroom head screw×6
  • 335100013094
    $1.57
    Washer - 5100013094×6
  • 345100012546
    $1.57
    Hexagon nut - 5100012546×6
