RD40-130c DPF

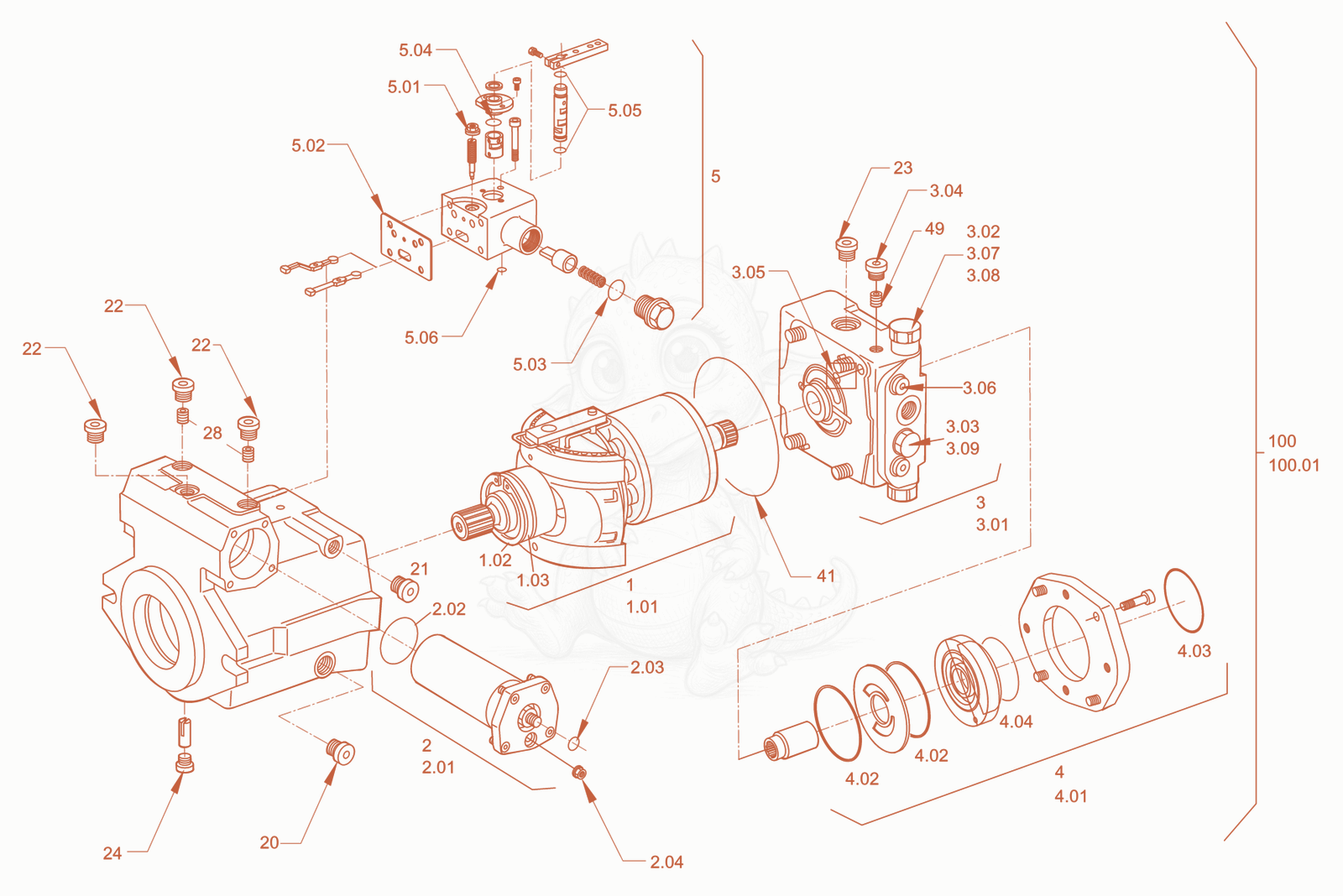

RD40-130CDPF driving gear Diagram
- Driving gear - 5100012262×1
- Locking ring - 5100011618×2
- Set of seals - 5100012180×1
- Shaft seal - 5100013503×1
- 25100012263Not stockedHydraulic regulation×1
- Seal nut - 5100011511×2
- O-ring seal - 5100011517×1
- Set of seals - 5100012267×1
- O-ring seal - 5100013545×1
- 35100012264Not stockedConnection plate×1
- O-ring seal - 5100011446×1
- Screw plug - 5100011453×1
- Pressure-relief valve - 5100011571×2
- Feeding pressure valve - 5100011614×1
- Set of seals - 5100012188×1
- O-ring seal - 5100013406×1
- Screw plug - 5100013543×2
- O-ring seal - 5100013545×1
- O-ring seal - 5100013546×1
- Connection flange - 5100012265×1
- Set of seals - 5100012268×1
- 45100012098Not stockedO-ring seal×1
- Sealing washer - 5100011831×2
- O-ring seal - 5100011745×1
- Control device - 5100012266×1
- O-ring seal - 5100011448×1
- O-ring seal - 5100011449×1
- O-ring seal - 5100011450×1
- Seal - 5100011622×1
- O-ring seal - 5100013544×2
- Seal nut - 5100013547×1
- Screw plug - 5100011452×1
- Screw plug - 5100011453×1
- Screw plug - 5100013543×3
- Screw plug - 5100011658×1
- Screw plug - 5100011454×1
- 285100033215Not stockedvalve×2
- O-ring seal - 5100011486×1
- Nozzle - 5100011510×1
- Variable displac. pump (drive) - 5100011786×1
- Set of seals - 5100012251×1
