RD40-130 O Tandem Roller

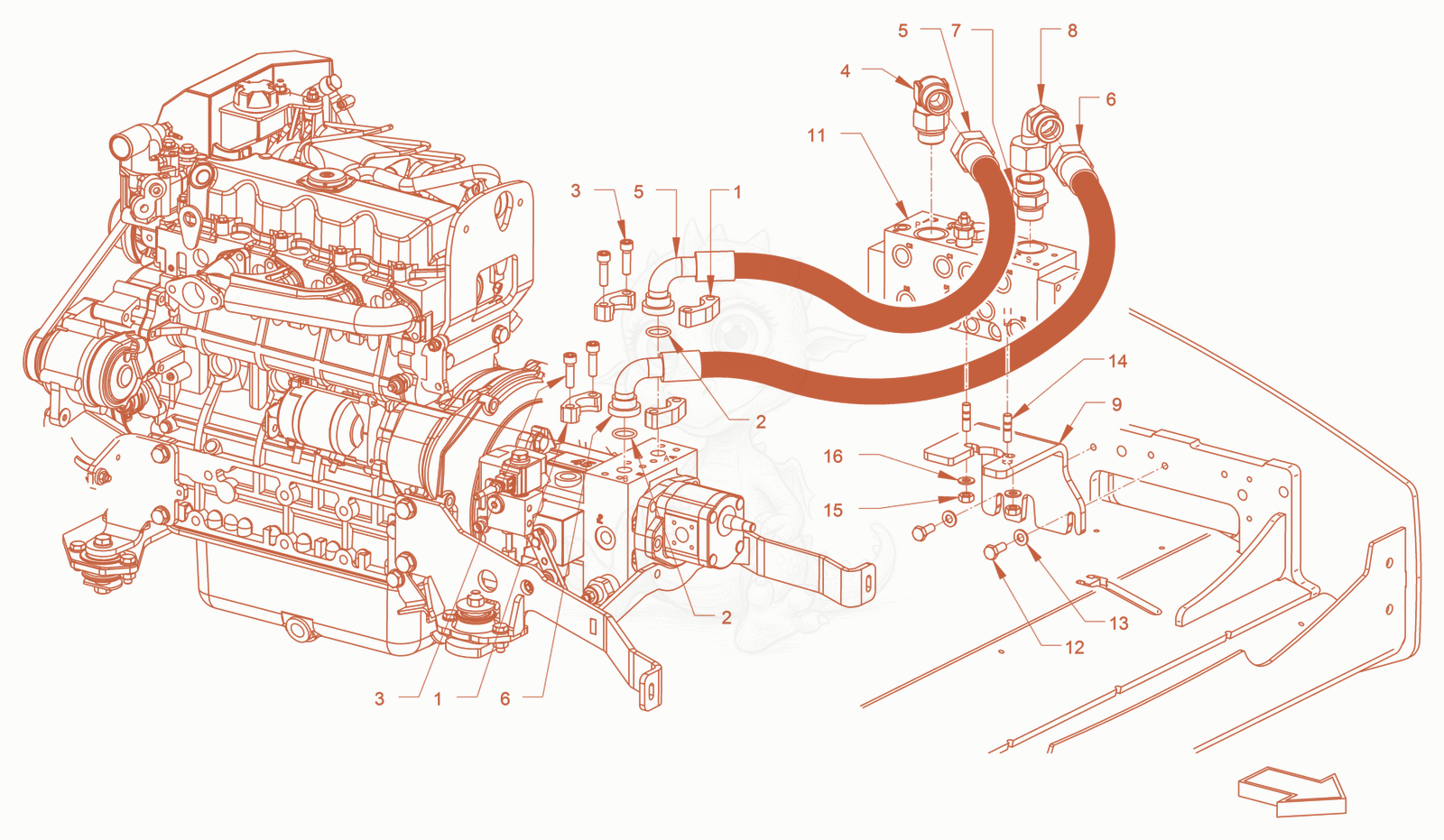

RD40-130OUS advance drive Diagram
- Sae-flange half - 5100013430×4
- O-ring seal - 5100013431×2
- Safety screw - 5100011587×8
- Elbow adjustable - 5100012628×1
- Flexible tubing - 5100012642×1
- Flexible tubing - 5100012643×1
- Straight screwed socket - 5100013478×1
- Intermediate piece - 5100012641×1
- Bracket - 5100011921×1
- Valve block - 5100012463×1
- Hexagon screw - 5100011479×2
- Locking washer - 5100012967×2
- Stud bolt - 5100013564×2
- Locking washer - 5100012967×2
- Hexagon nut - 5100012547×2
