RD45-140.3

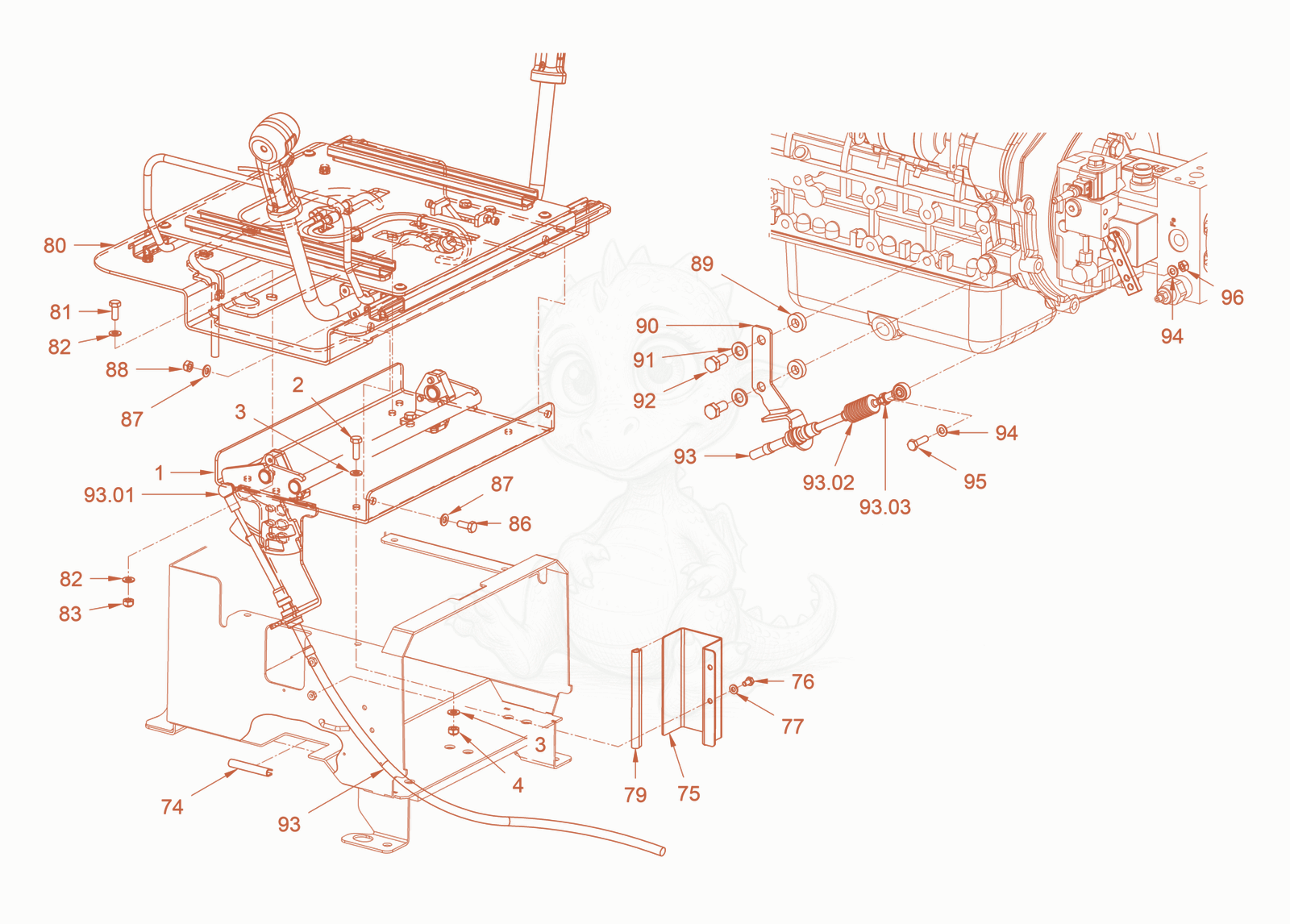

RD45-140.3 drive shifting Diagram

Exploded parts diagram of the drive shifting of a Wacker Neuson RD45-140.3, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15100011899
$205.45
Seat pedestal - 5100011899×1
25100012517
$1.57
Hexagon screw - 5100012517×4
35100012966
$1.57
Locking washer - 5100012966×8
45100012546
$1.57
Hexagon nut - 5100012546×4
745100013412
$22.18
Edge protection - 5100013412×0.24
755100012639
$52.69
Cover - 5100012639×1
765100012572
$20.09
Hexagon screw - 5100012572×2
775100012965
$3.01
Locking washer - 5100012965×2
795100013412
$22.18
Edge protection - 5100013412×0.14
805100011997
$414.85
Seat pedestal - 5100011997×1
815100012517
$1.57
Hexagon screw - 5100012517×2
825100012966
$1.57
Locking washer - 5100012966×4
835100012546
$1.57
Hexagon nut - 5100012546×2
865100012517
$1.57
Hexagon screw - 5100012517×2
875100012966
$1.57
Locking washer - 5100012966×4
885100012546
$1.57
Hexagon nut - 5100012546×2
895100012453
$10.59
Spacer - 5100012453×2
905100012154
$37.84
Bracket - 5100012154×1
915100012968
$1.57
Locking washer - 5100012968×2
925100022925Not stocked
Hexagon screw×2
935100011949
$6.46
Bellows - 5100011949×1
935100011951
$53.24
Joint-head - 5100011951×1
935100012333
$32.91
Angle joint - 5100012333×1
935100012581
$413.82
Actuating cable - 5100012581×1
945100012966
$1.57
Locking washer - 5100012966×2
955100035308
$1.57
hexagon screw - 5100035308×1
965100053004
$1.57
safety nut - 5100053004×1
