RD45-140c.3

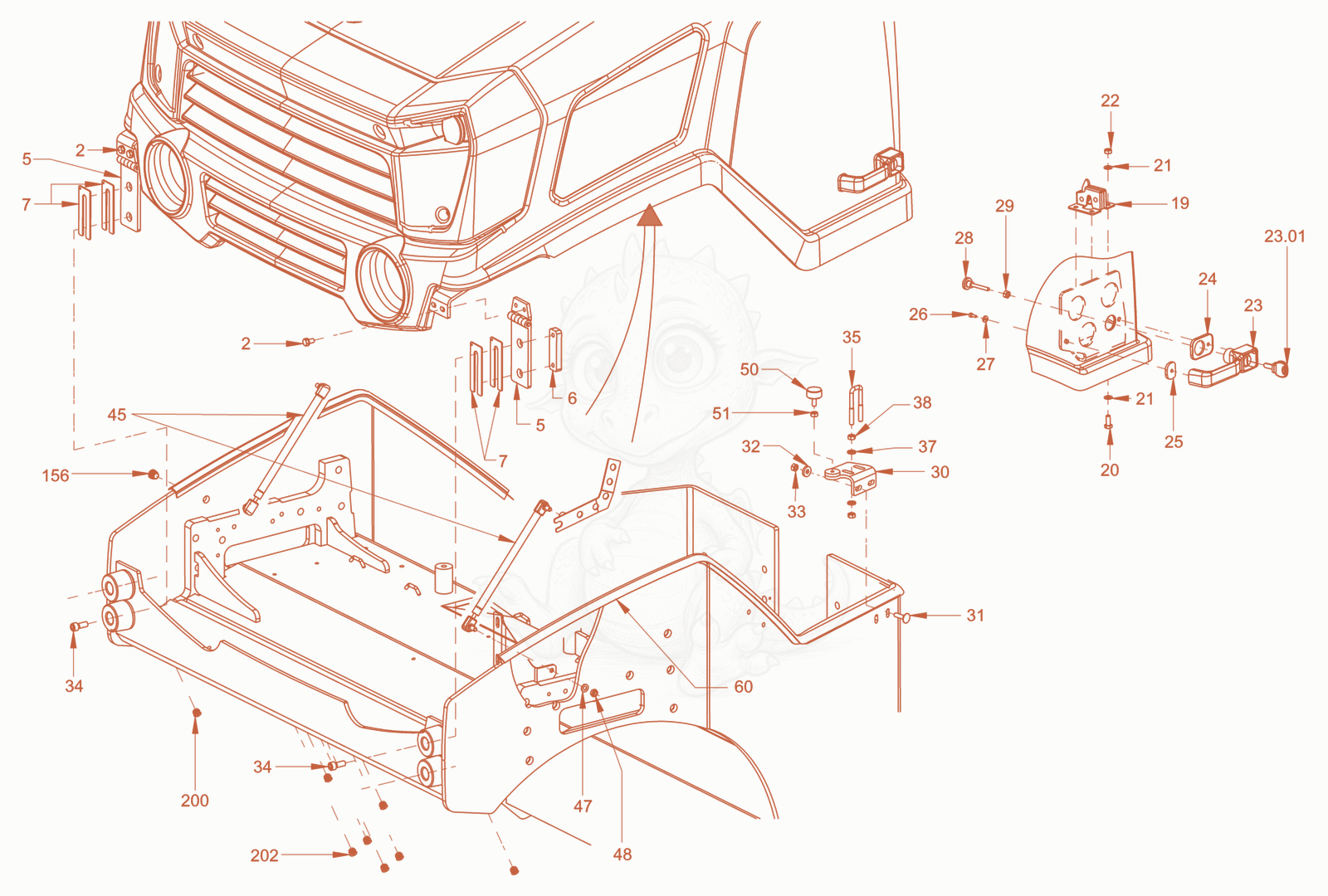

RD45-140C.3 canopies and covers Diagram

Exploded parts diagram of the canopies and covers of a Wacker Neuson RD45-140C.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100012498
    $2.62
    Safety screw - 5100012498×4
  • 55100012193
    $113.70
    Hinge - 5100012193×2
  • 65100012214
    $55.13
    Metal plate - 5100012214×2
  • 75100013085
    $11.13
    Spacer plate - 5100013085×4
  • 195100012696
    $107.27
    Lock - 5100012696×1
  • 205100012517
    $1.57
    Hexagon screw - 5100012517×4
  • 215100012966
    $1.57
    Locking washer - 5100012966×8
  • 225100012546
    $1.57
    Hexagon nut - 5100012546×4
  • 235100013588
    $261.67
    Lock outside handle - 5100013588×1
  • 235100013557
    $20.31
    Key - 5100013557×1
  • 245100013590
    $5.50
    Supporting plate - 5100013590×1
  • 255100013589
    $4.48
    Supporting plate - 5100013589×1
  • 265100013404
    $1.57
    Cheese-head screw - 5100013404×2
  • 275100012965
    $3.01
    Locking washer - 5100012965×2
  • 285100050643
    $8.47
    knurled head screw - 5100050643×1
  • 295100012545
    $1.57
    Hexagon nut - 5100012545×1
  • 305100065346Not stocked
    holder×1
  • 315100012780
    $1.57
    Mushroom head screw - 5100012780×2
  • 325100012966
    $1.57
    Locking washer - 5100012966×2
  • 335100012546
    $1.57
    Hexagon nut - 5100012546×2
  • 345100012781
    $1.49
    Cheese-head screw - 5100012781×4
  • 355100050644Not stocked
    wire clip×1
  • 375100012966
    $1.57
    Locking washer - 5100012966×2
  • 385100012546
    $1.57
    Hexagon nut - 5100012546×2
  • 455100017981
    $126.67
    gas spring - 5100017981×2
  • 475100012966
    $1.57
    Locking washer - 5100012966×2
  • 485100012546
    $1.57
    Hexagon nut - 5100012546×2
  • 505100013525
    $23.40
    Rubber buffer - 5100013525×1
  • 515100013537
    $1.57
    Hexagon nut - 5100013537×1
  • 605100012029
    $41.50
    Sealing profile - 5100012029×4
  • 1565100011537
    $0.85
    Filler cap - 5100011537×1
  • 2005100050647Not stocked
    filler cap×4
  • 2025100050646Not stocked
    filler cap×4
