RD45-140c

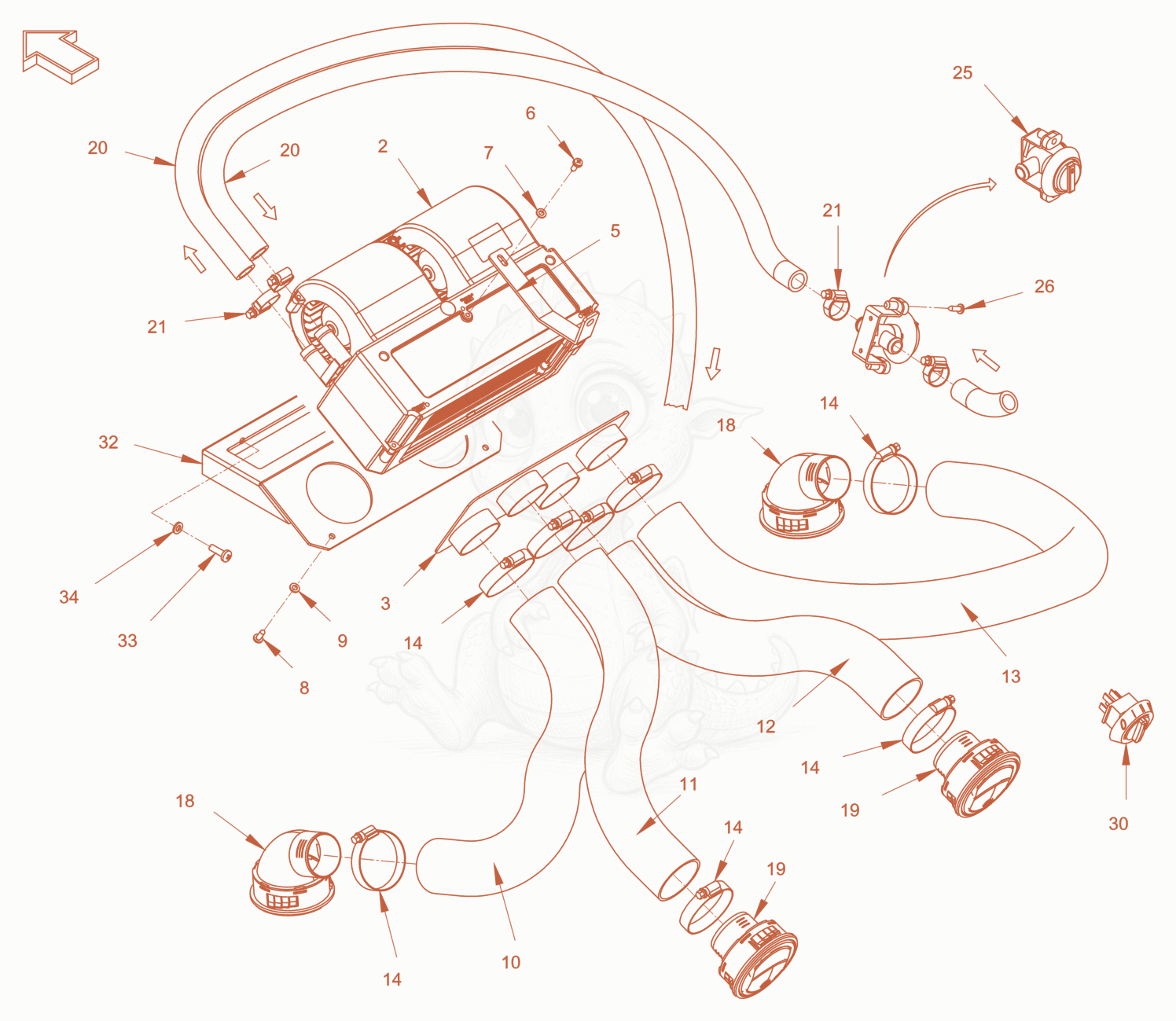

RD45-140C cabin-heating Diagram

Exploded parts diagram of the cabin-heating of a Wacker Neuson RD45-140C, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100013155
    $1,435.40
    Heating - 5100013155×1
  • 35100013327Not stocked
    Connector×1
  • 55100013288Not stocked
    Bow×1
  • 65100013620
    $1.49
    Sheet metal screw - 5100013620×1
  • 75100012936
    $2.27
    Washer - 5100012936×1
  • 85100013620
    $1.49
    Sheet metal screw - 5100013620×3
  • 95100012936
    $2.27
    Washer - 5100012936×3
  • 105100013500
    $371.12
    Hot air hose - 5100013500×1
  • 115100013500
    $371.12
    Hot air hose - 5100013500×1
  • 125100013500
    $371.12
    Hot air hose - 5100013500×1
  • 135100013500
    $371.12
    Hot air hose - 5100013500×1
  • 145100012907
    $11.61
    Hose clip - 5100012907×8
  • 185100013310
    $118.82
    Air outlet - 5100013310×2
  • 195100013311
    $83.64
    Air outlet - 5100013311×2
  • 205100012040
    $89.96
    Cooling-water hose - 5100012040×10
  • 215100013367
    $2.04
    Hose clip - 5100013367×4
  • 255100013314
    $274.07
    Valve - 5100013314×1
  • 265100013620
    $1.49
    Sheet metal screw - 5100013620×2
  • 305100013156
    $124.73
    Switch - 5100013156×1
  • 325100013282Not stocked
    Mounting device×1
  • 335100012608
    $1.57
    Hexagon screw - 5100012608×2
  • 345100012937
    $2.53
    Washer - 5100012937×2
