RD45-140c

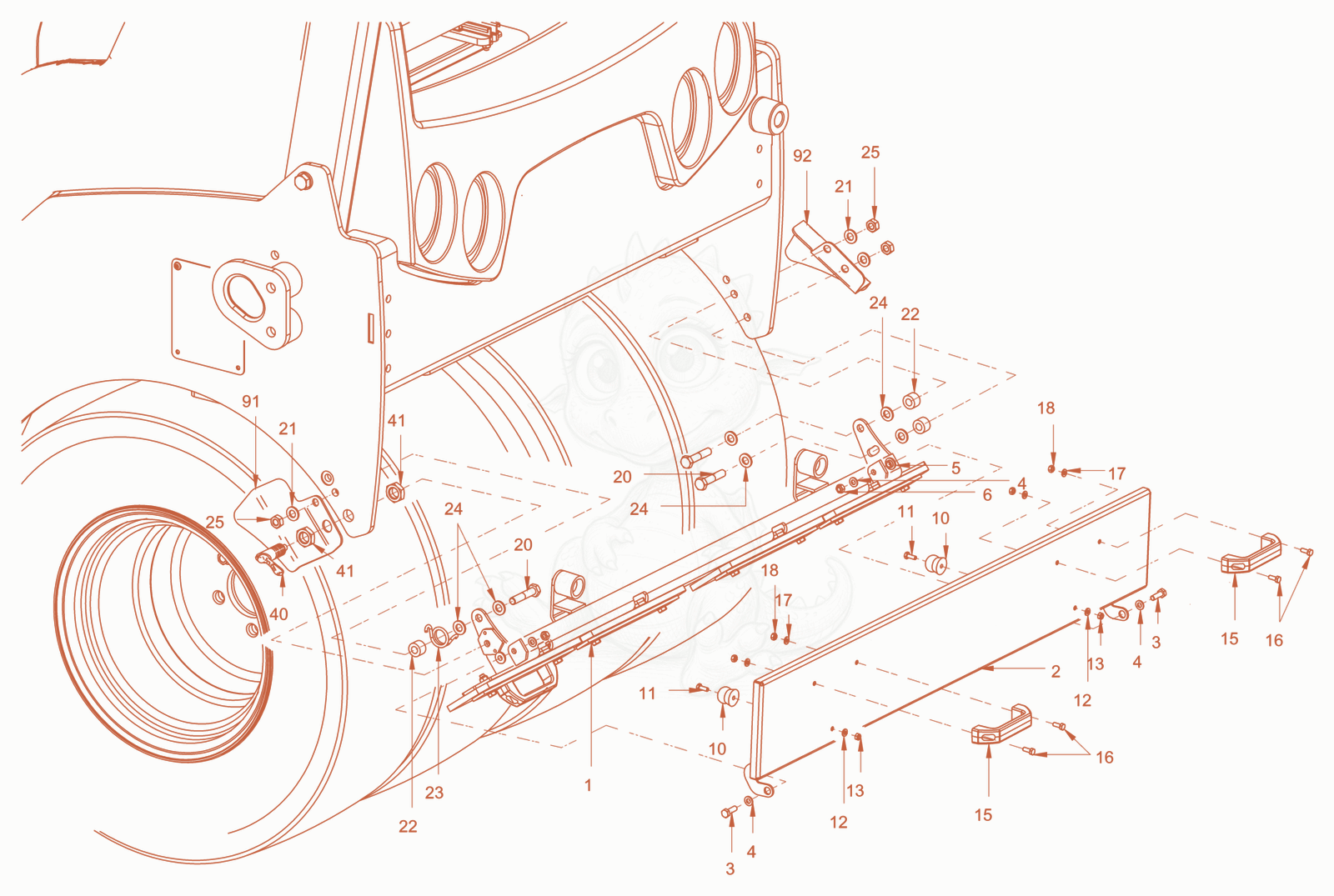

RD45-140C Scraper Diagram
- Scraper - 5100012138×1
- Cover - 5100012142×1
- Hexagon screw - 5100012613×2
- Locking washer - 5100012966×4
- Bushing - 5100012456×2
- safety nut - 5100053004×2
- Rubber piece - 5100012439×2
- Hexagon screw - 5100012610×2
- Locking washer - 5100012965×2
- Hexagon nut - 5100012545×2
- Handle - 5100012932×2
- Hexagon screw - 5100012600×4
- Locking washer - 5100012965×4
- Hexagon nut - 5100012545×4
- hexagon screw - 5100034760×3
- Washer - 5100013577×3
- Bushing - 5100011682×3
- Yoke spring - 5100013629×1
- Washer - 5100011657×6
- safety nut - 5100035091×3
- Jack latch - 5100013204×1
- 415100057816Not stockedHexagonal nut×2
- 915100057817Not stockedSplash protection×1
- 925100057818Not stockedSplash protection×1
