RD45-140c

RD45-140C Electrical system Diagram

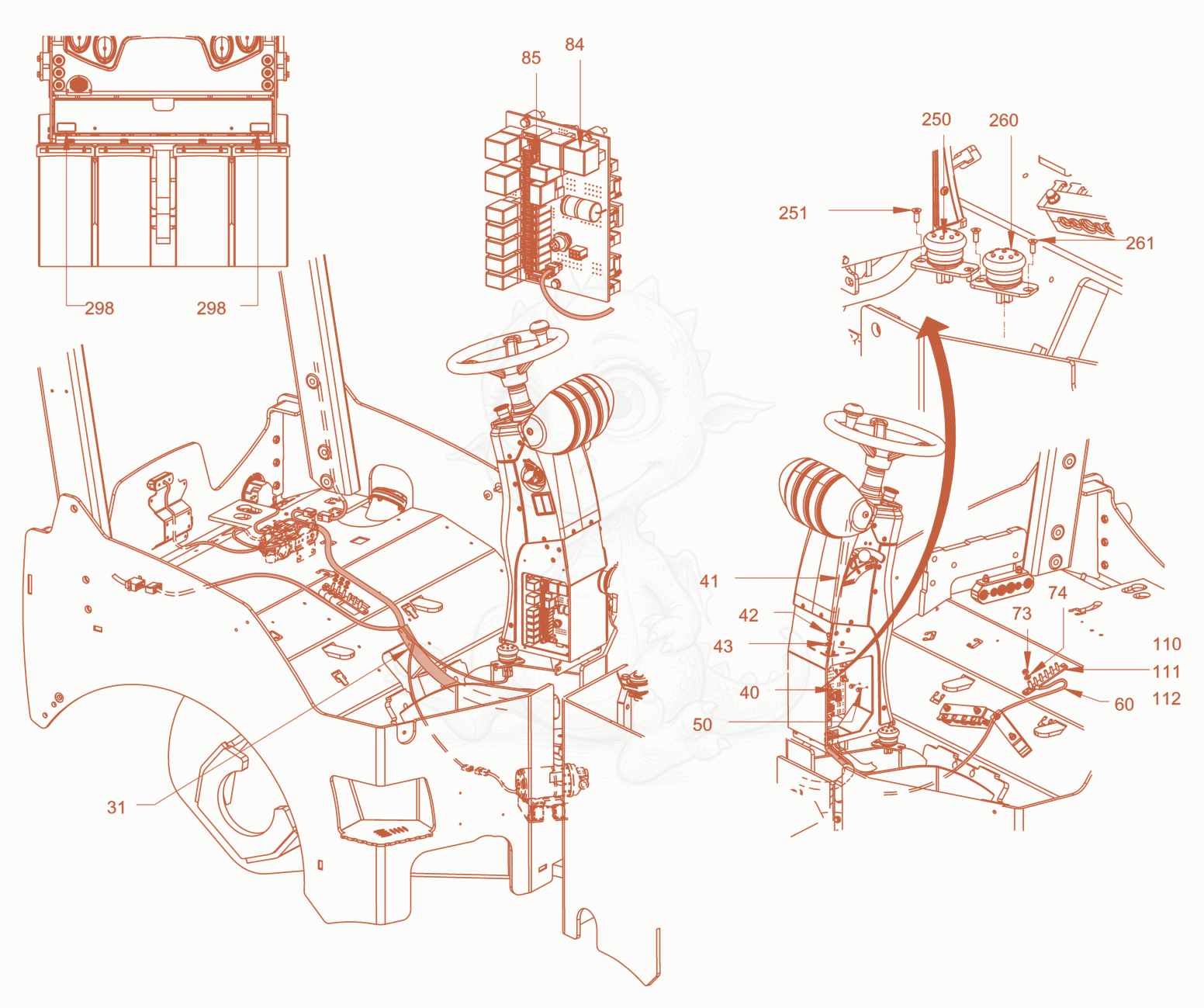

Exploded parts diagram of the Electrical system of a Wacker Neuson RD45-140C, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 315100012632
    $996.97
    Wire harness (rear frame) - 5100012632×1
  • 405100012575
    $19.14
    Wire harness - 5100012575×1
  • 415100052978Not stocked
    wire harness instrument panel×1
  • 425100052958Not stocked
    cheese-head screw×1
  • 435100012965
    $3.01
    Locking washer - 5100012965×1
  • 505100013594
    $3.88
    Safety screw - 5100013594×2
  • 605100012637
    $98.42
    Wire harness - 5100012637×1
  • 735100011915
    $1.57
    Hexagon nut - 5100011915×1
  • 745100011917
    $1.57
    Serrated lock washer - 5100011917×2
  • 845100011616
    $67.11
    Relay - 5100011616×1
  • 855100013580
    $1.83
    Blade fuse - 5100013580×1
  • 1105100011974
    $56.01
    Ground terminal - 5100011974×2
  • 1115100012965
    $3.01
    Locking washer - 5100012965×4
  • 1125100012572
    $20.09
    Hexagon screw - 5100012572×4
  • 2505100013650
    $373.29
    Foot switch - 5100013650×1
  • 2515100012890
    $1.57
    Countersunk screw - 5100012890×2
  • 2605100013650
    $373.29
    Foot switch - 5100013650×1
  • 2615100012890
    $1.57
    Countersunk screw - 5100012890×2
  • 2985100011748
    $17.63
    Rear reflector - 5100011748×2
