RD45-140 C Tandem Roller

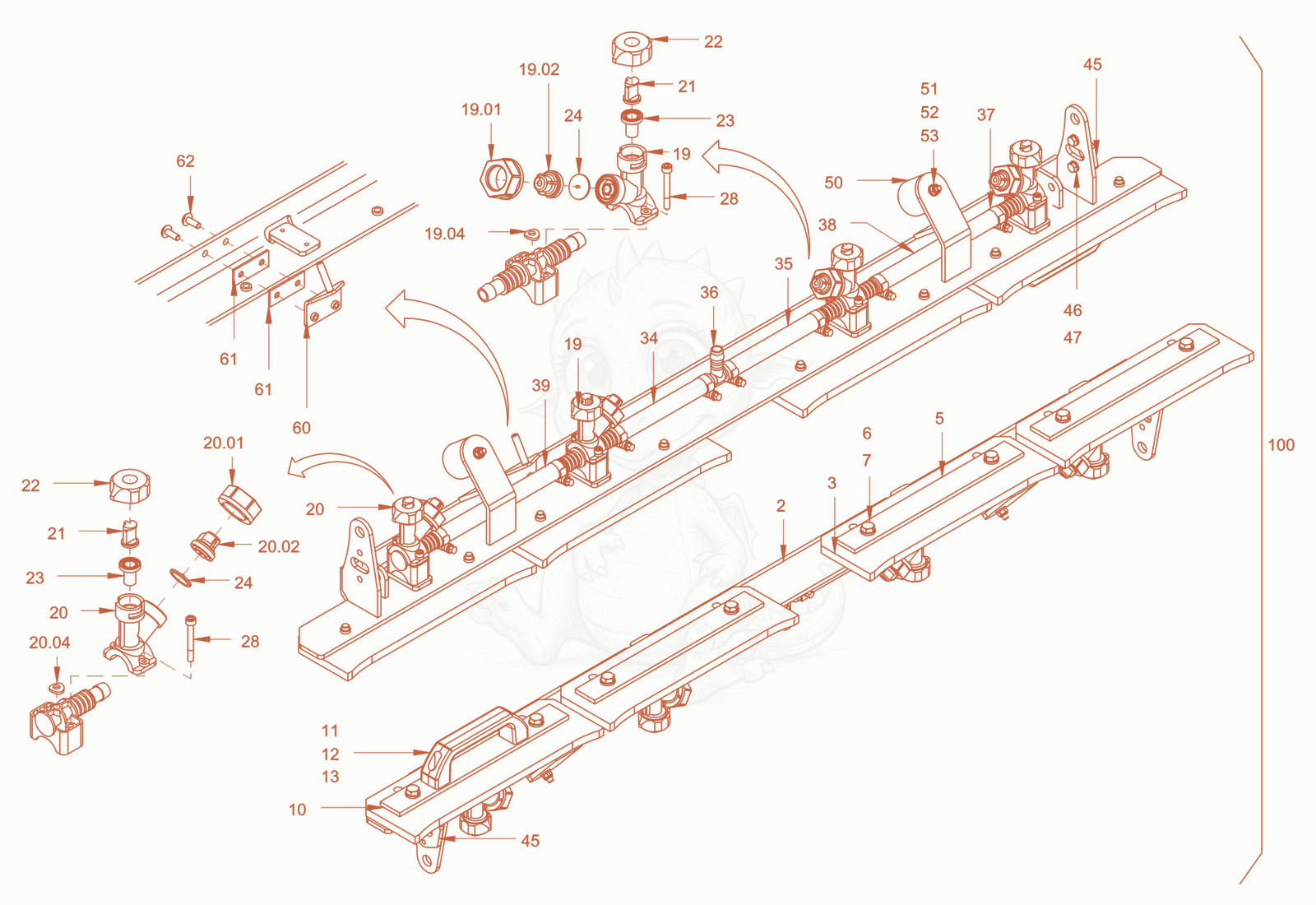

RD45-140CUS additive sprinkling Diagram
- Bracket - 5100012139×1
- Scraper - 5100012992×4
- Flat steel - 5100012374×4
- Hexagon screw - 5100013510×8
- Locking washer - 5100012966×8
- Metal plate - 5100013206×1
- Handle - 5100012932×1
- Countersunk screw - 5100012665×2
- Hexagon nut - 5100012545×2
- Nozzle holder - 5100011898×2
- Cap nut - 5100011535×1
- Membrane holder - 5100011651×1
- Sealing ring - 5100011752×1
- Nozzle holder - 5100011867×2
- Cap nut - 5100011535×1
- Membrane holder - 5100011651×1
- Sealing ring - 5100011752×1
- Sprinkler nozzle - 5100011529×4
- Nut - 5100011488×4
- Filtering screen - 5100011489×4
- Membrane - 5100011978×4
- Cheese-head screw - 5100011756×8
- Flexible tubing - 5100013223×0.15
- Flexible tubing - 5100013223×0.15
- T-hose connector - 5100012097×1
- Hose clip - 5100013367×8
- Flexible tubing - 5100013223×0.19
- Flexible tubing - 5100013223×0.19
- Washer - 5100013205×1
- Hexagon screw - 5100012572×2
- Locking washer - 5100012965×2
- Silentbloc - 5100012438×2
- Fillister head screw - 5100011744×2
- Washer - 5100012937×2
- hexagonal nut - 5100017998×2
- 605100033218Not stockedholder×1
- 615100039065Not stockedMetal Plate×2
- fillister head screw - 5100023198×2
- Scraper - 5100012138×1
