RD45-140 DPF

RD45-140DPF foldable scraper Diagram

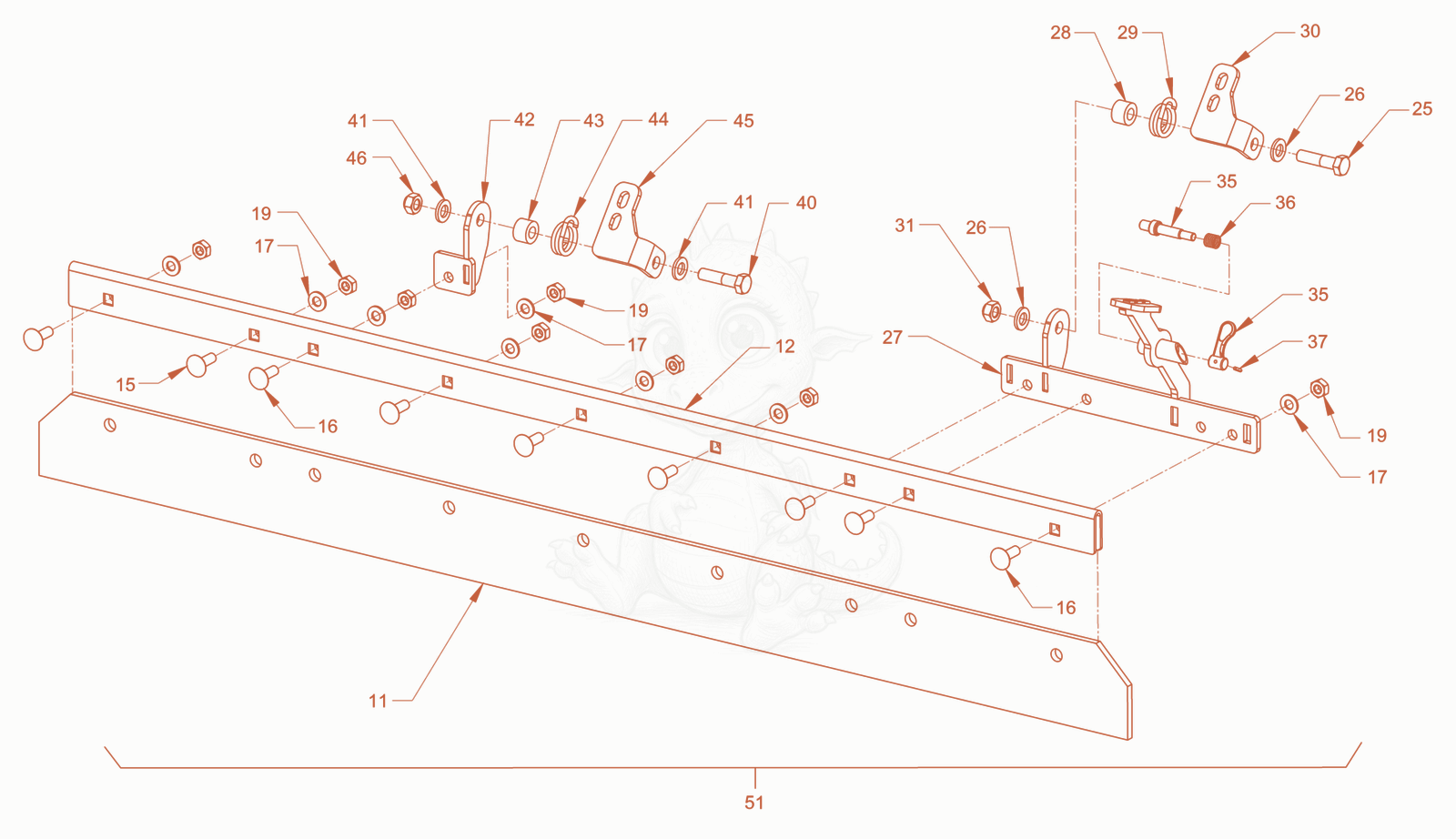

Exploded parts diagram of the foldable scraper of a Wacker Neuson RD45-140DPF, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

115100011843
$158.66
Scraper - 5100011843×1
125100012043
$764.63
Metal plate - 5100012043×1
155100012085
$3.15
Mushroom head screw - 5100012085×5
165100011584
$2.88
Mushroom head screw - 5100011584×4
175100013521
$1.49
Washer - 5100013521×9
195100012547
$1.49
Hexagon nut - 5100012547×9
255100029558
$4.15
hexagon screw - 5100029558×1
265100013577
$1.57
Washer - 5100013577×2
275100013039
$241.16
Foot lever - 5100013039×1
285100011682
$4.76
Bushing - 5100011682×1
295100013629
$31.21
Yoke spring - 5100013629×1
305100013041
$37.00
Bracket - 5100013041×1
315100035091
$2.44
safety nut - 5100035091×1
355100013574
$30.94
Toggle with bolt - 5100013574×1
365100013575
$5.03
Compression spring - 5100013575×1
375100013576
$4.50
Grooved pin - 5100013576×1
405100029558
$4.15
hexagon screw - 5100029558×1
415100013577
$1.57
Washer - 5100013577×2
425100013034
$69.32
Bracket - 5100013034×1
435100011682
$4.76
Bushing - 5100011682×1
445100013629
$31.21
Yoke spring - 5100013629×1
455100013041
$37.00
Bracket - 5100013041×1
465100035091
$2.44
safety nut - 5100035091×1
515100013052
$849.67
Scraper - 5100013052×1
