RD45-140 Tandem Roller

RD45-140US electrical system Diagram

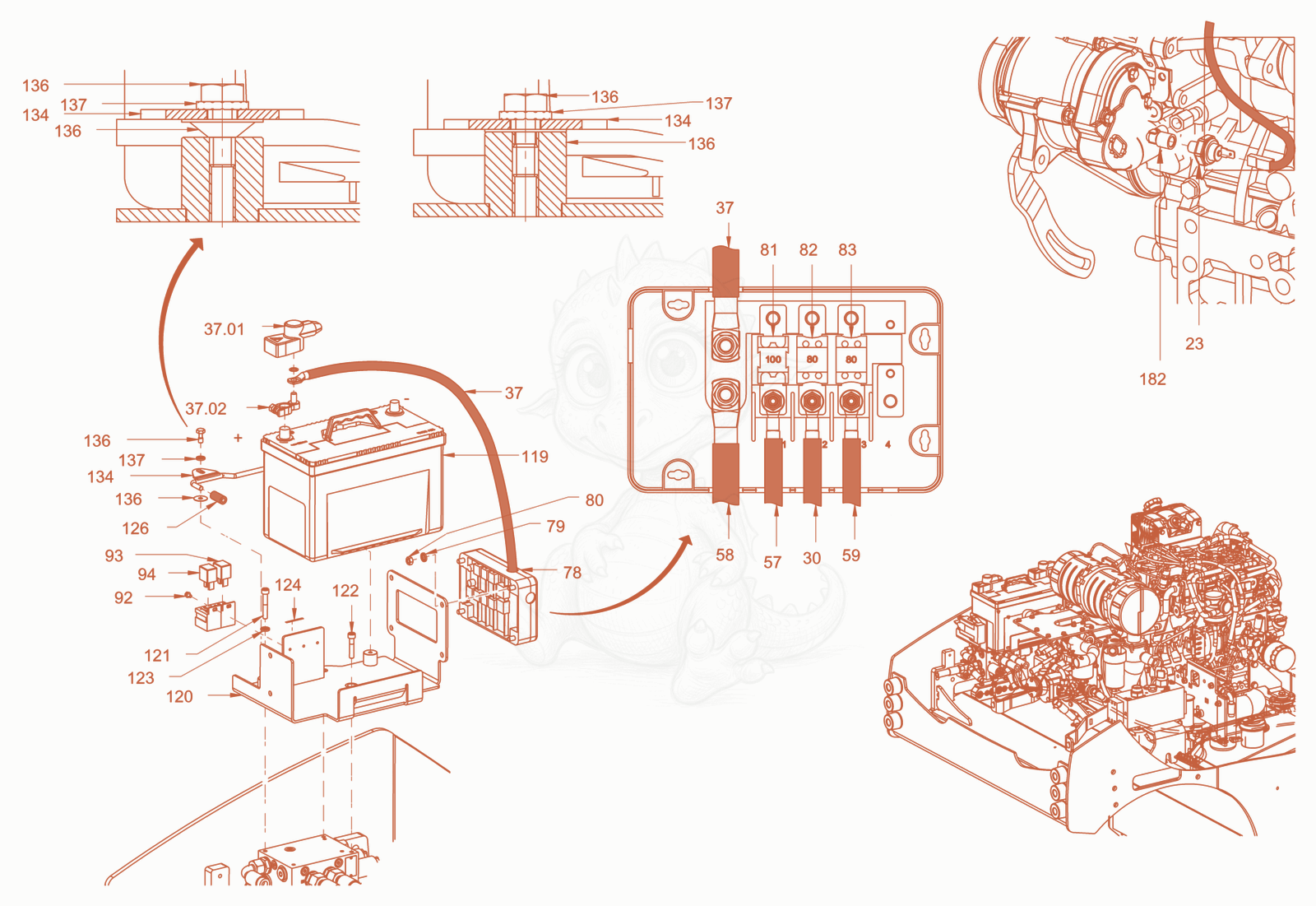

Exploded parts diagram of the electrical system of a Wacker Neuson RD45-140US, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 305100024940Not stocked
    wire harness (front frame)×1
  • 375100024943Not stocked
    cable harness×1
  • 375100022880
    $66.79
    battery terminal positive - 5100022880×1
  • 375100023208
    $59.40
    protecting cap - 5100023208×1
  • 575100024942Not stocked
    cable harness×1
  • 585100024941Not stocked
    cable harness×1
  • 595100024939Not stocked
    cable harness×1
  • 785100023097
    $556.97
    fuse socket - 5100023097×1
  • 795100012966
    $1.57
    Locking washer - 5100012966×4
  • 805100012546
    $1.57
    Hexagon nut - 5100012546×4
  • 815100023053
    $35.81
    fuse - 5100023053×1
  • 825100024919
    $44.33
    fuse - 5100024919×1
  • 835100024919
    $44.33
    fuse - 5100024919×1
  • 925100013594
    $3.88
    Safety screw - 5100013594×2
  • 935100011859
    $96.83
    Relay - 5100011859×1
  • 945100011859
    $96.83
    Relay - 5100011859×1
  • 1195100024870
    $776.26
    battery (acid) - 5100024870×1
  • 1205100024952Not stocked
    console×1
  • 1205100050702Not stocked
    battery support×1
  • 1215100012613
    $1.57
    Hexagon screw - 5100012613×2
  • 1215100024334
    $1.57
    cheese-head screw - 5100024334×2
  • 1225100012515
    $1.49
    Hexagon screw - 5100012515×1
  • 1225100013563
    $2.31
    Cheese-head screw - 5100013563×1
  • 1235100012966
    $1.57
    Locking washer - 5100012966×2
  • 1245100013412
    $22.18
    Edge protection - 5100013412×0.09
  • 1265100013216
    $28.30
    Flexible tubing - 5100013216×0.06
  • 1345100024996Not stocked
    holder×1
  • 1365100025009Not stocked
    cheese-head screw×2
  • 1375100013094
    $1.57
    Washer - 5100013094×2
  • 1385100050703Not stocked
    angle×1
  • 1825100050703Not stocked
    angle×1
