RD45-140 Tandem Roller

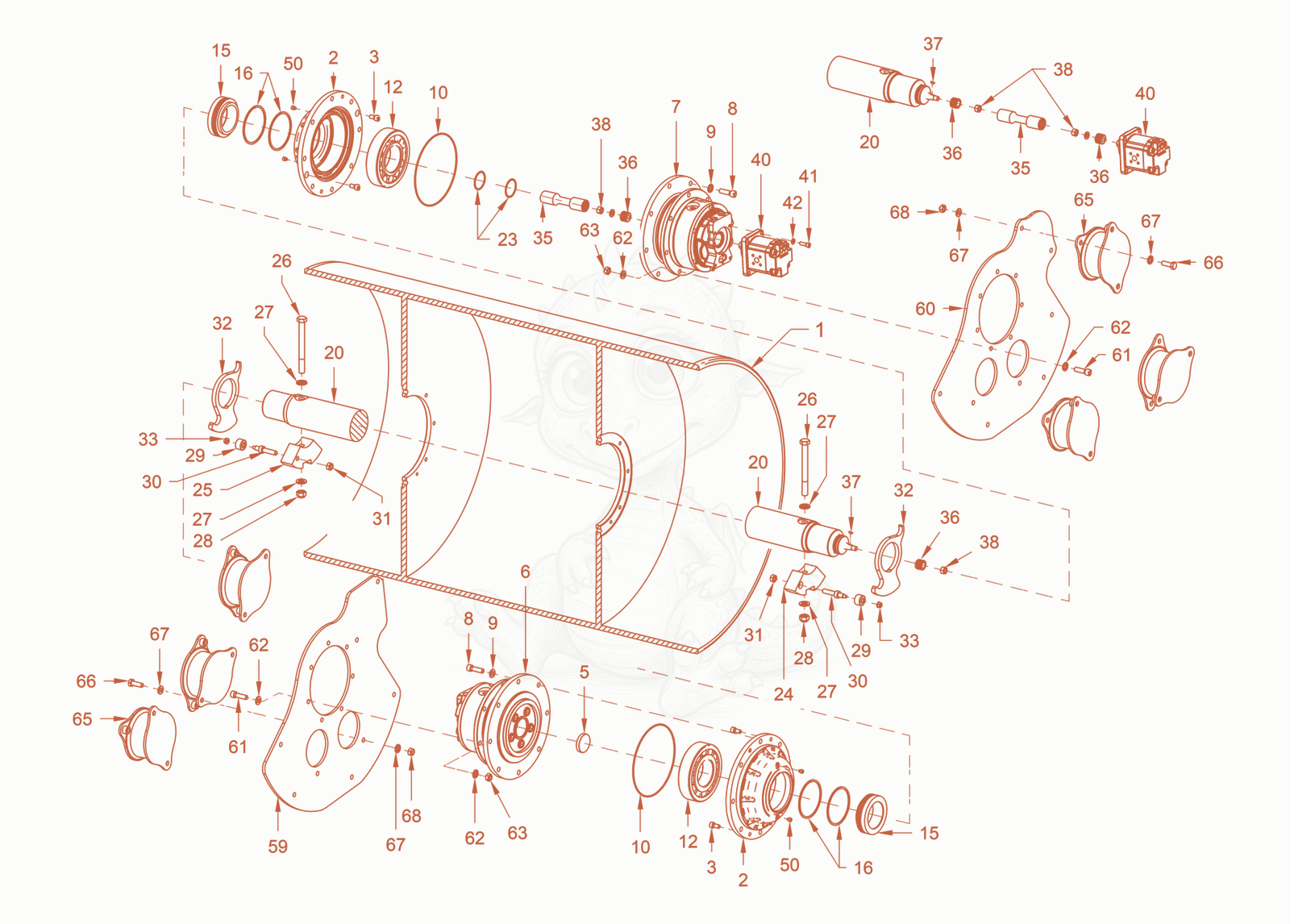

RD45-140US roller drum Diagram
- 15100011796Not stockedRoller drum×1
- Flange - 5100011809×2
- Cheese-head screw - 5100012725×4
- Cap - 5100011663×1
- Gear hub motor - 5100012316×1
- Gear hub motor - 5100012317×1
- Cheese-head screw - 5100012789×16
- Locking washer - 5100012968×16
- O-ring seal - 5100013423×2
- Cylindrical roller bearing - 5100011810×2
- Ring - 5100011808×2
- Disc ring - 5100011811×4
- 205100059523Not stockedunbalance shaft×1
- Disc ring - 5100011647×2
- Unbalance - 5100012149×1
- Unbalance - 5100012148×1
- Hexagon screw - 5100012514×2
- Locking washer - 5100012969×4
- Hexagon nut - 5100012405×2
- Bushing - 5100011655×2
- Threaded bolt - 5100012147×2
- Hexagon nut - 5100012548×2
- Unbalance loose - 5100011806×2
- Hexagon nut - 5100012534×2
- coupling shaft - 5100059541×1
- hub - 5100018007×2
- Disk spring - 5100013535×1
- Hexagon nut - 5100011646×2
- Gear motor - 5100012184×1
- Cheese-head screw - 5100012754×4
- Locking washer - 5100012966×4
- Threaded pin - 5100012868×4
- Driver - 5100013181×1
- Driver - 5100013182×1
- Cheese-head screw - 5100012510×14
- Locking washer - 5100012968×28
- Hexagon nut - 5100012548×14
- Silentbloc - 5100011699×6
- hexagon screw - 5100023184×12
- Locking washer - 5100012968×24
- Hexagon nut - 5100012548×12
