RD45-140 Tandem Roller

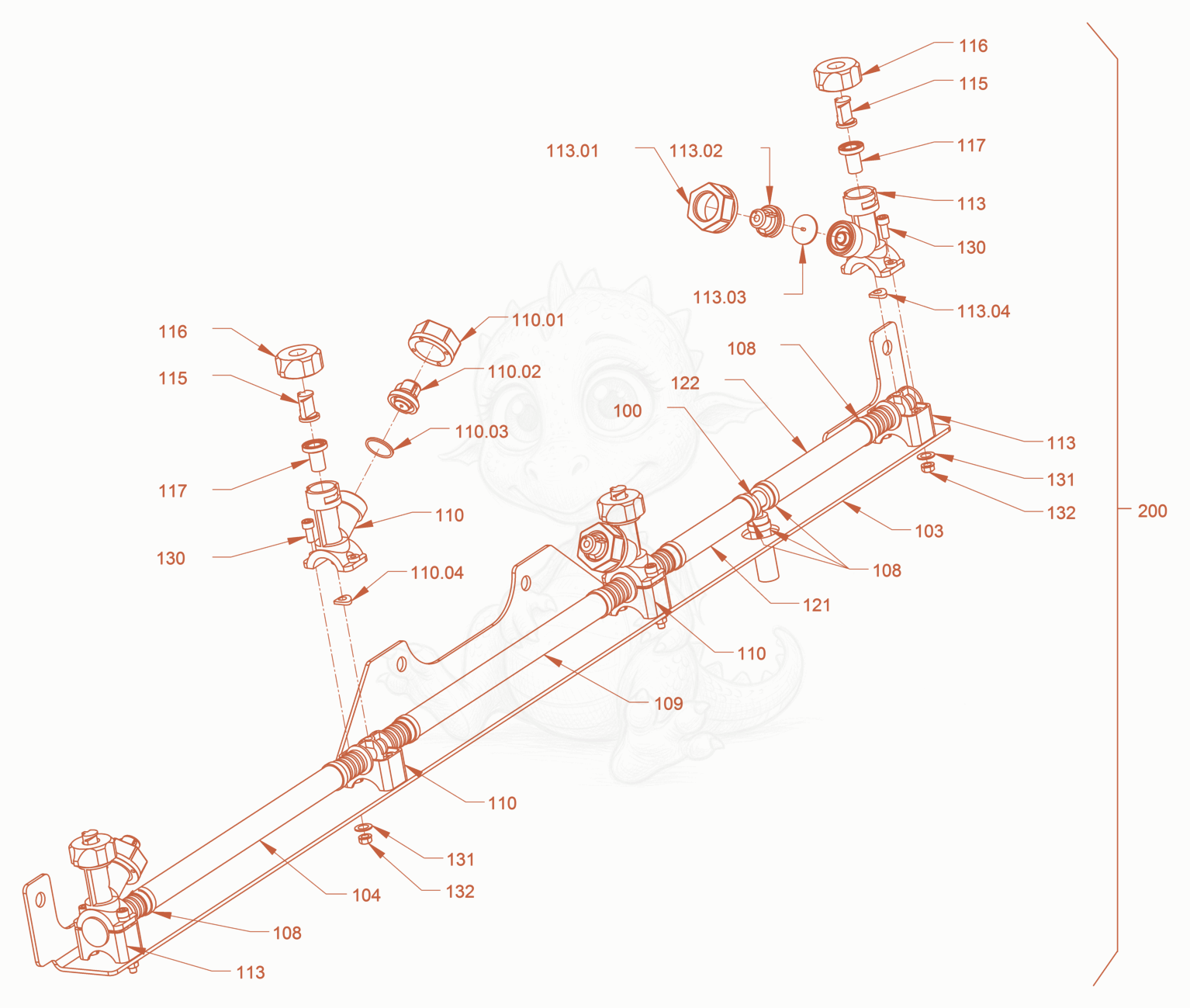

RD45-140US sprinkling Diagram
- T-reducing socket - 5100011863×1
- Angle - 5100012135×1
- Flexible tubing - 5100013639×0.27
- Hose clip - 5100013367×9
- Flexible tubing - 5100013639×0.27
- Nozzle holder - 5100011898×2
- Cap nut - 5100011535×1
- Membrane holder - 5100011651×1
- Sealing ring - 5100011752×1
- Membrane - 5100011978×1
- Nozzle holder - 5100011867×2
- Membrane - 5100011978×1
- Sealing ring - 5100011752×1
- Membrane holder - 5100011651×1
- Cap nut - 5100011535×1
- Sprinkler nozzle - 5100011529×4
- Nut - 5100011488×4
- Filtering screen - 5100011489×4
- Flexible tubing - 5100013639×0.11
- Flexible tubing - 5100013639×0.14
- Cheese-head screw - 5100012090×8
- Serrated lock washer - 5100013536×8
- Hexagon nut - 5100012898×8
- Sprinkler pipe - 5100012299×1
