RD7 RAW ROLLER W/O ENG,RED

RD7-RAW Engine Compartment Diagram

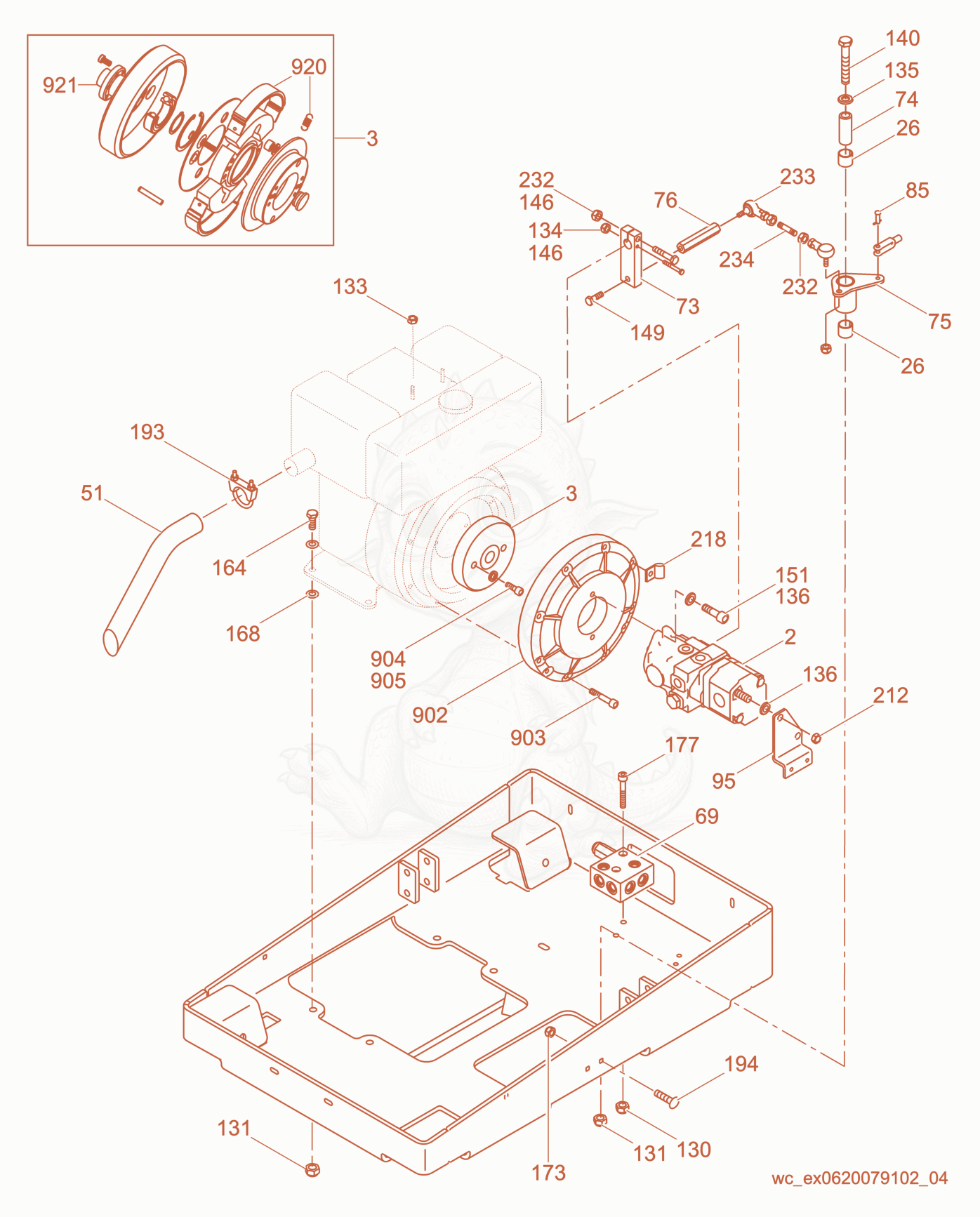

Exploded parts diagram of the Engine Compartment of a Wacker Neuson RD7-RAW, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000114101
    $5,931.15
    PUMP-HYDRAULIC, cpl - 5000114101×1
  • 35000117138
    $1,318.02
    CLUTCH-CENTRIFUGAL - 5000117138×1
  • 265000112391
    $2.18
    BEARING-DU,20 X 20 - 5000112391×2
  • 695000112389
    $400.77
    MANIFOLD-HYDRAULIC - 5000112389×1
  • 735000112365
    $48.59
    lever - 5000112365×1
  • 745000112390
    $39.06
    sleeve - 5000112390×1
  • 755000112396
    $125.46
    PIVOT WELDMENT P-5000176420 - 5000112396×1
  • 765000112395
    $118.70
    ROD-LEVER,PUMP - 5000112395×1
  • 855000114113
    $7.59
    PIN-CLEVIS,ADJ. - 5000114113×1
  • 955000114884
    $26.39
    BRACKET-HYDRAULIC PUMP P-5000176420 - 5000114884×1
  • 1305000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×12
  • 1315000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×12
  • 1345000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×1
  • 1355000010620
    $0.26
    WASHER B13 FLAT - 5000010620×3
  • 1365000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×12
  • 1405000011307
    $1.28
    SCREW M12 X 80 HX.HD. - 5000011307×1
  • 1445000011342
    $0.42
    SCREW M8 X 45 HX.HD. - 5000011342×1
  • 1465000011364
    $0.15
    SCREW M5 X 40 HX.HD - 5000011364×1
  • 1495000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×13
  • 1515000011533
    $1.21
    SCREW M10 X 35 SOC.HD. - 5000011533×2
  • 1645000016434
    $3.63
    SCREW M12 X 40-10.9,HX HD - 5000016434×6
  • 1685000026025
    $4.21
    WASHER-STEEL,FLAT - 5000026025×8
  • 1735000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×8
  • 1775000102444
    $59.53
    SCREW M10 X 70,SOC.HD. - 5000102444×2
  • 1945000111845
    $0.42
    BOLT-CARRIAGE M8X25 - 5000111845×4
  • 2125000010883
    $0.29
    NUT M10 8,HEX - 5000010883×2
  • 2185000115078
    $6.39
    CLAMP-TUBE CLIP - 5000115078×1
  • 2325000028585
    $0.14
    NUT 5/16-24,HEX. - 5000028585×3
  • 2335000084409
    $18.40
    FITTING-BALL JOINT,ROD END - 5000084409×2
  • 2345000115146
    $3.87
    ROD-THREADED - 5000115146×1
  • 9025000115056
    $1,531.08
    MOUNT-HYD.PUMP - 5000115056×1
  • 9035000017188
    $11.94
    SCREW M10 X 60 10.9,SOC - 5000017188×10
  • 9045000011542
    $0.37
    SCREW M8 X 25 SOC.HD. - 5000011542×2
  • 9055000150763
    $0.65
    WASHER-LOCK,M8 - 5000150763×2
  • 9205000160968
    $89.05
    SET-CLUTCH SPRING BRAKE SHOE - 5000160968×1
  • 9215000161328
    $474.94
    HUB-CLUTCH,SPLINED - 5000161328×1
