RD7A Tandem Roller

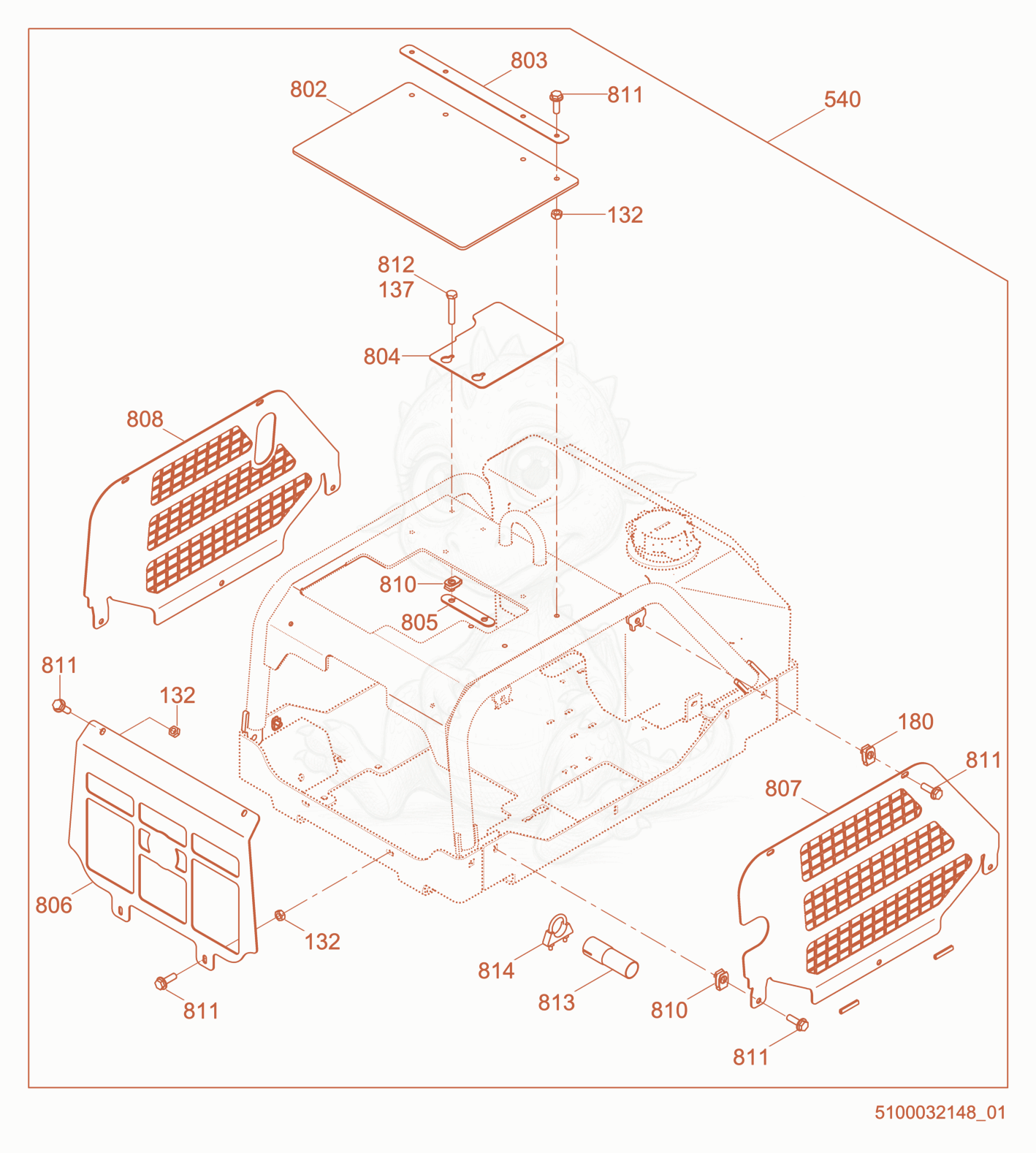

RD7A Protection Kit Diagram

Exploded parts diagram of the Protection Kit of a Wacker Neuson RD7A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1325000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×8
  • 1375000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×2
  • 1805200002421
    $0.99
    NUT-CLIP,M8 X 1/4 THK - 5200002421×4
  • 8025100030210
    $35.73
    COVER-FUEL FLAP - 5100030210×1
  • 8035200025027Not stocked
    Cover plate×1
  • 8045200025026Not stocked
    Guard plate×1
  • 8055200025032Not stocked
    Mounting plate×1
  • 8065200025029Not stocked
    Engine guard×1
  • 8075200025068Not stocked
    Left side plate×1
  • 8085200025078Not stocked
    Right side plate×1
  • 8105000110969
    $0.65
    NUT-LOCK,M8 CLIP - 5000110969×8
  • 8115000155213
    $0.96
    SCREW-M8 X 25 HX SER FLG ZP - 5000155213×18
  • 8125000011453
    $0.47
    SCREW M8 X 45 HX.HD. - 5000011453×2
