RD7AFHRC Water tank cpl. Diagram

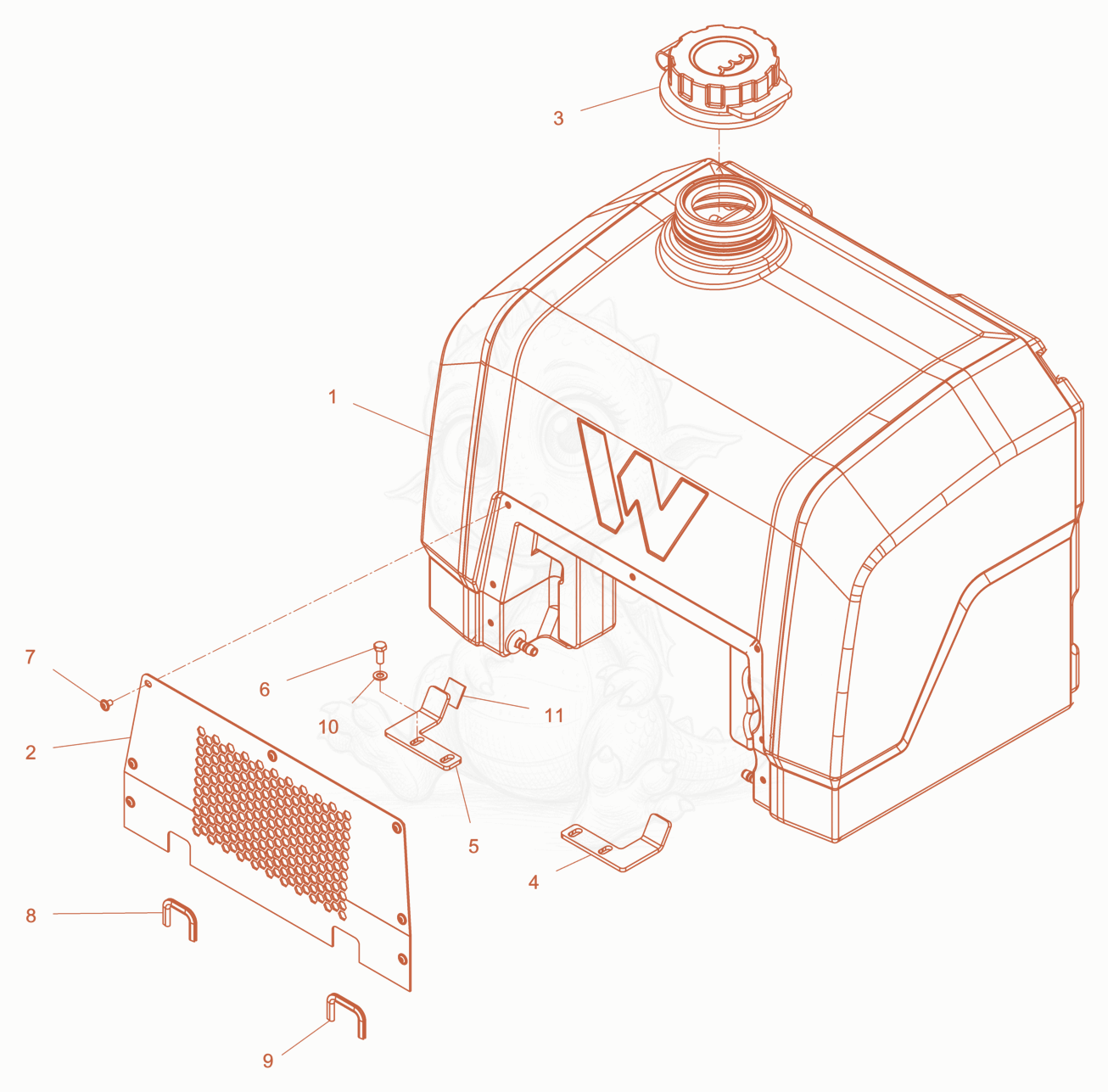

Exploded parts diagram of the Water tank cpl. of a Wacker Neuson RD7AFHRC, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100006724
    $1,148.88
    Water tank - 5100006724×1
  • 25100006782
    $319.01
    Grill - 5100006782×1
  • 35100006589
    $120.71
    Tank cover - 5100006589×1
  • 45100006640
    $52.97
    Retaining plate - 5100006640×1
  • 55100006639
    $52.97
    Retaining plate - 5100006639×1
  • 65100006559
    $4.25
    Hexhead screw - 5100006559×4
  • 75100006660
    $4.25
    Bolt - 5100006660×7
  • 85100006862
    $2.99
    Edge protection 95mm - 5100006862×1
  • 95100006863
    $3.31
    Edge protection 103mm - 5100006863×1
  • 105100006553
    $0.88
    Washer - 5100006553×4
  • 115100006685
    $5.43
    Rubber insert 26x2 - 5100006685×2
  • 125100007601Not stocked
    Hose connection×2
  • 135100007602Not stocked
    Plug×2
