RD7H-ES Tandem Roller

RD7H-ES Upper Frame cpl. Diagram

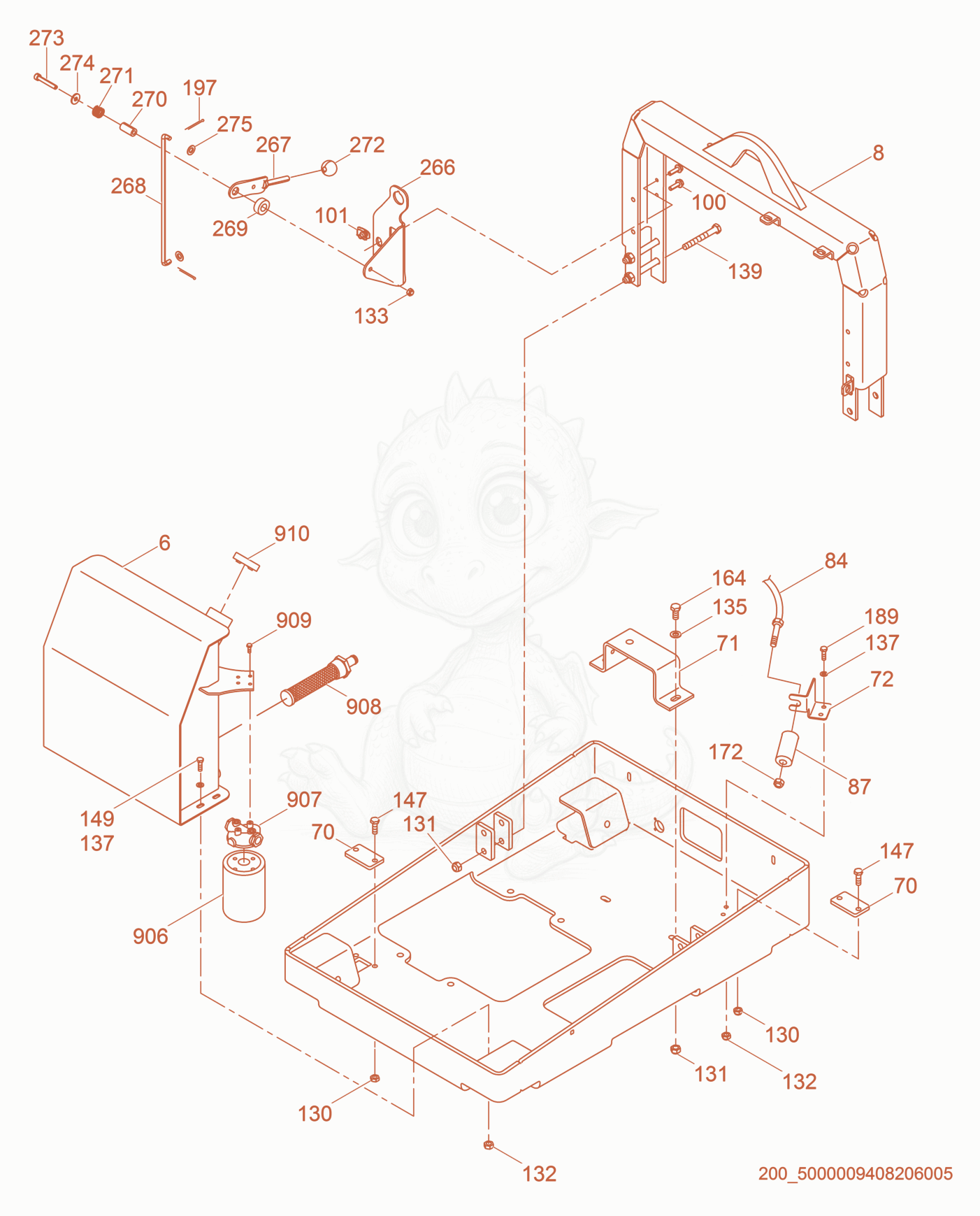

Exploded parts diagram of the Upper Frame cpl. of a Wacker Neuson RD7H-ES, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 65000158791
    $2,748.24
    TANK-HYDRAULIC - 5000158791×1
  • 85000158808
    $651.66
    HOOK-LIFTING DEVICE - 5000158808×1
  • 705000112194
    $10.55
    plate - 5000112194×2
  • 715000112164
    $37.17
    BRACKET-WATER TANK - 5000112164×1
  • 725000112254
    $26.79
    BRACKET-CABLE - 5000112254×1
  • 845000114112
    $151.95
    CABLE-TRAVEL - 5000114112×1
  • 875000114115
    $85.48
    cable-return spring - 5000114115×1
  • 1005000155842
    $1.28
    SCREW M6X20 HX HD,SERR FL BLK - 5000155842×2
  • 1015000150959
    $0.52
    NUT-LOCK,M6 CLIP,PHOSPHATE - 5000150959×2
  • 1305000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×5
  • 1315000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×6
  • 1325000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×5
  • 1335000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×1
  • 1355000010620
    $0.26
    WASHER B13 FLAT - 5000010620×2
  • 1375000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×6
  • 1395000011294
    $1.54
    SCREW M12 X 100 HX.HD. - 5000011294×4
  • 1475000011439
    $0.23
    SCREW M10 X 30 HX.HD - 5000011439×4
  • 1495000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×4
  • 1645000017909
    $0.85
    SCREW M12 X 35 10.9,HX. - 5000017909×2
  • 1725000028746
    $0.06
    NUT-LOCK 1/4-28,HEX,NYLON INS. - 5000028746×1
  • 1895000087023
    $0.35
    SCREW M8 X 22,HX.HD,SER.FLG - 5000087023×1
  • 1975000114328
    $0.04
    PIN-COTTER 1.6 X 16 - 5000114328×2
  • 2665200009591
    $20.59
    THROTTLE PLATE,2-POSITION P-5000112006 - 5200009591×1
  • 2675200009980Not stocked
    Throttle lever×1
  • 2685200009624
    $156.32
    THROTTLE ROD,RD7 - 5200009624×1
  • 2695200009620
    $0.32
    SPACER-NYLON .505 X 1.00 X .375 - 5200009620×1
  • 2705200009621
    $6.61
    SPACER-STEEL .252 X .50 X 1.00 - 5200009621×1
  • 2715200009622
    $21.93
    SPRING-COMP .66 X 1.00 LG - 5200009622×1
  • 2725200009623
    $5.02
    KNOB-BLACK PHENOLIC BALL - 5200009623×1
  • 2735000011547
    $0.56
    SCREW M6 X 40 SOC.HD. - 5000011547×1
  • 2745000010373
    $0.03
    WASHER B6.4 FLAT - 5000010373×1
  • 2755000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×2
  • 9065000078989
    $26.28
    FILTER-HYDRAULIC - 5000078989×1
  • 9075000081202
    $50.33
    COVER-OIL FILTER,HYD. - 5000081202×1
  • 9085000111073
    $260.91
    FILTER-INLET STRAINER - 5000111073×1
  • 9095000025703
    $0.83
    SCREW 1/4-20 X 5/8,FLANGE LOCK - 5000025703×2
  • 9105000113816
    $41.09
    CAP-FILLER NECK - 5000113816×1
