RD 7ES

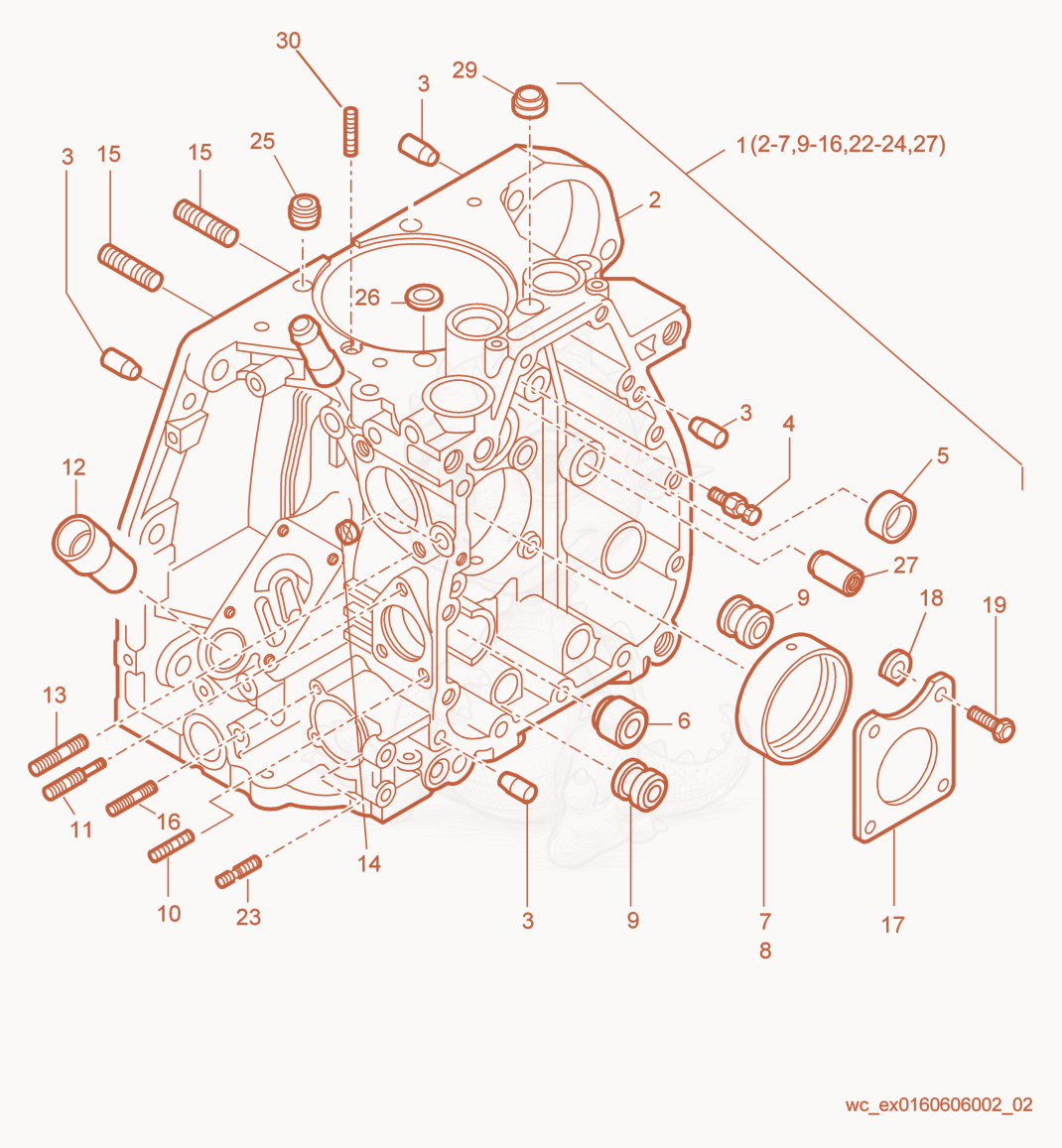

RD7H-ESEU Crankcase cpl. Diagram
- crankcase - 5000126918×1
- PIN-CYLINDER, 8M 6X20 - 5000108694×4
- JET-OIL - 5000104392×1
- BEARING - 5000226589×1
- plug - 5000202384×1
- BEARING-SLIDE - 5000104393×1
- BEARING-SLIDE 0.5MM - 5000106637×1
- plug - 5000202386×1
- STUD-M6X16 - 5000202433×2
- BOLT-STUD - 5000094925×1
- TUBE-OIL,FILLER - 5000099415×1
- STUD M8 X 20,8.8 - 5000202426×2
- DISC-ST A3C - 5000202447×1
- STUD M8 X 20,10.9 - 5000202420×8
- STUD - 5000099414×2
- WASHER-CHECK X-5100013801 - 5000098453×1
- WASHER 1.2MM - 5000098454×1
- WASHER 1.05MM - 5000098455×1
- Screw - 5000098456×4
- STUD - 5000099414×1
- RING-RUBBER - 5000126919×2
- RING-RUBBER - 5000104397×2
- BUSHING - 5000202406×1
