RD 7ES

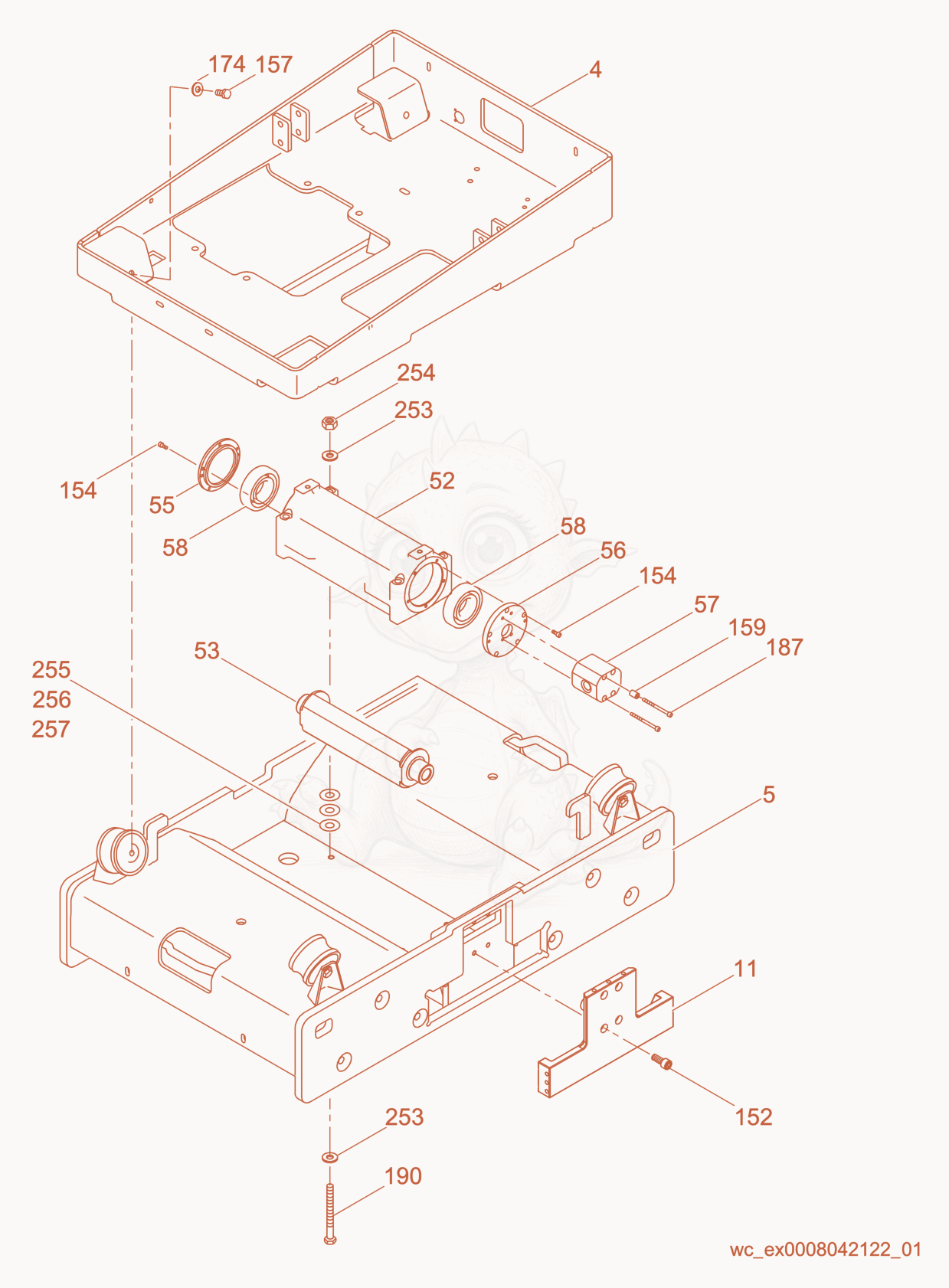

RD7H-ESEU Exciter cpl. Diagram

Exploded parts diagram of the Exciter cpl. of a Wacker Neuson RD7H-ESEU, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45000112124
    $3,427.47
    FRAME-UPPER,WELDMENT - 5000112124×1
  • 55000118592
    $3,058.42
    FRAME-LOWER - 5000118592×1
  • 115000175830
    $4,348.87
    BLOCK-PORTING - 5000175830×1
  • 525000111625
    $781.24
    HOUSING-EXCITER,MACHINED P-5000176420 - 5000111625×1
  • 535000151045
    $666.57
    KIT SHAFT-COUPLING ASSEMBLY - 5000151045×1
  • 555000111839
    $206.94
    COVER-EXCITER HOUSING - 5000111839×1
  • 565000111840
    $99.13
    COVER-EXCITER HOUSING MOTOR - 5000111840×1
  • 575000112363
    $1,095.56
    MOTOR-HYDRAULIC EXCITER - 5000112363×1
  • 585000112002
    $29.23
    BEARING-RADIAL BALL 6309 C4 - 5000112002×2
  • 1525000011535
    $0.59
    SCREW M10 X 25 SOC.HD. - 5000011535×4
  • 1545000011553
    $0.15
    SCREW M6 X 16 SOC.HD. - 5000011553×10
  • 1575000013002
    $0.37
    SCREW M12 X 25 HX.HD. - 5000013002×4
  • 1595000119195
    $16.82
    Spacer - 5000119195×2
  • 1745000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×4
  • 1875000082477
    $0.65
    SCREW M6 X 80 8.8,SOC. - 5000082477×2
  • 1905000177629
    $14.51
    SCREW M12 X 130,10.9 MECH ZN - 5000177629×4
  • 2535000021465
    $2.70
    WASHER-LOCK HS12,HIGH TENSION - 5000021465×8
  • 2545000177630
    $1.31
    NUT M12,CLASS 10,MECH.ZN - 5000177630×4
  • 2555000119241
    $37.36
    SHIM 35MM X 14MM X .127MM - 5000119241×2
  • 2565000119242
    $26.48
    SHIM 35MM X 14MM X .254MM - 5000119242×2
  • 2575000119243
    $2.41
    SHIM 35MM X 14MM X .508MM - 5000119243×2
