RD7H-S ROLLER,DOUBLE DRUM

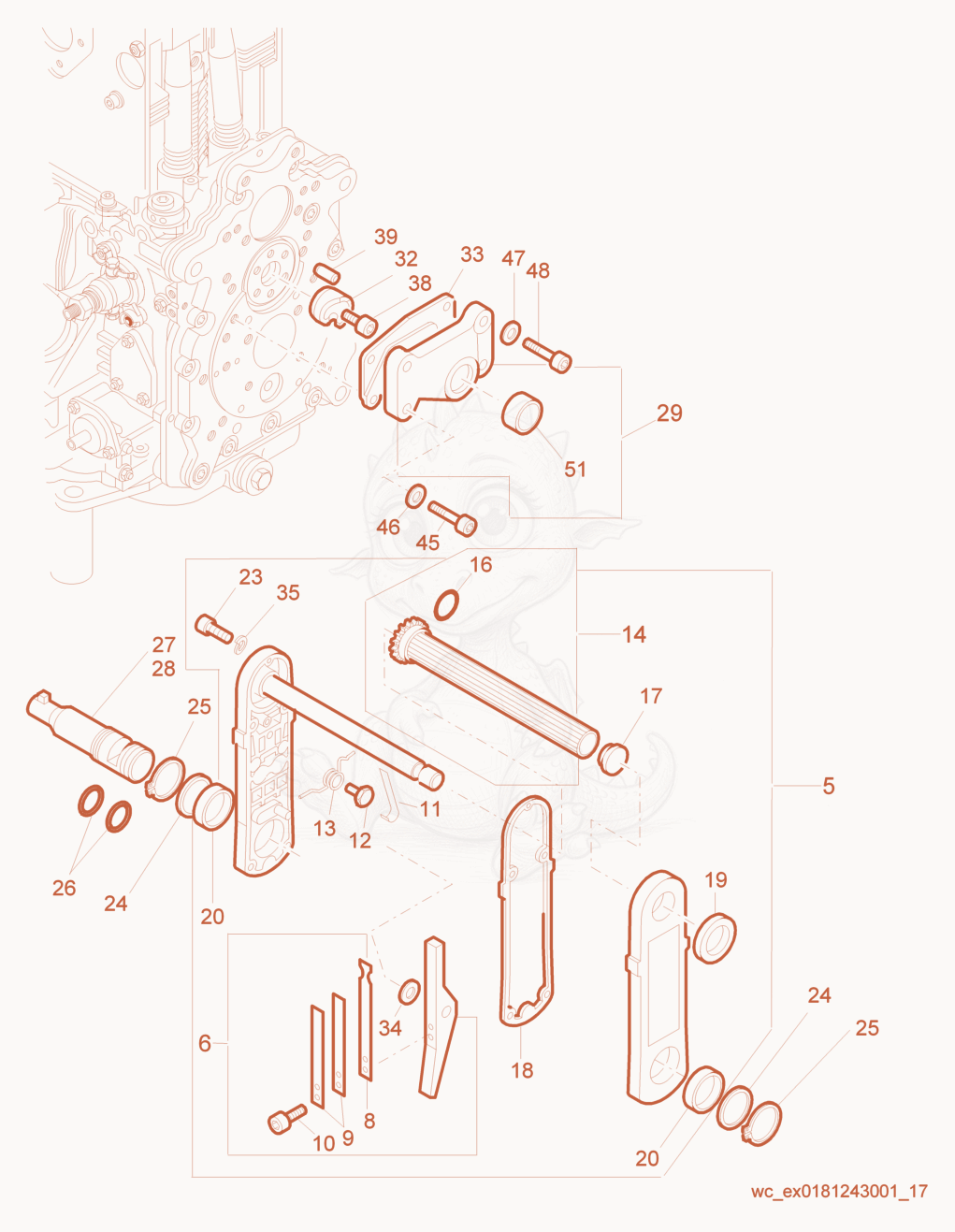

RD7H-S Starting Handle Diagram
- HANDLE COMPLETE - 5000202473×1
- LEVER-STARTING CRANK - 5000064064×1
- SPRING - 5000066157×1
- SPRING - 5000066158×2
- SCREW M5 X 8 SOC.HD. - 5000049190×2
- SPRING-LEAFTYPE - 5000069547×1
- Screw - 5000069548×1
- SPRING - 5000069549×1
- HANDLE COMPLETE - 5000202369×1
- O-Ring - 5000105765×1
- Plug - 5000064062×1
- GASKET-STARTING CRANK - 5000064068×1
- SEAL-SHAFT 28 X 35 X 4 - 5000064063×1
- BUSHING - 5000066156×2
- SCREW-ALLEN M6X25 - 5000203133×5
- Shim - 5000227598×1
- CLIP-RETAINING A30 X 1.5 - 5000202441×2
- O-RING 26 X 1.5 - 5000064067×2
- SHAFT-STARTING - 5000105766×1
- GUIDE-STARTING CRANK - 5000095041×1
- Starting Jaw - 5000097419×1
- Shim Ring - 5000064065×1
- WASHER-SPRING 6 A3C - 5000151456×5
- SCREW M8 X 12,ALLEN - 5000201372×1
- PIN-CYLINDER - 5000202453×1
- SCREW-ALLEN,M8 X 35 - 5000202440×2
- WASHER-FLAT 8.4 ST A3C - 5000151553×2
- WASHER-10.5 - 5000202434×2
- SCREW-ALLEN,M10 X 35 - 5000202448×2
- BUSHING - 5000103976×1
