RD 7S

RD7H-SEU Drum cpl. Diagram

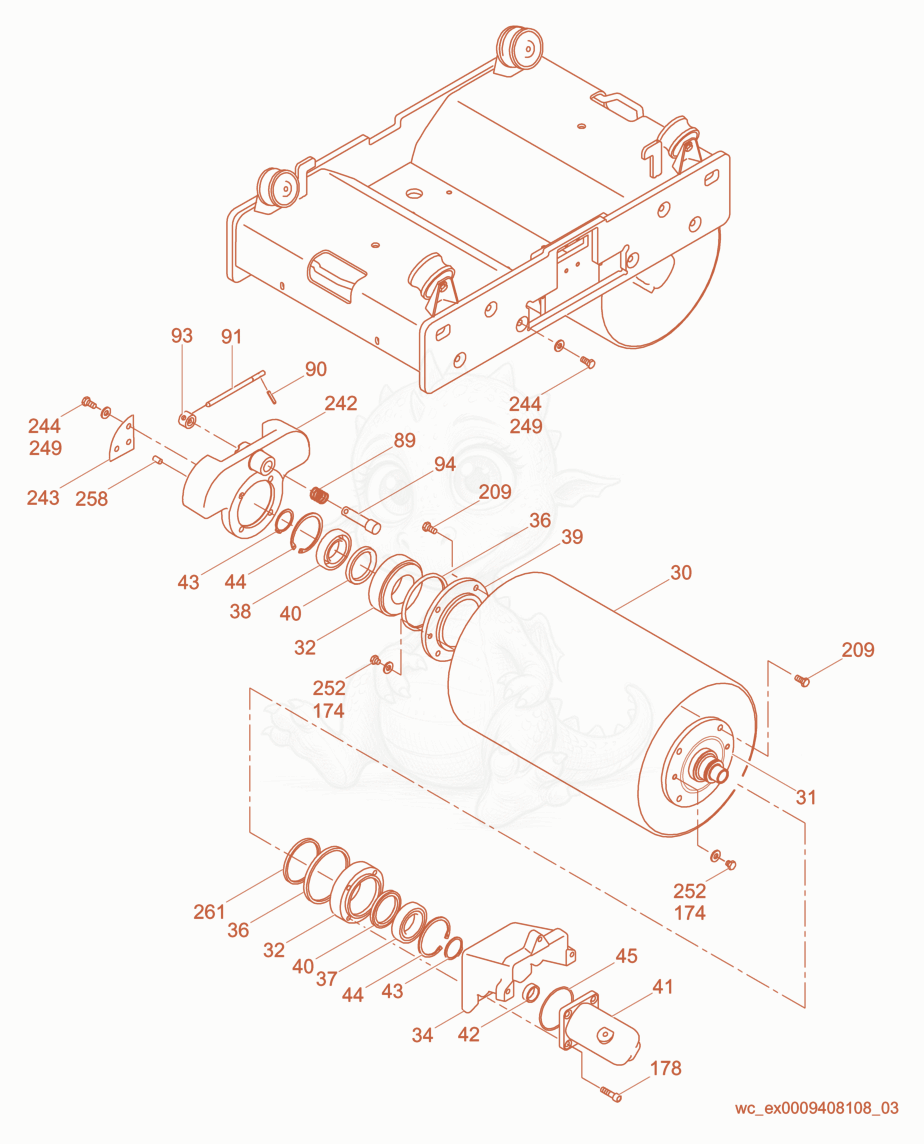

Exploded parts diagram of the Drum cpl. of a Wacker Neuson RD7H-SEU, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

305000117966
$2,838.03
DRUM-ROLLER - 5000117966×2
315000118376
$563.86
INSERT-HUB ASSEMBLY - 5000118376×2
325000111738
$582.15
HUB-BEARING - 5000111738×4
345000117986
$176.54
DRUM SUPPORT - 5000117986×2
365000111811
$40.17
SEAL-V-RING 135X148X10 - 5000111811×4
375000112003
$211.92
BEARING-CYL.ROLLER NUP211EG C3 - 5000112003×2
385000117978
$138.27
BEARING-CYL.ROLLER NJ211 C3 - 5000117978×2
395000117989
$735.37
HUB-RIGHT - 5000117989×2
405000112053
$46.43
SEAL-SHAFT 3.00 X 3.75 - 5000112053×4
415000112054
$1,765.52
MOTOR-HYDRAULIC DRIVE - 5000112054×2
415000154255
$79.66
KIT-SEAL,RD7 MOTOR - 5000154255×1
425000112084
$77.52
BEARING-SLEEVE - 5000112084×2
435000119192
$2.45
RING-RETAINING,EATON 1129R - 5000119192×4
445002001725
$2.33
RET.RING-INT 100MMX3MM, - 5002001725×4
455000114284
$1.06
O-RING 4.234 X .139 N674-70 - 5000114284×2
895000118005
$13.85
SPRING-BRAKE - 5000118005×1
905000013769
$0.24
PIN 6 X 30 ROLL - 5000013769×1
915000118007
$157.94
HANDLE-BRAKE P-5000175819 - 5000118007×1
935000118006
$13.45
CONNECTOR-BRAKE - 5000118006×1
945000118004
$56.77
BOLT-BRAKE - 5000118004×1
1745000031565
$0.48
WASHER-LOCK A12 - 5000031565×8
1785000049203
$8.43
SCREW M12X45 SC.H.GR10.9,PLAIN - 5000049203×8
2095000016433
$0.35
SCREW M12 X 25-10.9,HX HD - 5000016433×16
2425000117944
$835.97
SUPPORT-DRUM - 5000117944×2
2435000117967
$1.31
SHIM-DRUM SUPPORT - 5000117967×20
2445000080596
$2.08
WASHER 14 SPR.LOCK,MZP - 5000080596×18
2495000118606
$1.93
Din 933 M14x45 10.9 - 5000118606×12
2525000014316
$0.98
SCREW M12 X 16 HX.HD. - 5000014316×8
2585002004705
$0.32
FITTING-GREASE AM6 - 5002004705×2
2615000165023
$17.22
SEAL-V RING - 5000165023×2
