RD7Heh

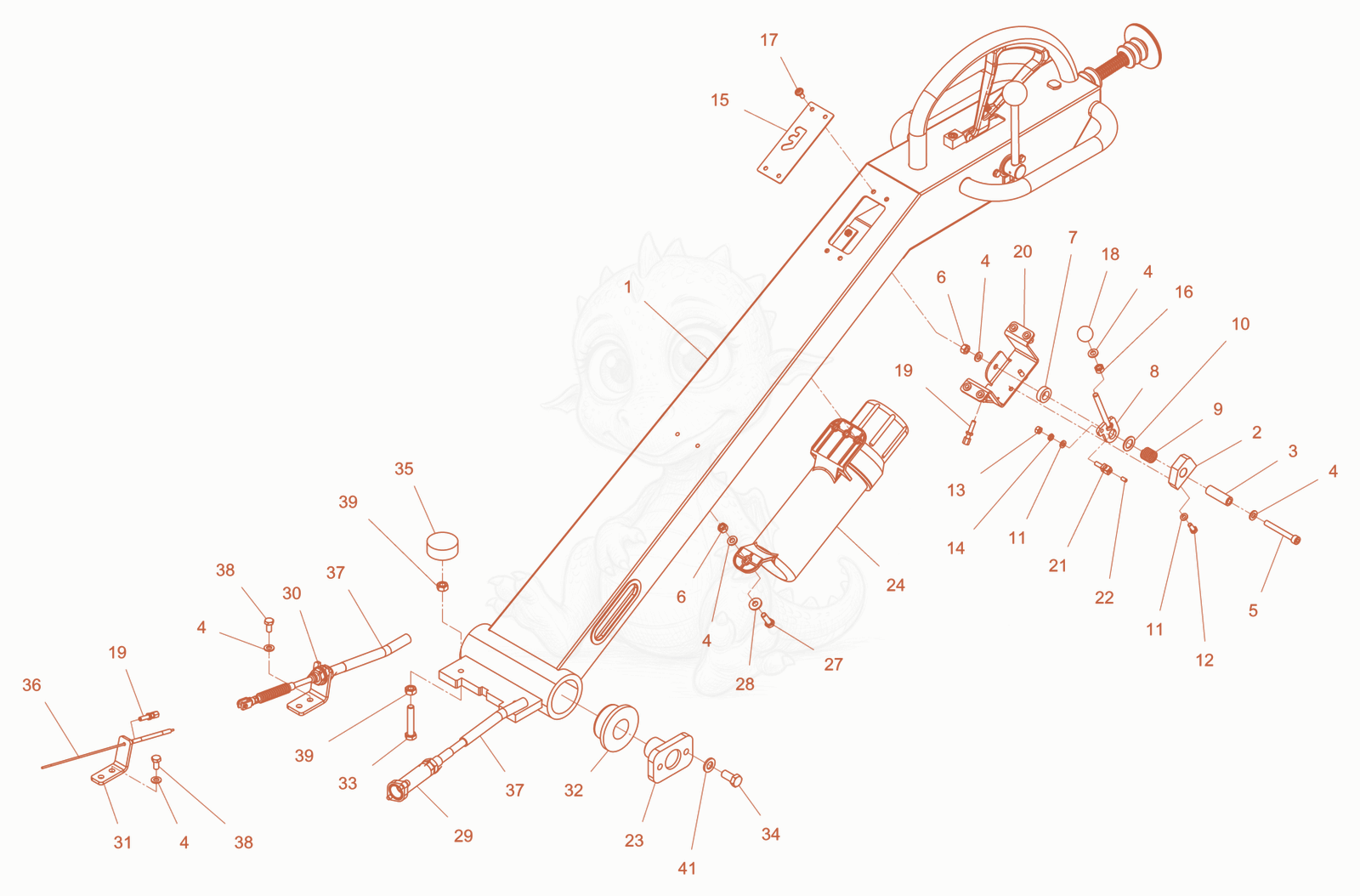

RD7HEH Center Pole cpl. Diagram
- Centre pole - 5100006841×1
- Plate - 5100006705×1
- Collar - 5100006706×1
- Washer - 5100006553×10
- Cyl. Head screw - 5100006632×1
- Nut - 5100006543×4
- Spacing ring - 5100006707×1
- Lever - 5100006836×1
- Spring - 5100006708×1
- Washer - 5100006709×1
- Washer - 5100006546×3
- Hexhead screw - 5100006539×2
- Nut - 5100006542×1
- Nut - 5100006740×1
- Cover - 5100006834×1
- Nut - 5100006562×1
- Bolt - 5100006661×4
- Handle ball M8 - 5100006739×1
- Adjustment screw M6 - 5100006779×2
- Bracket - 5100006835×1
- Pivot - 5100006831×1
- Threaded pin M5x6 - 5100006866×1
- Tow Bar Fixing - 5100006636×2
- Document box - 5100006780×1
- Hexhead screw - 5100006537×3
- Washer - 5100006547×3
- Valve cover - 5100006610×1
- Bracket - 5100006599×1
- Bracket - 5100006651×1
- Drawbar busch M4 - 5100006583×2
- Hexhead screw - 5100006652×2
- Hexhead screw - 5100006616×4
- Drawbar buffer M10 - 5100006623×2
- Bowden cable Hatz - 5100006846×1
- Protective sleeve 7-10mm - 5100006524×0.3
- Hexhead screw - 5100006558×4
- Nut - 5100006563×4
- Washer - 5100006538×4
