RD7Hf

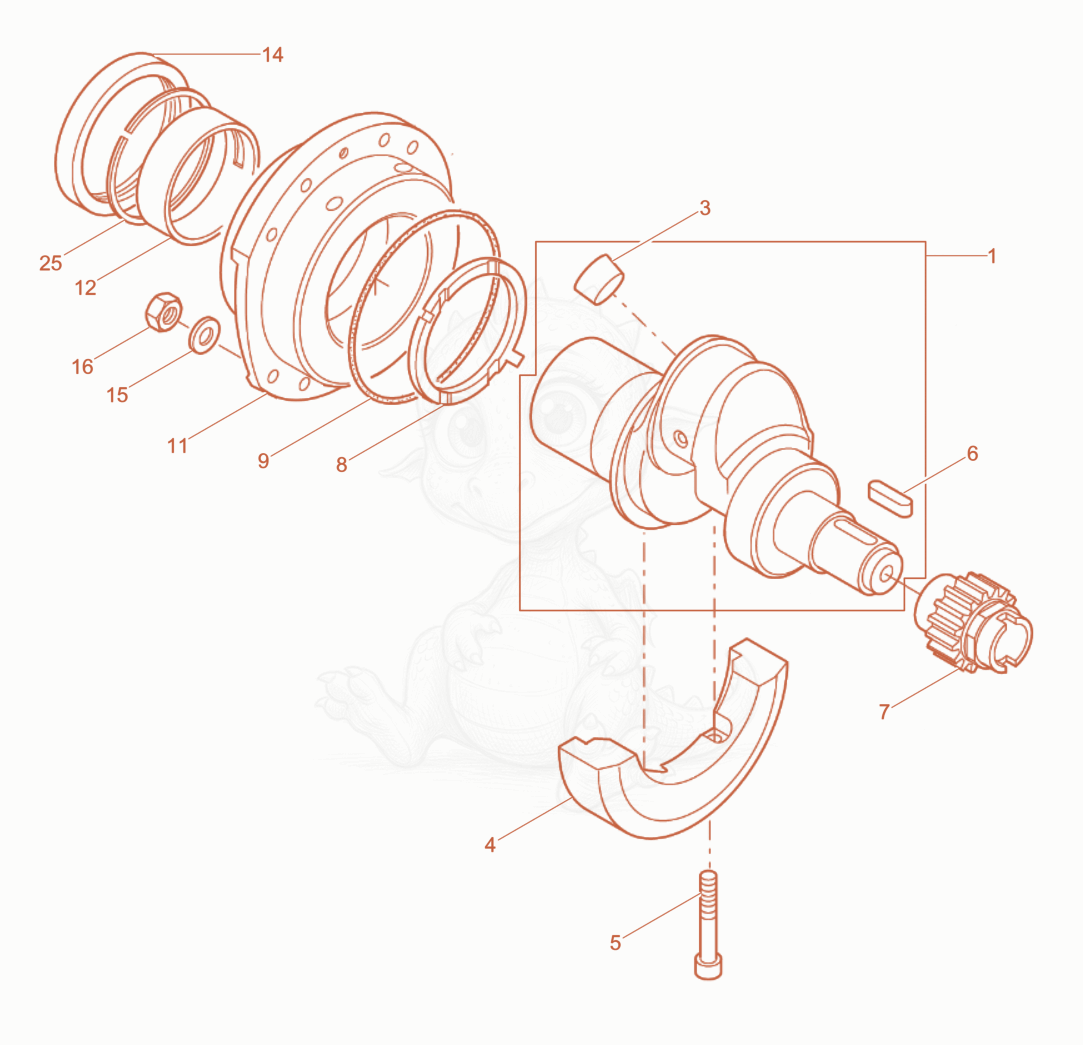

RD7HF Crankshaft, Bearing flange Diagram

Exploded parts diagram of the Crankshaft, Bearing flange of a Wacker Neuson RD7HF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000226580
    $817.76
    Crankshaft - 5000226580×1
  • 35000202451
    $8.01
    PLUG-22 - 5000202451×1
  • 45000207789Not stocked
    Counterweight×1
  • 55000226596
    $8.06
    SCREW-HD,M8 X 40 - 5000226596×2
  • 65000094868
    $8.06
    KEY A6 X 4 X 32 - 5000094868×1
  • 75000106529
    $344.30
    Pinion - 5000106529×1
  • 85000104356
    $67.05
    PLATE-PROTECTIVE - 5000104356×1
  • 95000104357
    $14.34
    O-Ring - 5000104357×1
  • 115000104358Not stocked
    Bearing flange cpl.×1
  • 125000106636
    $232.85
    BEARING-SLIDE 0.5MM - 5000106636Unknown×1
  • 125100060763Not stocked
    Bearing×1
  • 145000104360
    $65.92
    SEAL-SHAFT,ROTARY - 5000104360×1
  • 155000202460
    $8.06
    WASHER-8.4 - 5000202460×8
  • 165000094876
    $5.53
    NUT M8 10 - 5000094876×8
  • 255000125884
    $11.94
    Retaining ring - 5000125884×1
