RD7Hfb

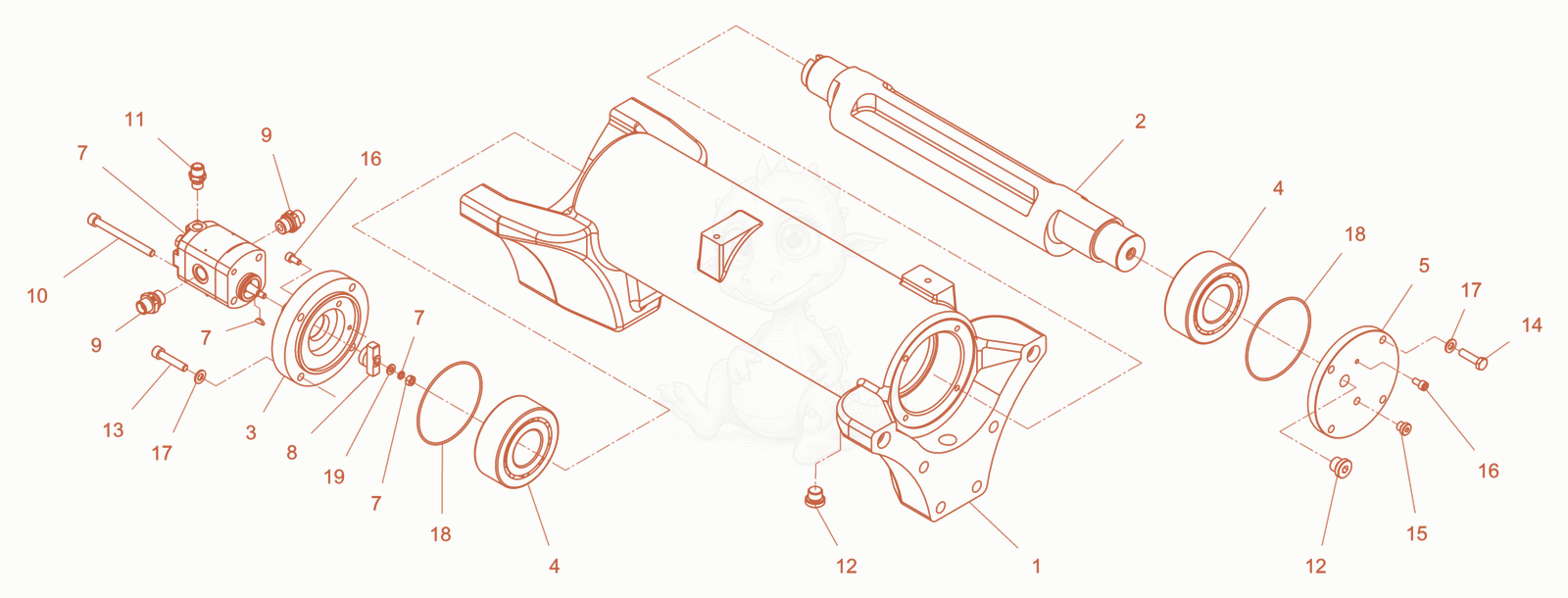

RD7HFB Exciter cpl. Diagram
- Exciter housing - 5100006781×1
- Shaft - 5100006785×1
- Flange - 5100006788×1
- Spherical roller bearing - 5100006789×2
- Cover - 5100006787×1
- Hydraulic motor - 5100006797×1
- Gasket set - 5100006904×1
- Clutch - 5100006783×1
- Male stud connector - 5100006572×2
- Cyl. Head screw - 5100006614×2
- Male stud connector - 5100006845×1
- Plug - 5100006662×2
- Cyl. Head screw - 5100006617×4
- Hexhead screw - 5100006541×4
- Plug - 5100006628×1
- Cyl. Head screw - 5100006723×2
- Washer - 5100006553×8
- O-ring 98x2 - 5100006786×2
- Washer - 5100006546×1
