RD7YE Upper Frame cpl. Diagram

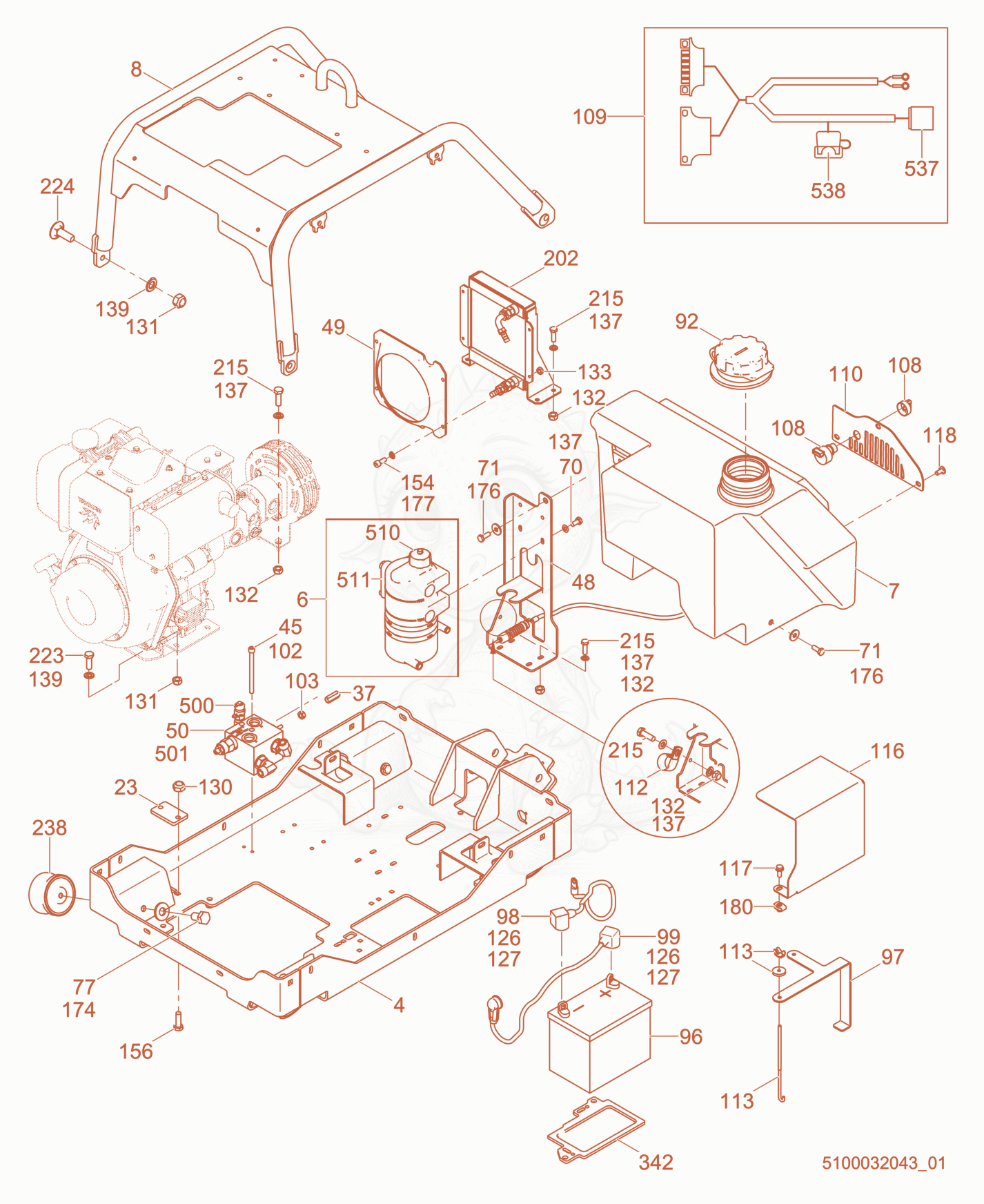

Exploded parts diagram of the Upper Frame cpl. of a Wacker Neuson RD7YE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45100027391
    $1,392.17
    FRAME-UPPER WELDMENT YANMAR P-5000112006 - 5100027391×1
  • 65100046197
    $577.04
    TANK-CYCLONE - 5100046197×1
  • 75200011121Not stocked
    Water tank×1
  • 85100027392
    $546.41
    CAGE-ROLL WELDMENT P-5000176420 - 5100027392×1
  • 235200019837Not stocked
    Plate×2
  • 375200013821Not stocked
    Coupling×1
  • 455200021852Not stocked
    Socket head screw×2
  • 485100029092
    $57.22
    BRACKET-HYD CYCLONE TANK P-5000176420 - 5100029092×1
  • 495200013843Not stocked
    Shroud×1
  • 505200015008Not stocked
    Hydraulic Manifold×1
  • 705000012361
    $0.23
    SCREW M8 X 16 HX.HD. - 5000012361×4
  • 715000012362
    $0.40
    SCREW M8 X 20 HX.HD. - 5000012362×5
  • 775000012368
    $0.52
    SCREW M12 X 20 HX.HD. - 5000012368×4
  • 925100030251
    $32.37
    CAP-WATER TANK - 5100030251×1
  • 965000118088
    $172.05
    BATTERY-340 CCA - 5000118088×1
  • 975200017428Not stocked
    Battery bracket×1
  • 985200020697Not stocked
    Negative battery cable×1
  • 995100028188
    $37.06
    CABLE-BATTERY,POS,RD7Y - 5100028188×1
  • 1025000025633
    $0.06
    NUT-LOCK 1/4-20,HEX,NYLON INS. - 5000025633×2
  • 1035000025615Not stocked
    Nut×1
  • 1085000158782
    $96.45
    SWITCH-KEY START,3P,PCK - 5000158782×1
  • 1095100028133
    $204.36
    WIRING HARNESS,MAIN,RD7Y - 5100028133×1
  • 1105200009701
    $68.73
    BRACKET-KEY SWITCH P-5000176420 - 5200009701×1
  • 1121000062662Not stocked
    Pipe clamp×1
  • 1135000157185
    $2.92
    BOLT-J .25-8,BATTERY - 5000157185×2
  • 1165200011112Not stocked
    Battery protector×1
  • 1175000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×2
  • 1185000079363
    $0.36
    SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×3
  • 1265000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
  • 1275000111845
    $0.42
    BOLT-CARRIAGE M8X25 - 5000111845×2
  • 1305000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×4
  • 1315000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×8
  • 1325000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×13
  • 1335000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×4
  • 1375000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×22
  • 1395000010620
    $0.26
    WASHER B13 FLAT - 5000010620×12
  • 1545000011553
    $0.15
    SCREW M6 X 16 SOC.HD. - 5000011553×4
  • 1565200017517Not stocked
    Carriage bolt×4
  • 1745000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×4
  • 1765000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×5
  • 1775000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×4
  • 1805200002421
    $0.99
    NUT-CLIP,M8 X 1/4 THK - 5200002421×2
  • 2025200011449Not stocked
    Oil cooler×1
  • 2155000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×11
  • 2235000011422
    $0.84
    SCREW M12 X 35 HX.HD. - 5000011422×4
  • 2245200016002Not stocked
    Carriage bolt×4
  • 2385002004814
    $74.83
    SHOCKMOUNT 100 X 58-45SH,FRM C - 5002004814×4
  • 3425200017205Not stocked
    Spacer×1
  • 5005000182738
    $62.79
    FITTING-TEST M16 X 2 7/16-20 UNF - 5000182738×1
  • 5015100018765
    $7.02
    Kit-Seal Replacement - 5100018765×1
  • 5105100021564
    $29.70
    CAP-RESERVOIR - 5100021564×1
  • 5115100047178
    $36.83
    SIGHTGLASS - 5100047178×1
  • 5375200002190
    $44.94
    Alarm-Tower - 5200002190×1
  • 5385000077219
    $0.54
    FUSE 15AMP,BLADE TYPE - 5000077219×1
