RS600 Roller

RS600 Frame cpl. Diagram

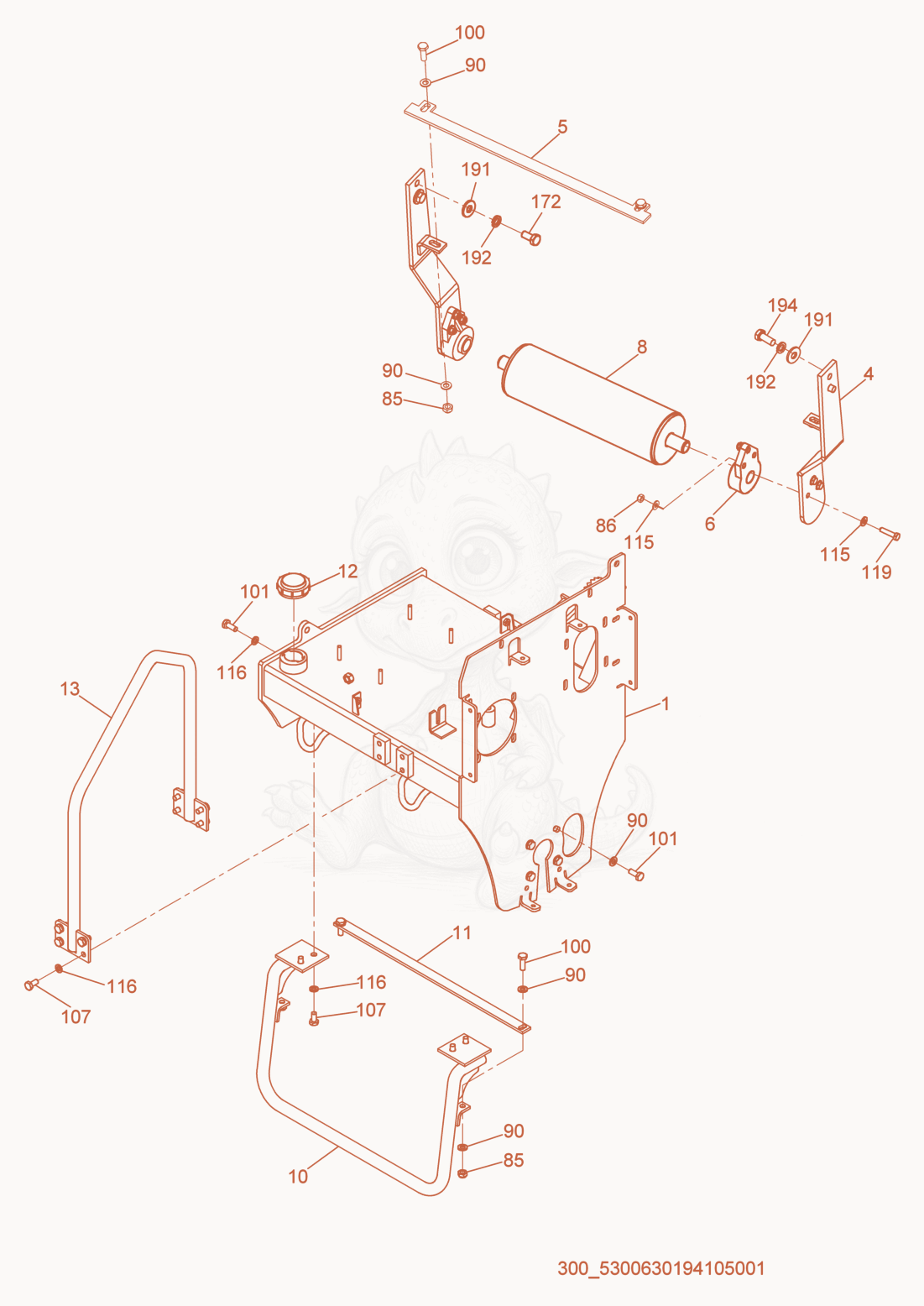

Exploded parts diagram of the Frame cpl. of a Wacker Neuson RS600, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000405489
    $1,037.71
    ASM_Frame, Weldment - 5000405489×1
  • 45000404967Not stocked
    Bracket×2
  • 55000405491Not stocked
    Scraper×1
  • 65000402455
    $131.74
    Bearing-Flange,UCFK205 - 5000402455×2
  • 85000405493Not stocked
    Roller support×1
  • 105000400568
    $221.51
    Front Support Weldment - 5000400568×1
  • 115000400703
    $87.88
    Scraper-Front - 5000400703×1
  • 125000073167
    $52.37
    CAP-WATER TANK - 5000073167×1
  • 135000400560
    $88.00
    Lift Weldment - 5000400560×1
  • 855000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×4
  • 865000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×6
  • 905000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×8
  • 1005000011439
    $0.23
    SCREW M10 X 30 HX.HD - 5000011439×4
  • 1015000011440
    $0.36
    SCREW M10 X 25 HX.HD. - 5000011440×9
  • 1075000012364
    $0.44
    SCREW M10 X 20 HX.HD. - 5000012364×12
  • 1155000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×12
  • 1165000407043
    $0.95
    Washer Lock DIN6796,Zinc Mechanical - 5000407043×13
  • 1195000011340
    $0.50
    SCREW M8 X 35 HX.HD. - 5000011340×6
  • 1725000406582Not stocked
    Hexagonal head cap screw×12
  • 1915000026025
    $4.21
    WASHER-STEEL,FLAT - 5000026025×4
  • 1925000012648
    $0.14
    WASHER-LOCK B12 - 5000012648×4
  • 1945000011422
    $0.84
    SCREW M12 X 35 HX.HD. - 5000011422×2
