RS600 Roller

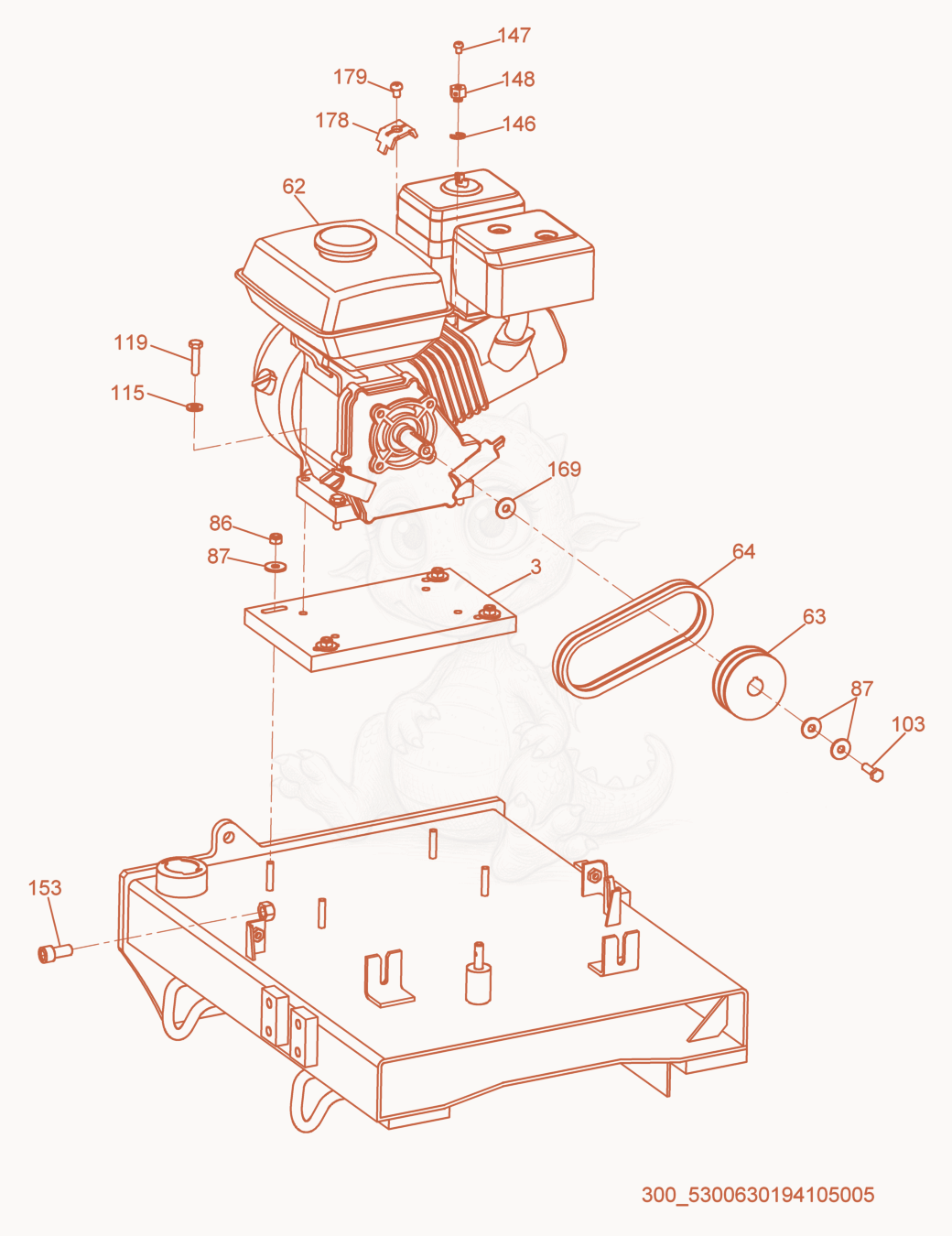

RS600 Engine Compartment Diagram

Exploded parts diagram of the Engine Compartment of a Wacker Neuson RS600, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35000400530
    $185.91
    Plate-Engine - 5000400530×1
  • 625000400893
    $1,481.89
    ENGINE-ROBIN EX17 - 5000400893×1
  • 635000400655
    $59.28
    Pulley - 5000400655×1
  • 645000400656
    $14.54
    V-Belt,SPZ485Lw - 5000400656×2
  • 865000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 875000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×6
  • 1035000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×1
  • 1155000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×4
  • 1195000011340
    $0.50
    SCREW M8 X 35 HX.HD. - 5000011340×4
  • 1465000056041
    $0.36
    RET.RING-EXT 5MM,E-TYPE - 5000056041×1
  • 1475000402369
    $9.08
    SCREW-PAN 4 X 6 - 5000402369×1
  • 1485000402370
    $13.43
    HOLDER-WIRE - 5000402370×1
  • 1535000011530Not stocked
    Cheese head screw×1
  • 1695000010616
    $2.02
    WASHER B21 FLAT - 5000010616×1
  • 1785000402428Not stocked
    Cable holder×1
  • 1795000402429Not stocked
    Pan head screw×1
