RS800H-ROLLER,SINGLE DRUM

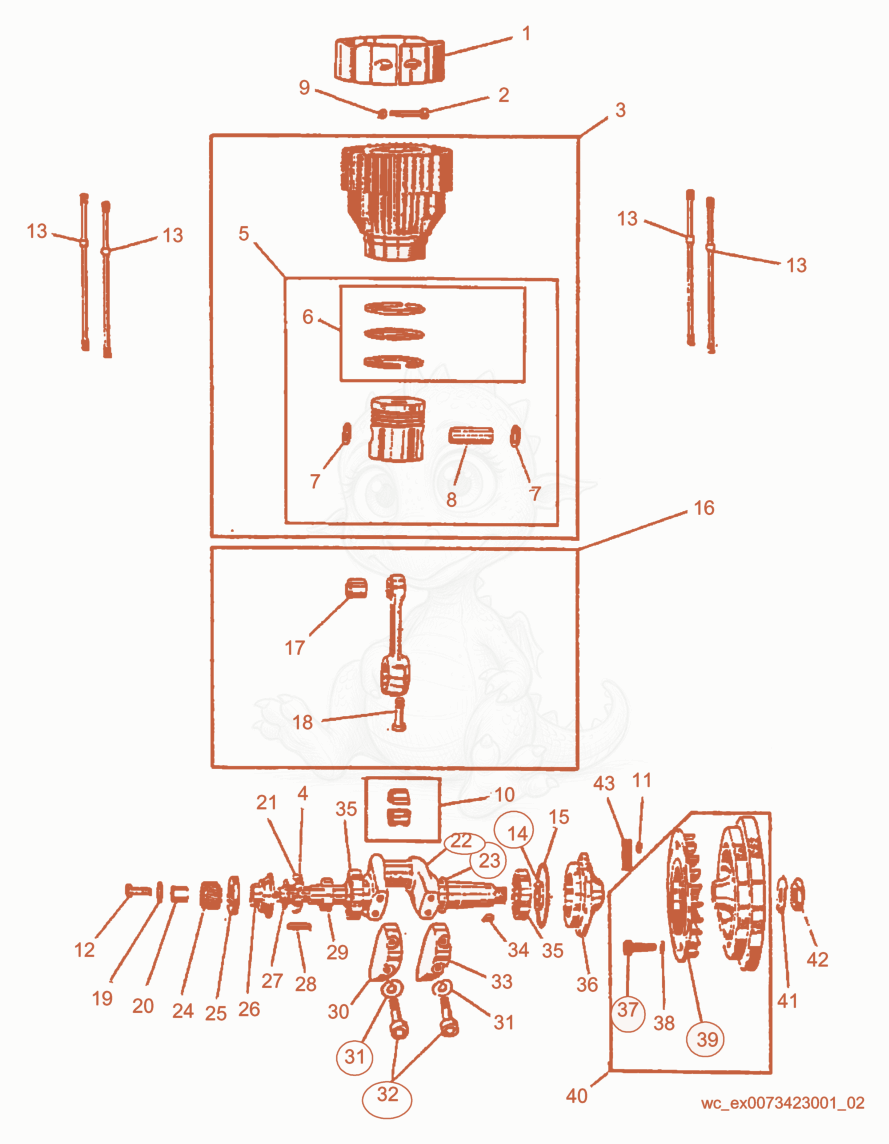

RS800H Drive cpl. Diagram
- Cover - 5004301160×1
- SET-CYLINDER W/PISTON - 5004301470×1
- HUB - 5004101950×1
- piston - 5004301121×1
- SET-PISTON RINGS,82MM X 2.0MM - 5000048019×1
- 75002003667Not stockedRetaining ring×2
- PIN-PISTON MOUNT - 5004301130×1
- 95000017312Not stockedHexagon nut×1
- BEARING-JOURNAL,44MM ID - 5004103060×1
- NUT M8 8,HEX - 5000010882×8
- SCREW M12 X 25 SOC.HD. - 5000013777×1
- STUD - 5004101340×4
- SEAL-SHAFT 40 X 52 X 7/8,5B - 5002006729×1
- O-RING 100 X 4-70 DEG. SH - 5004101190×1
- CONNECTING ROD COMPLETE - 5004301490×1
- BUSHING - 5004301140×1
- SCREW M10 X 48 SOC.HD. - 5001401006×2
- BALL-12MMIII - 5000014369×8
- Crankshaft - 5004101012×1
- SHIM-0.1MM - 5000014761×1
- SHIM-0.2MM - 5000014762×1
- SHIM-0.3MM - 5000014763×1
- SHIM-0.4MM - 5000014764×1
- GEAR - 5004101081×1
- WASHER - 5004101961×1
- SLEEVE - 5004101941×1
- Washer - 5004101000×1
- KEY A4 X 6 X 40 - 5000013756×1
- SPACER - 5004301480×1
- WASHER-LOCK B10 - 5000010644×4
- SCREW M10 X 50 10.9,SOC - 5000013354×4
- KEY-WOODRUFF 4 X 6.5 - 5000010386×1
- BEARING-CYL.ROLLER,NJ2208 - 5002004036×2
- FLANGE - 5004101170×1
- SCREW M8 X 35 SOC.HD. - 5000023619×4
- RING-ENGINE COOLING FAN - 5000023618×1
- FLYWHEEL - 5000023617×1
- PLATE - 5004101160×1
- NUT M30 HEX.JAM - 5000010822×1
