RS800H-ROLLER,SINGLE DRUM

RS800H Crankcase cpl. Diagram

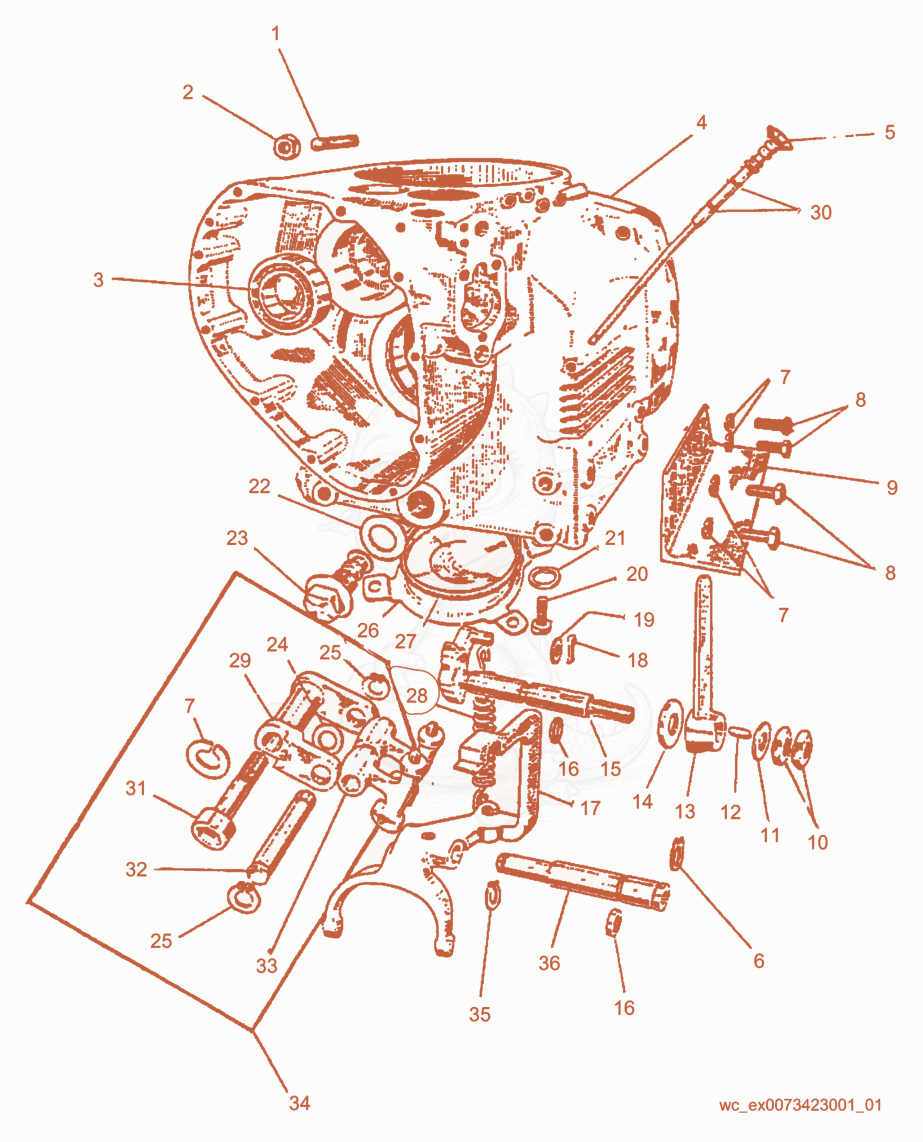

Exploded parts diagram of the Crankcase cpl. of a Wacker Neuson RS800H, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

25000010805
$0.06
NUT-M8,JAM - 5000010805×1
35002006778
$63.62
BEARING-RADIAL BALL,6206 - 5002006778×1
45004302010
$1,325.80
CRANKCASE-COMPLETE - 5004302010×1
55004102200
$36.66
Dipstick - 5004102200×1
65002004278Not stocked
Retaining ring×1
75000010644
$0.04
WASHER-LOCK B10 - 5000010644×9
85000011439
$0.23
SCREW M10 X 30 HX.HD - 5000011439×8
95000034836
$101.00
BRACKET-ENGINE MOUNT - 5000034836×2
105000010806
$0.20
NUT M10 HEX,JAM - 5000010806×2
115000010621
$0.13
WASHER B10.5 FLAT - 5000010621×1
135004102140
$107.98
LEVER - 5004102140×1
155004102100
$159.51
Shaft - 5004102100×1
165004101560
$7.02
O-RING 8 X 2-70 DEG. SH - 5004101560×2
175004102151
$278.08
LEVER-GOVERNOR CONTROL - 5004102151×1
185000012367Not stocked
Hexagonal head cap screw×1
195004102190
$35.06
Washer - 5004102190×1
205000012361
$0.23
SCREW M8 X 16 HX.HD. - 5000012361×4
215000012397
$0.10
WASHER-LOCK B8 - 5000012397×4
225000013446
$8.06
SEAL-RING 21 X 26 - 5000013446×1
235004102290
$41.81
PLUG R1/2 ,WITH MAGNET - 5004102290×1
245004102050
$1.73
SHIM-0.1MM - 5004102050×1
245000014816
$2.20
SHIM-0.5MM - 5000014816×1
255002001036
$8.06
RET.RING-EXT 12MMX1MM, - 5002001036×2
265004102261
$73.10
COVER - 5004102261×1
275004101190
$8.01
O-RING 100 X 4-70 DEG. SH - 5004101190×1
285004102181
$19.49
SPRING-GOVERNOR CONTROL,2.6MM - 5004102181×1
305004102230
$7.02
O-RING 4.5 X 1.8-70 Sh - 5004102230×2
315001401006
$16.25
SCREW M10 X 48 SOC.HD. - 5001401006×1
335004102040
$140.38
LEVER - 5004102040×2
355002006072
$8.06
RET.RING-EXT 8MMX.8MM, - 5002006072×1
365004102160
$113.98
SHAFT - 5004102160×1
